Using EZware-5000 87
1010-1007, Rev. 10

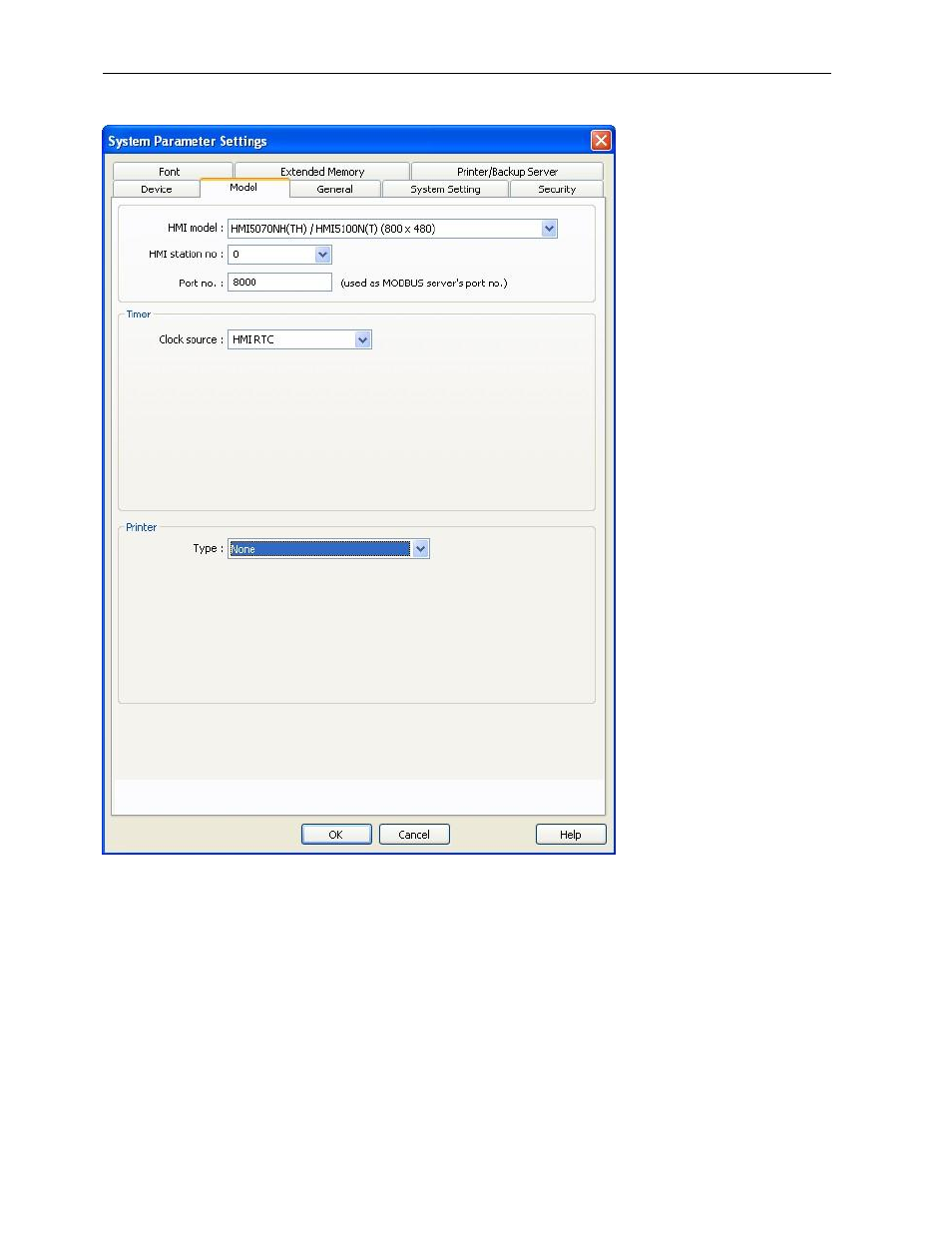

To configure the Model tab settings:
1. HMI model: Select the HMI model that you are programming.
2. HMI station no.: When multiple HMIs are used, this selects the unique network address of the HMI. See
Controller Information Sheet for more information.
3. Port No: Assign a TCP/IP port so that another HMI can access this port. For more information, select Help >
Help Topics > How Do I…Setup TCP Port Forwarding With the HMI.
4. Clock Source: Select internal HMI RTC or External Device.
5. Printer Type: Select type of printer to be connected locally to the HMIs serial port or USB port.
