HMI Local Setup 11
1010-1007, Rev. 10

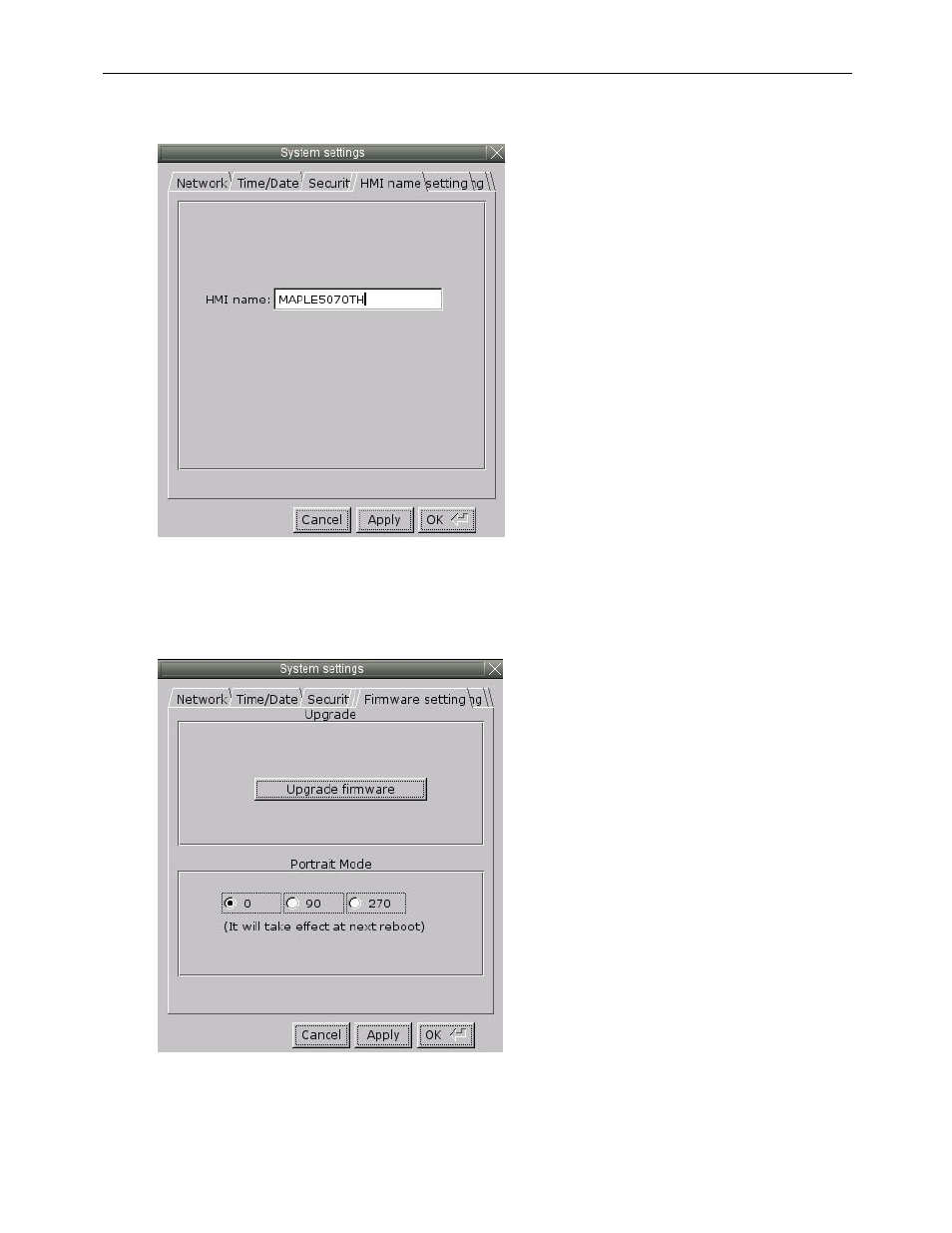

13. Click on the HMI name tab to give the HMI a unique name. This name can be used to address the HMI for
downloading over Ethernet.
 Downloading by name is supported only on the HMI5070TH and HMI5100TH, with Firmware version
20091002 or later.
14. Click the Firmware setting tab to access the Upgrade firmware option and the Portrait Mode settings (for
models with the Portrait feature).
Upgrade Firmware: Click this button to upgrade the firmware in the HMI from a USB flash drive or SD card.
Portrait Mode: Select the orientation of the display on the HMI when a project is configured for Portrait
Mode (selected when a new project is created).
