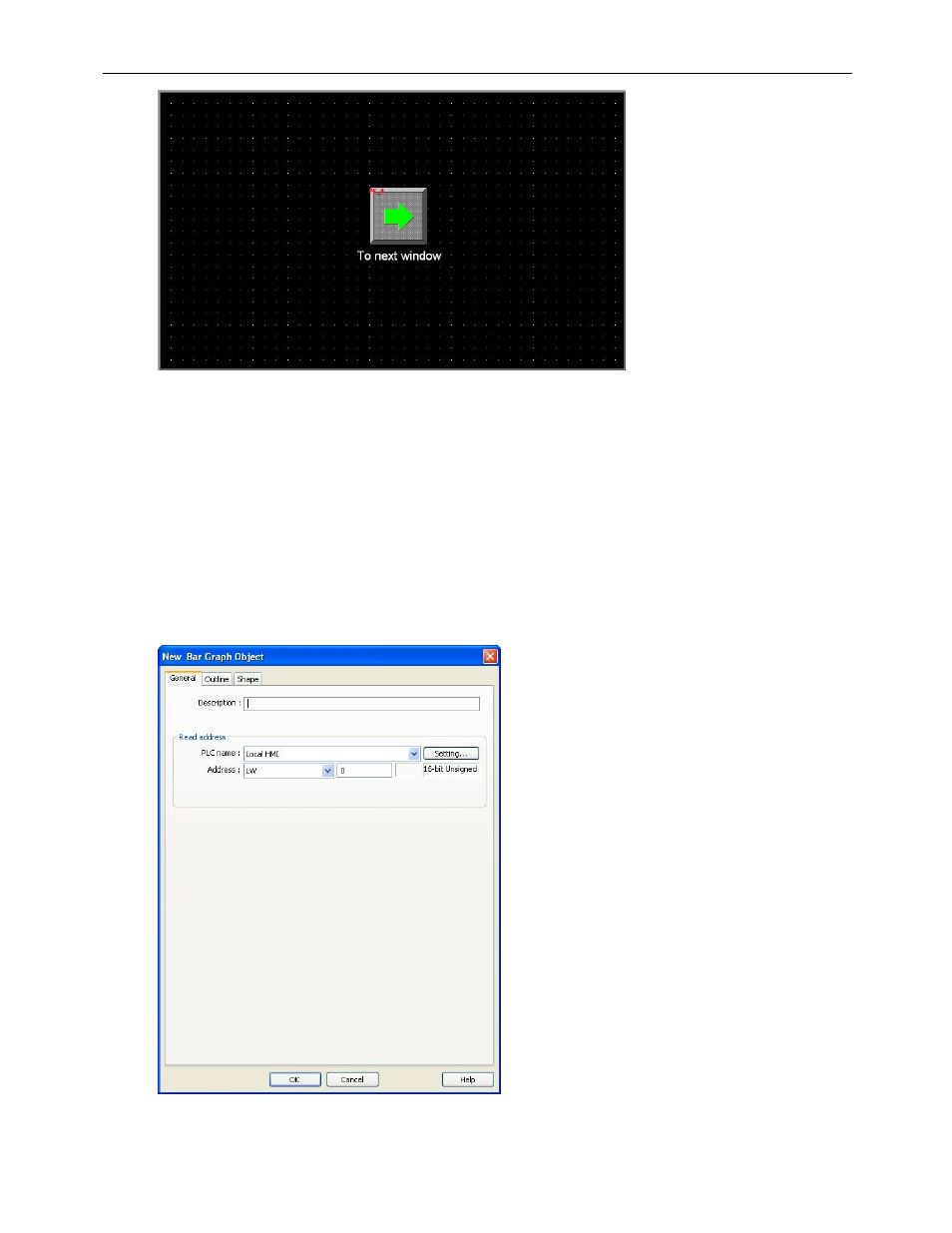

Now let’s create a bargraph on Window 11. We will use the bargraph to indicate the level of a tank. We will create
pushbuttons to increase or decrease the level of the tank by turning a pump on and off.
To open Window 11, select Window > Open Window and double-click Window 11 in the list. Alternatively, double-
click on Window 11 in the Windows Option list on the left side of the EasyBuilder screen.
 To create a Bargraph:
1. In the top menu bar in EasyBuilder 5000, click Objects > Bar Graph (or select the Bargraph icon in the Object
2 Toolbar).
2. In the Bar Graph Properties General tab, select LW0 for the Read address. Leave the numeric format set to
the default 16-bit unsigned.
