Connect the HMI to the PLC or Controller 21
1010-1007, Rev. 10

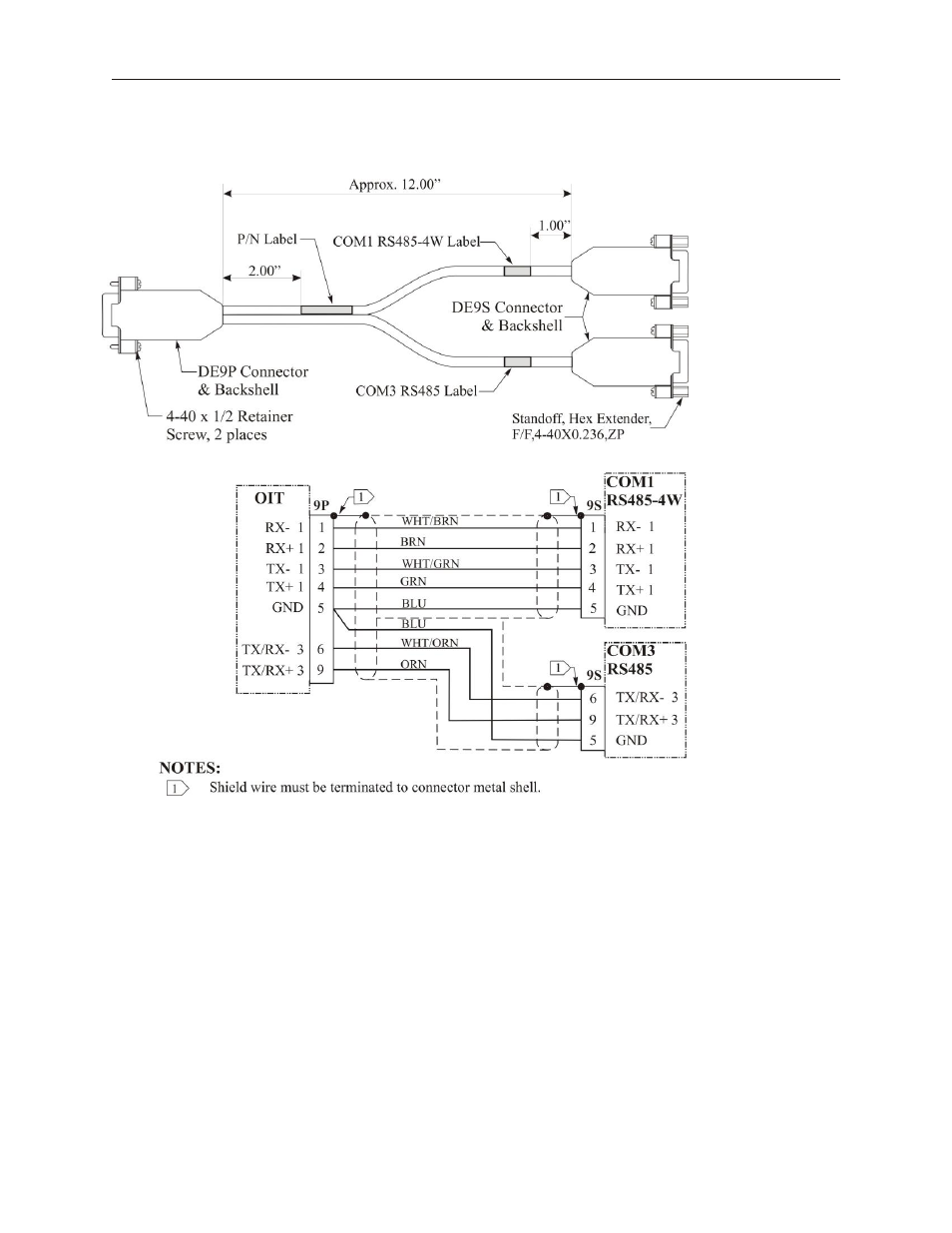

Scenario 2 – One RS485 2 Wire PLC/Controller with COM3 configured for RS485-2 Wire and one RS485 4 Wire
PLC/Controller with COM1 configured for RS485-4 Wire.
