Maple Systems HMI5000 Series - Manual (Page 193)

Security 187
1010-1007, Rev. 10
System Passwords
The System Setup Toolbar in the HMI has the option of changing several passwords from their default setting of
111111 to another number.

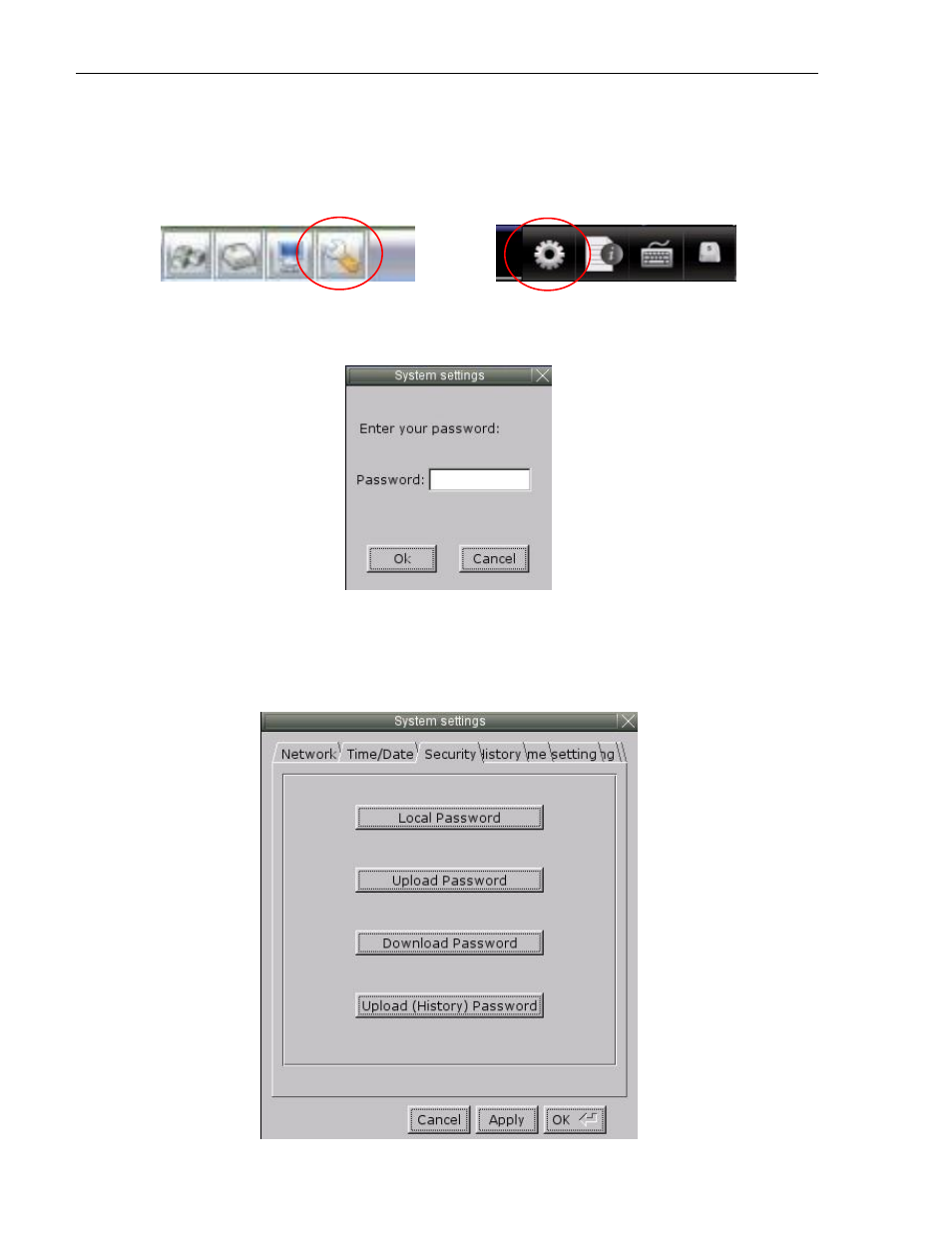

Open the System Setup Toolbar and click the System Settings icon.
Older Models Newer Models
A dialog will be displayed requesting the Local password. The default password is 111111.
You may have to move windows around a bit to gain access to the virtual keyboard. You may also have to click
inside the password field again.
Once the correct password has been entered, the System Settings dialog is displayed. Click on the Security tab to
display the security settings dialog. Here, you can select and modify your system passwords.
