EZware5000 Series Programming Manual
1010-1007, Rev. 10
Connecting to COM1 and COM3 on Port A
Maple Systems HMI5000 Series family of HMIs is capable of connecting to multiple PLC/controllers. If you choose to
take advantage of this feature, and one of your PLC/controllers uses either RS485-4 Wire or RS485-2 Wire
communication, one of four splitters will be needed.

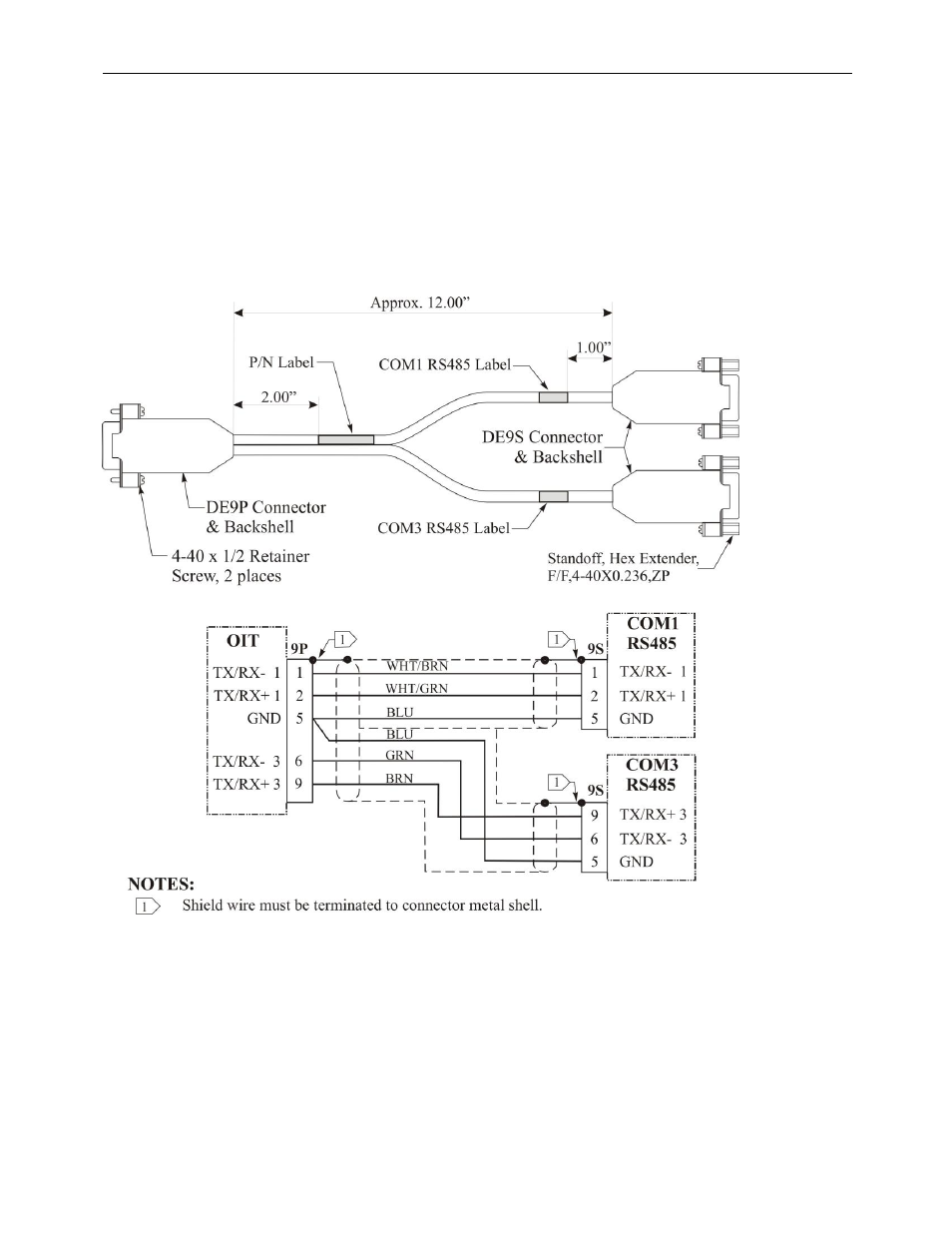

Scenario 1 – Two RS485 2 Wire PLC/Controllers, with COM1 configured for RS485-2 Wire and COM3 configured for
RS485-2 Wire.
