Maple Systems HMI5000 Series - Manual (Page 168)

162 EZware5000 Series Programming Manual
1010-1007, Rev. 10

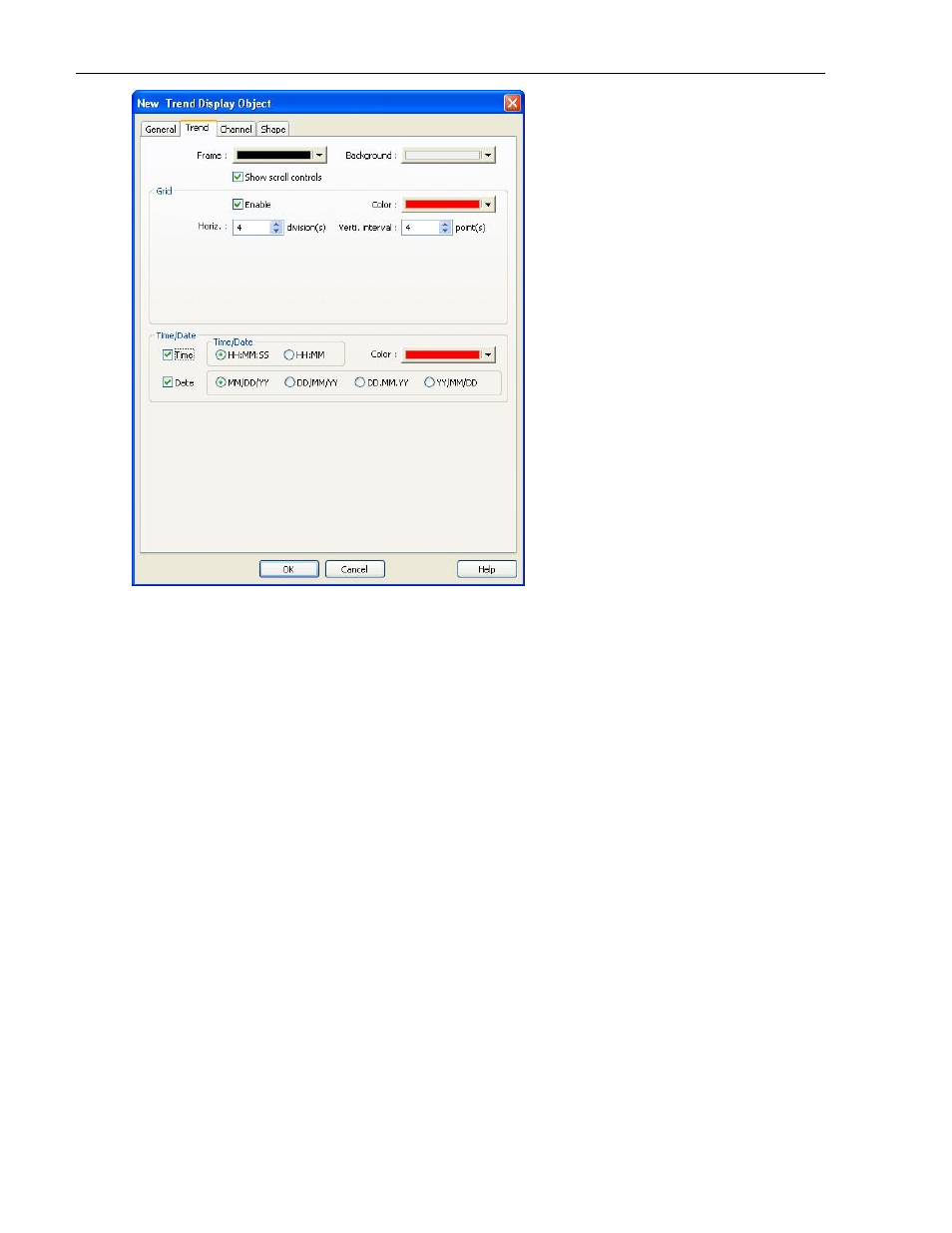

9. Select the Frame color and the Background color for the trend from the drop down menus.
10. Check the Enable checkbox in the Grid section if you would like the trend to display a grid, and then
configure the X and Y axis of the grid from the scroll boxes.
11. Check the Time and Date checkboxes in the Time/Date section to display the current time and date on the
Trend Display, and then select the format in which you'd like the time and date displayed.
12. Click on the Channel tab to display the Channel dialog box.
