HMI Local Setup 13
1010-1007, Rev. 10
The Popup download window option allows you to turn on or off whether the Download dialog window
appears on the screen when a USB flash drive is connected to the USB port on the HMI. The Restart after
download/upload option causes the HMI to reboot after a download or upload from a USB flash drive or SD
card, when selected.

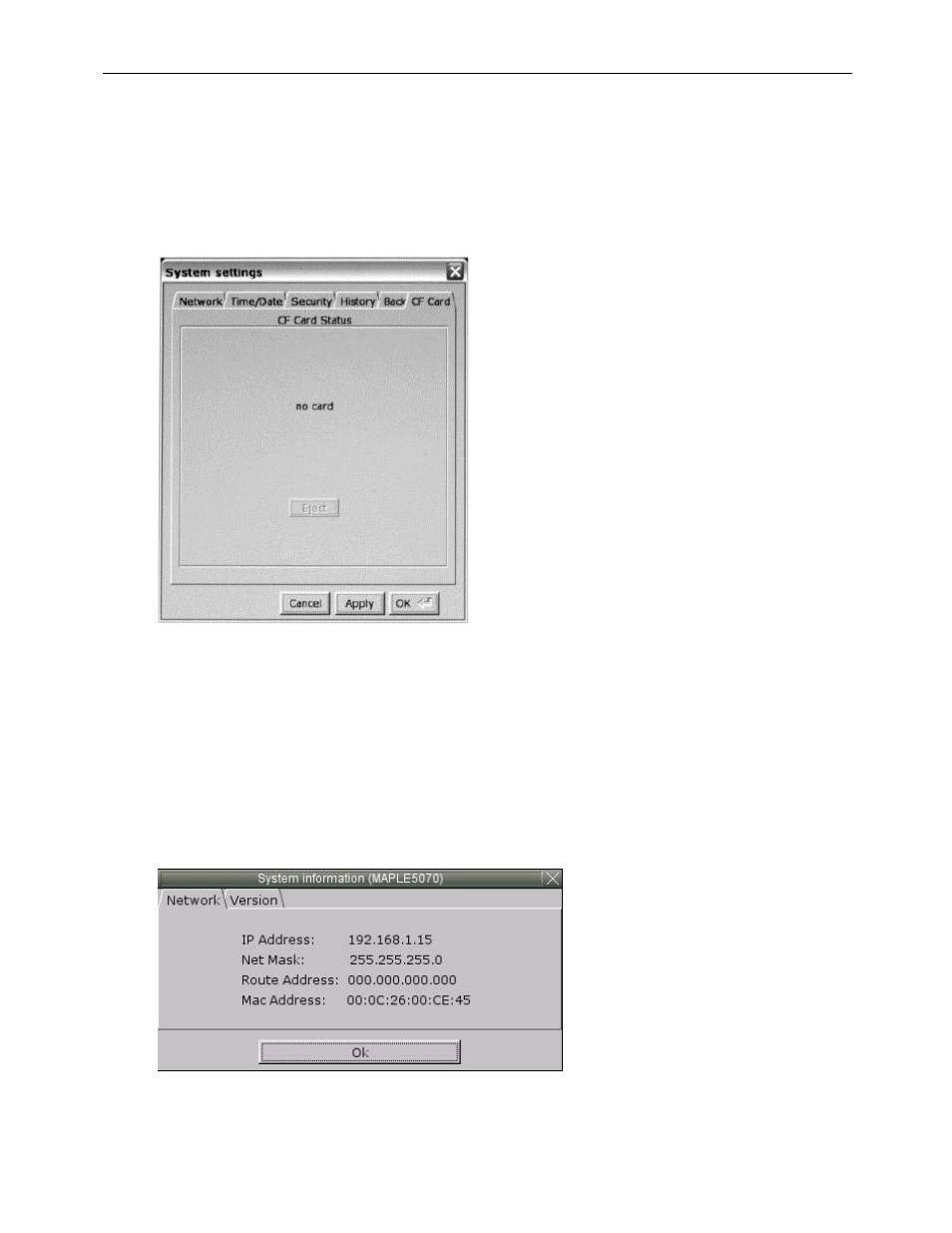

17. Click on the CF Card tab to display the CF card dialog (only CF Card equipped models). The CF Card tab
displays information about the Compact Flash module. If no CF card is present, the dialog will show no card.
Otherwise, volume data about the CF card is displayed.
The Eject button will cause the HMI to ignore the CF device. It will not actually eject the card from the HMI. If the
Eject button is pressed, the CF card must be removed and re-inserted before the HMI will recognize it again. Note that
USB devices are not displayed on this tab.
Viewing System Information

To view system information:
1. Open the System Setup Toolbar as described above, and click the System Information icon. A dialog will be
displayed with two tabs.
2. Click on the Network tab to display the current IP settings.
