Creating a Sample Project 45
1010-1007, Rev. 10
2. Use the drop-down menus to locate the project folder in EZ5000.
3. In the File name text box, type Sample_Project.mtp.
4. Click Save. The file is saved onto your computer hard drive and the main screen of EasyBuilder reappears.

Compiling your first project

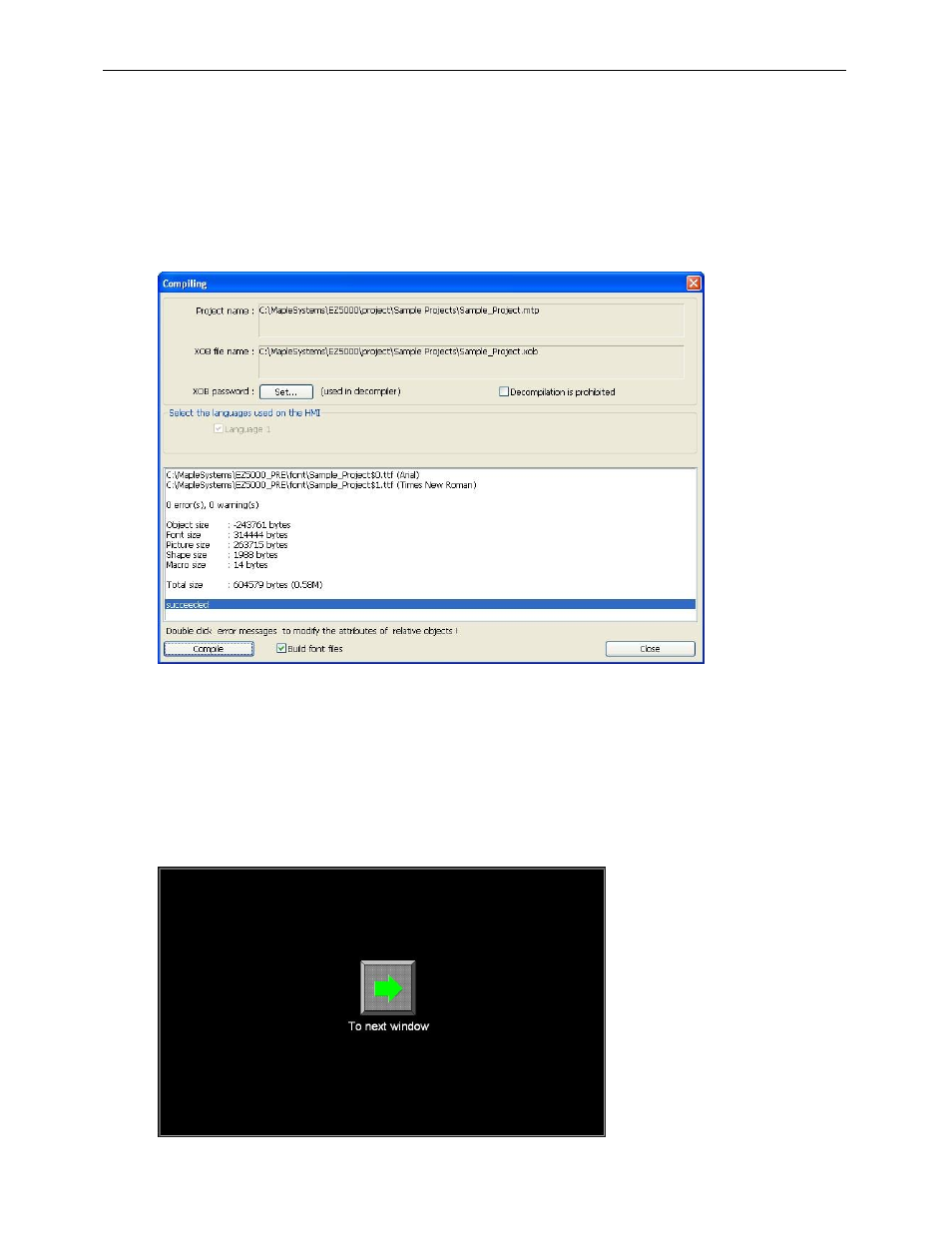

1. From the Tools menu, click Compile. The Compiling dialog box appears.
2. Click the Compile button. EasyBuilder will compile your project and display error results.
3. If no errors occur, click Close. The main screen of EasyBuilder reappears. If errors have occurred, repeat the
steps in the “Creating a Sample Project” section.
 Simulating your first project
1. Click Tools in the top menu bar and select Off-line Simulation (Ctrl+T) or click the Off-line Simulation icon in
the Project Toolbar. The Simulation Window will appear on the screen.
