Maple Systems HMI5000 Series User Manual

Page 36

Text mode
Original mode

EZware5000 Series Programming Manual

1010-1007, Rev. 10

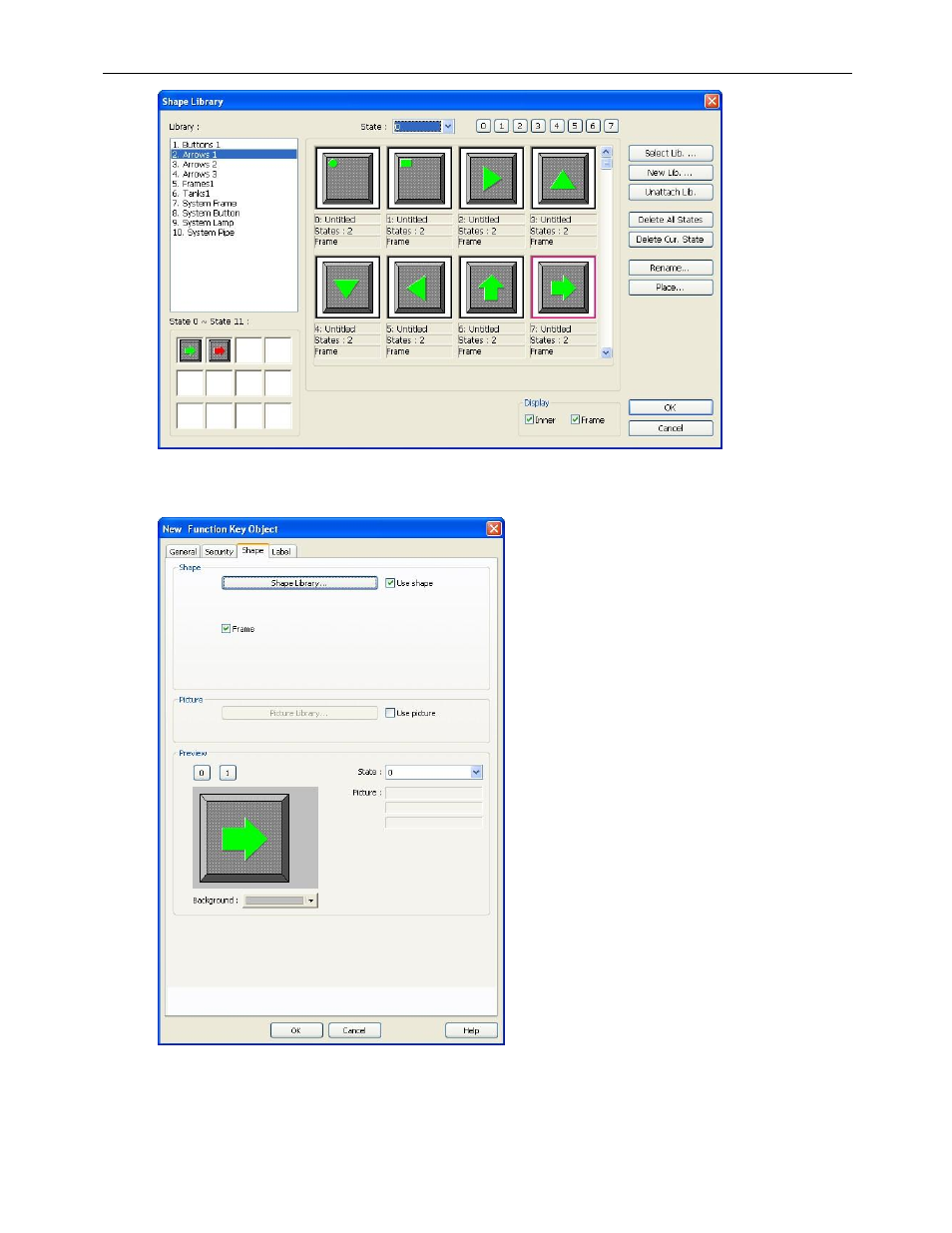

5. Select shape number 7 and click OK. The Function Key Object’s Shape tab now shows a preview of how the

function key will appear on the screen. Click OK.

6. On the main screen of EasyBuilder you will see a white rectangle outline that is attached to your cursor in the

work area. This represents the function key just created. Click to place the function key in the middle of
Window 10. You can click and drag on the control buttons around the Function Key Object to resize it.
