TRI-PHASE OPERATING™ INSTRUCTIONS
16.14 Record Directory Printout
The TRI-PHASE™ record directory printout shows a total of 3 records stored in FLASH EEPROM memory.
Record #33 is a single-phase transformer with one test result in record. Record #34 is a single-phase
transformer with two test results in record. Record #35 is a Delta to Wye transformer with one test result in
record.
1
2
3
4
5
6
7
8
9
10

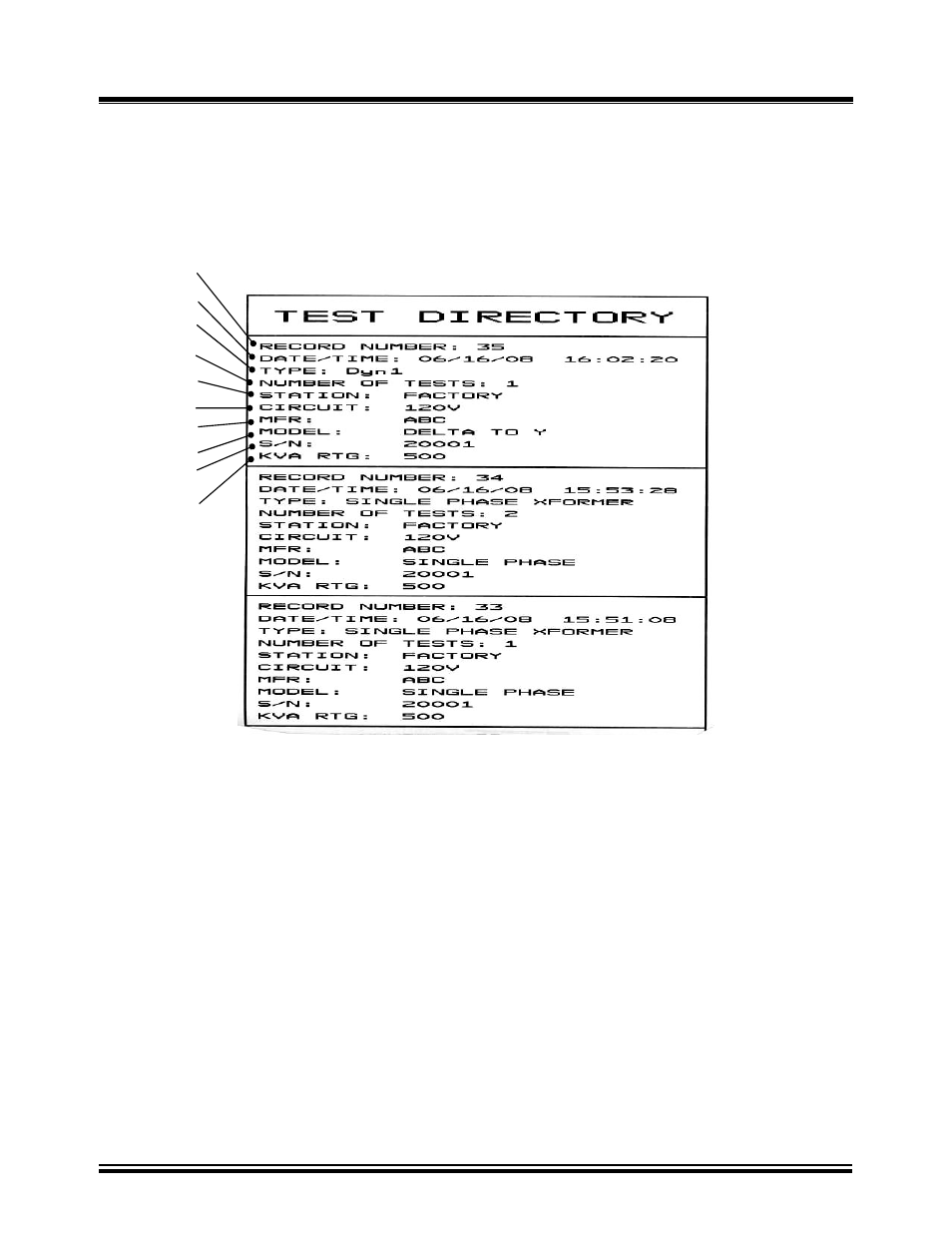

Figure 48.0 Record Directory Printout
The test results printout is explained below:
1. Record number
2. Date and time
3. Type of transformer configuration tested
4. Number of test results in record
5. Name of substation
6. Circuit voltage
7. Manufacturer of transformer
8. Model of transformer
9. Serial number of transformer
10. KVA rating of transformer
