TRI-PHASE OPERATING™ INSTRUCTIONS

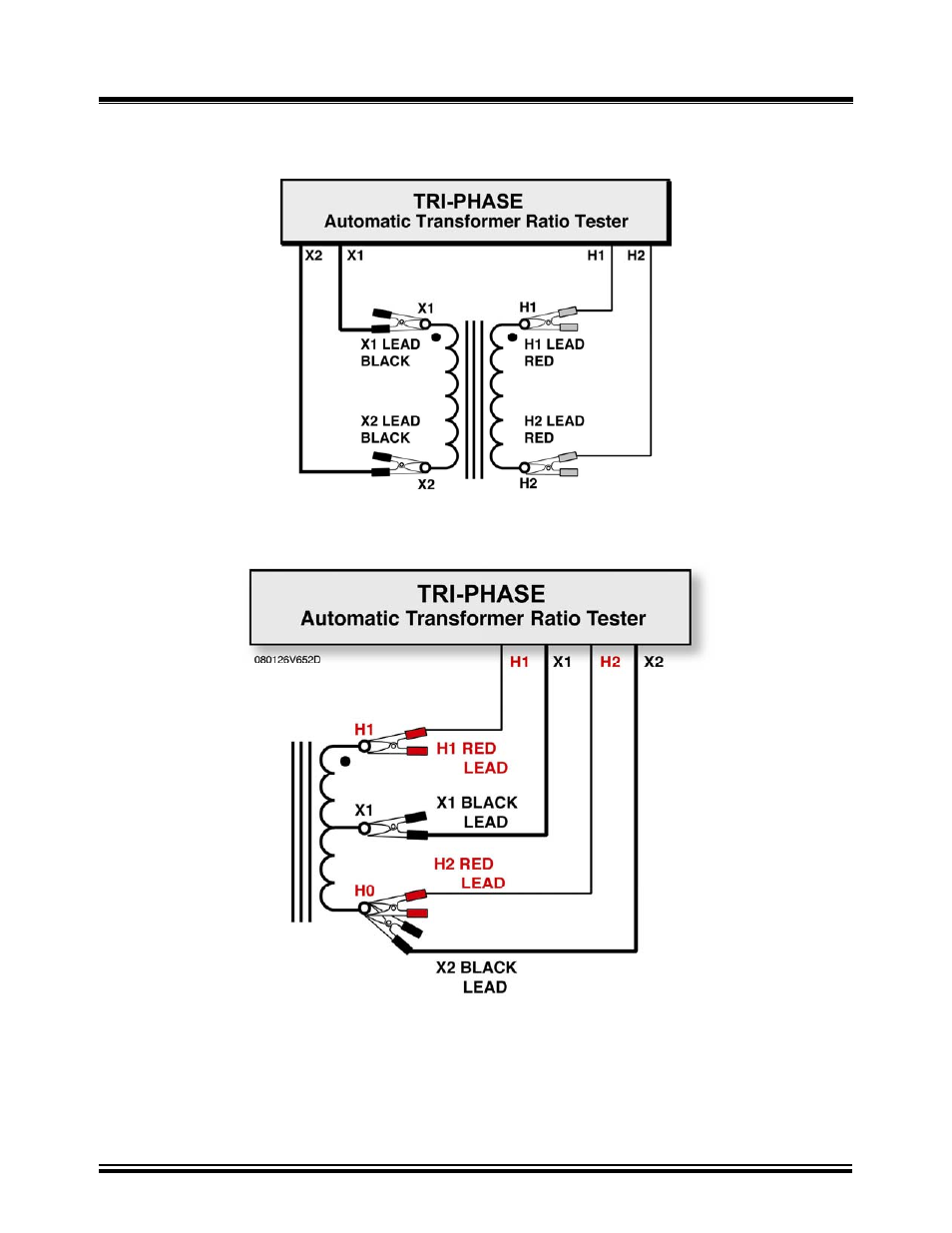

12.3 Single Phase Transformer Typical Connections

Figure 5.0 Single Phase Transformer Typical Connections

Figure 6.0 Single Phase Auto Transformer Typical Connections

22
