Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 63
Triggering Teledyne LeCroy

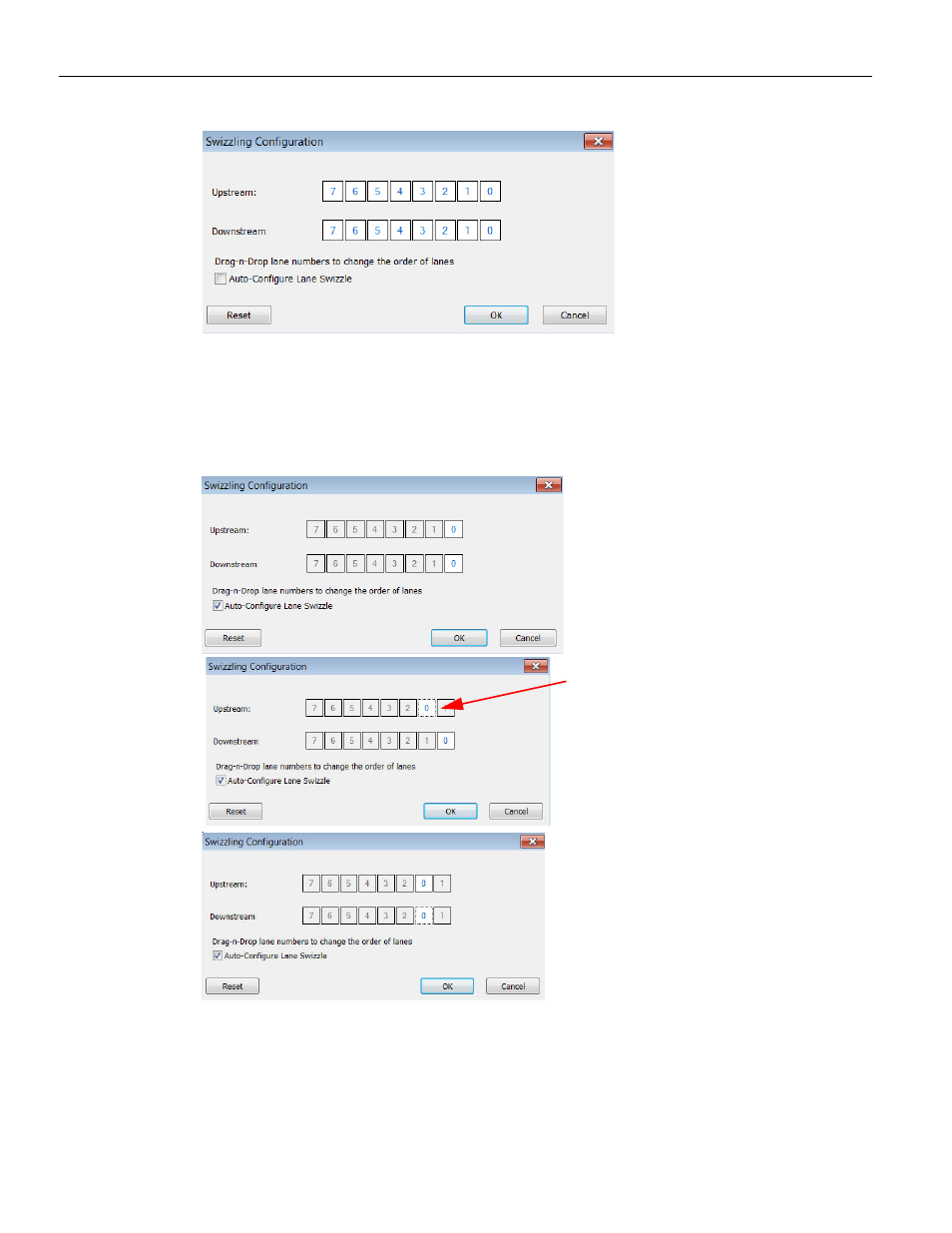

Figure 5.12: Swizzling Config Dialog
When the Auto‐Configure Lane Swizzle is checked, it is important to configure Lane 0. You
can do so by manually dragging Lane 0 to the required position (see
Figure 5.13 on
page 63 ).
Figure 5.13: Manually Configuring Lane 0 when Auto-Configure Lane Swizzle is Checked
5.15 Triggering
Triggering Options can be set in both Simple and Advanced Modes. The options in both
modes are the same, only the GUI is different where shortcuts for the events are
displayed in the Simple Mode for easy access (see
Figure 5.2 on page 53 ).
Manually moving Lane 0 to the
required position
