Teledyne LeCroy Corporation Bus Utilization
188 Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
10.4.1 Bus Utilization Pop-up Menu
You can reformat the display by right‐clicking a graph and making a selection from the
Bus Utilization pop‐up menu (see
Figure 10.13 on page 188 ).

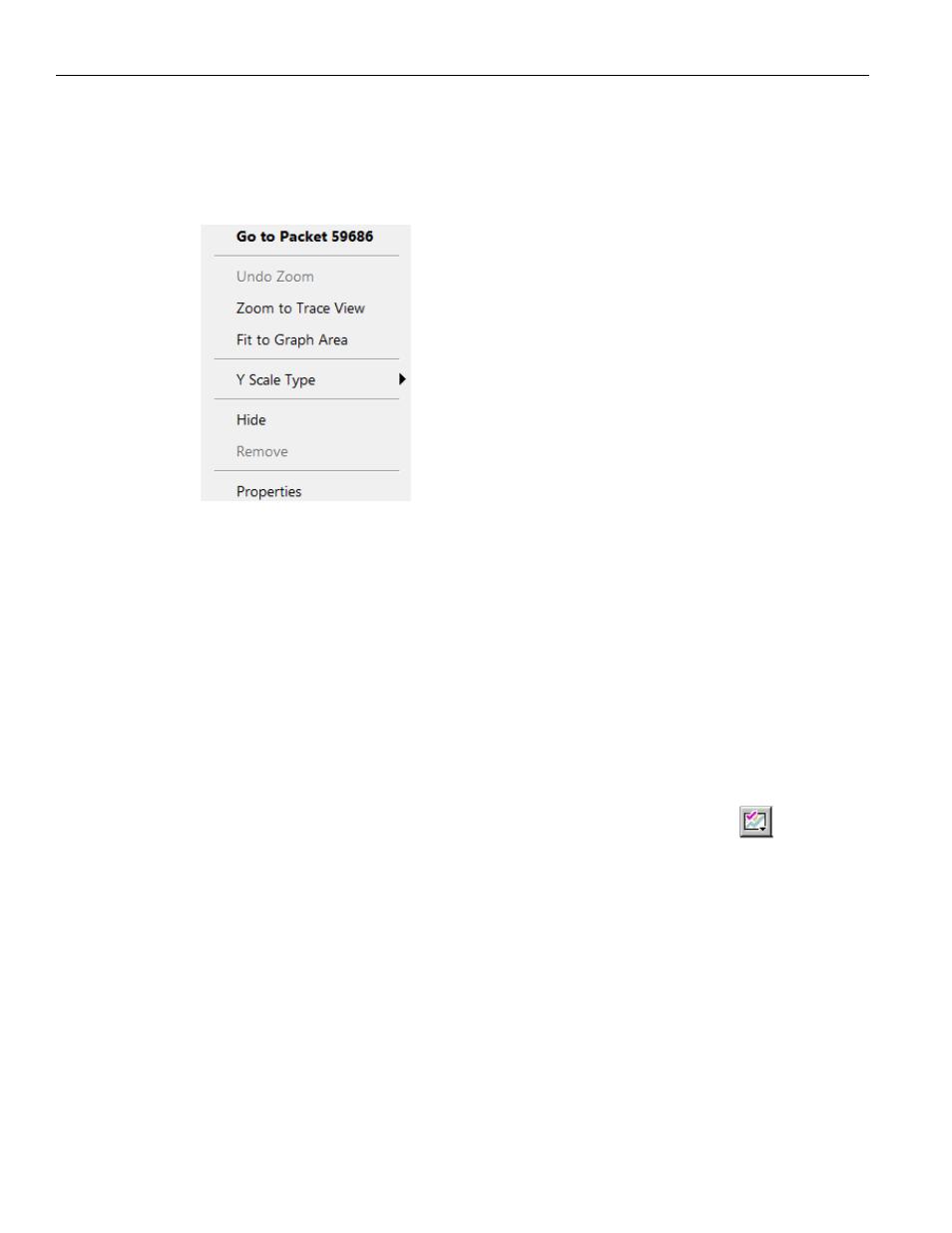

Figure 10.13: Bus Utilization Menu
Go to Packet #: Relocates the CATC Trace to the selected packet number.
Undo Zoom: If you have zoomed in, this command undoes the zoom.
Zoom to Trace View: Zooms in on graph to show traffic currently displayed in the
CATC Trace screen.
Fit to Graph Area: Redisplays graph so that the entire CATC Trace fits inside graph area.
Y Scale Type:
 Linear: Converts display to linear format
 Logarithmic: Converts display to logarithmic format
Hide: Hides the selected graph
Remove: Allows you to remove any graph that you created via the New command
Properties: Opens a dialog with options for changing the Title, Type, Appearance, and
Color of the graphs (see following screen capture).
