Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 19
Using Probes Teledyne LeCroy
Connection Procedure
To connect the Summit T3‐8 to the System Under Test (host platform or root complex
under test):
1. Connect the MidBus pods to the Analyzer using the iPass Y‐cables.
2. Connect the MidBus probe assemblies to the MidBus pods.
3. Connect the MidBus probe assemblies to the MidBus footprints on the system under
test.
4. Connect external reference clock signal to Mid‐Bus External Clock In on Mid‐Bus
probe pod, using external reference clock cable.
3.9.2 Example: Connecting the Summit T3-8 Analyzer to the Device Under Test
Using a Gen3 Multi-lead Probe for x1 and x4
Components
 1 iPass Y‐cable for x1 and x4 ( see “iPass Y‐cable” on page 17 ).
 1 Multi‐lead Probe Pod for x1 and x4

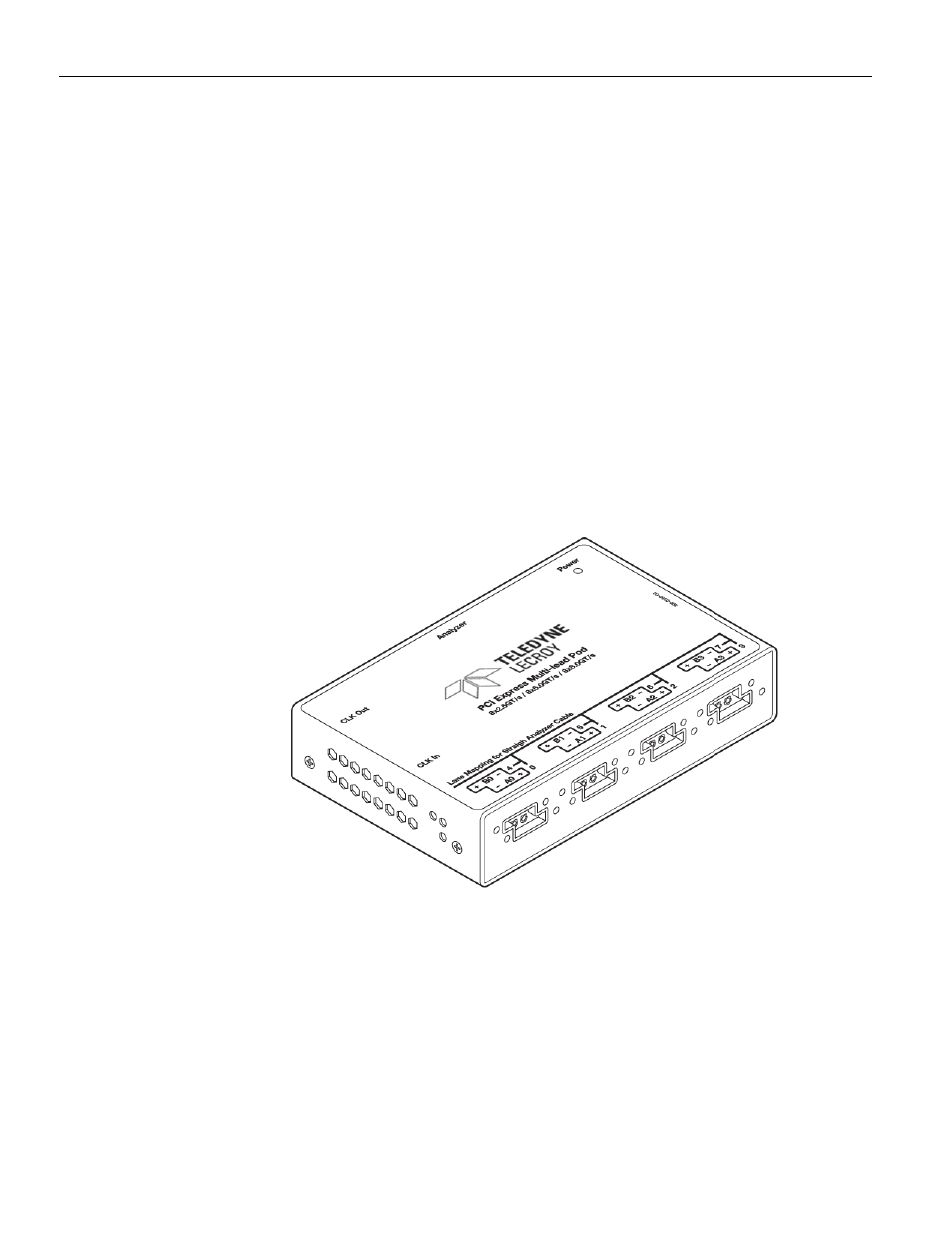

Figure 3.17: Multi-Lead Probe Pod
 Up to 16 MidBus Probe SSMP Cables, and up to 8 Flexible Leads, per pod
