Teledyne LeCroy Go To Marker
132 Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual

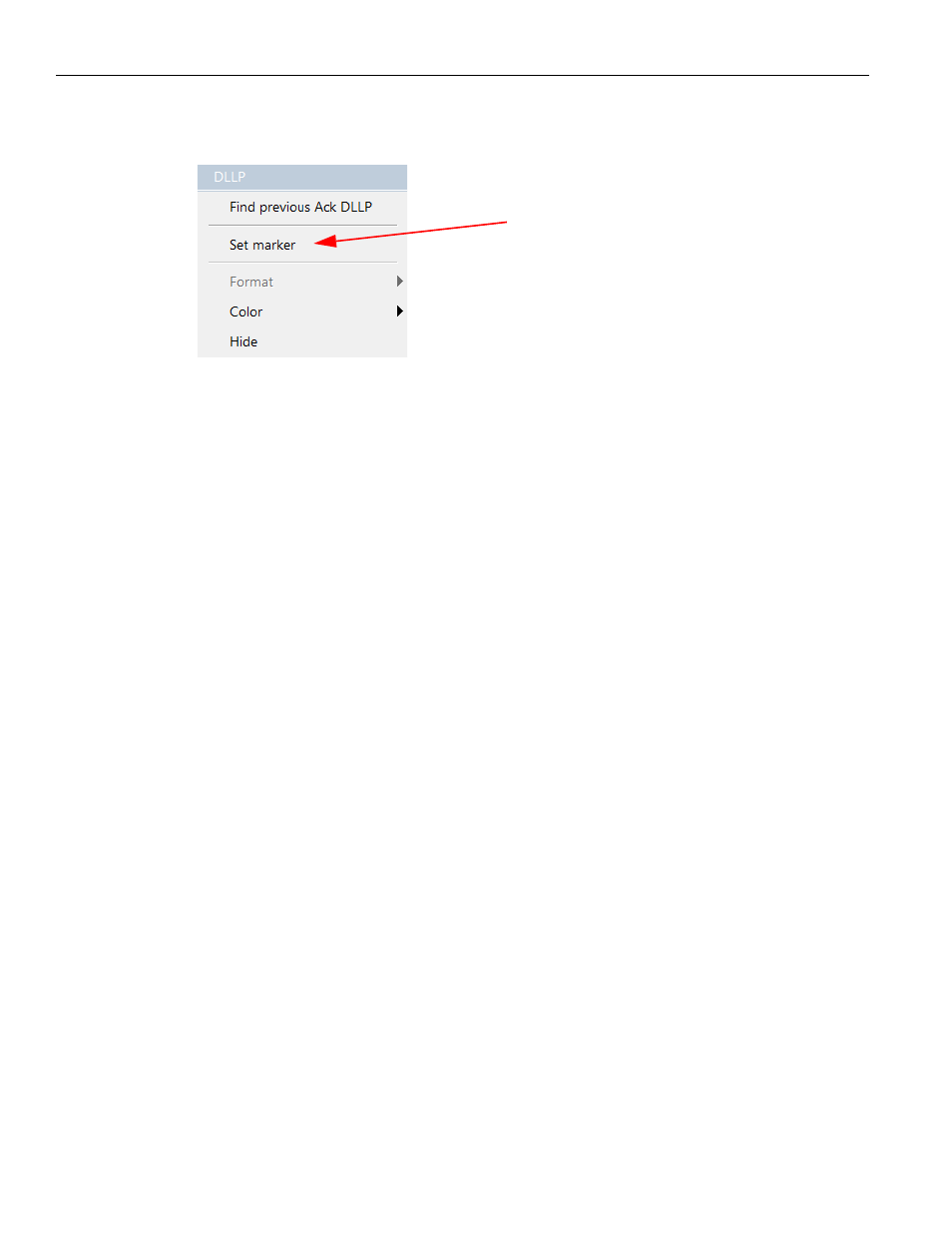

Right‐click on any cell of a packet and select Set Marker from the menu as shown below.
The Create Marker dialog displays (see Figure 7.2 on page 133 ).
Set New Marker
Markers are useful to identify specific points in the data. By default markers follow a
numbering convention but can be renamed. Markers can also be inserted by using
the keyboard (see
Figure 7.2 on page 133 ):
 Hover your mouse pointer over a packet and press Ctrl+K to insert a marker for
that packet.
 Click a packet to select it and press Ctrl+L to insert a marker for that packet.
