Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 113
Show Raw 10b Codes Teledyne LeCroy
6.6 Show Raw 10b Codes
You can view the raw bits that make up the data field by left‐clicking the field and
selecting View Data Block from the pop‐up menu.
To view Raw 10b Codes:
1. Right‐click the first cell in a packet.
2. Select Show Raw 10b Codes from the pop‐up menu to display the Raw 10b Codes
window.

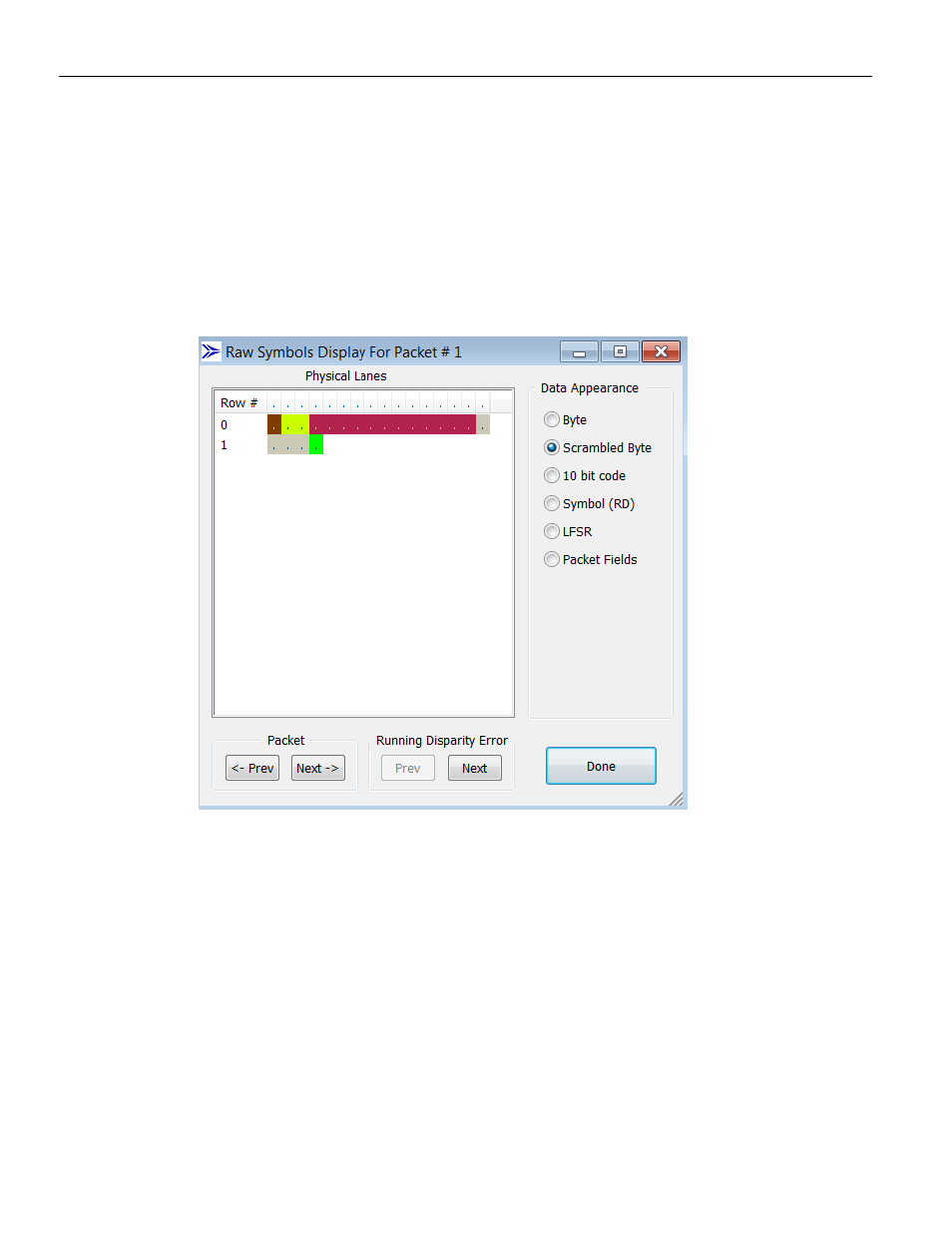

Figure 6.2: Show Raw 10b Codes Dialog
3. To change the format of the data, use the options along the right side of the dialog.
4. To navigate the CATC Trace, use the Prev and Next buttons.
