5.23.1 How to Set a Timer
Timers are events and you can add a timer to the Global State or the Sequence State as an
event by doing the following:
Right‐click in the blue space in the Global or Sequence State and New Event > Timer. See
Figure 5.47.

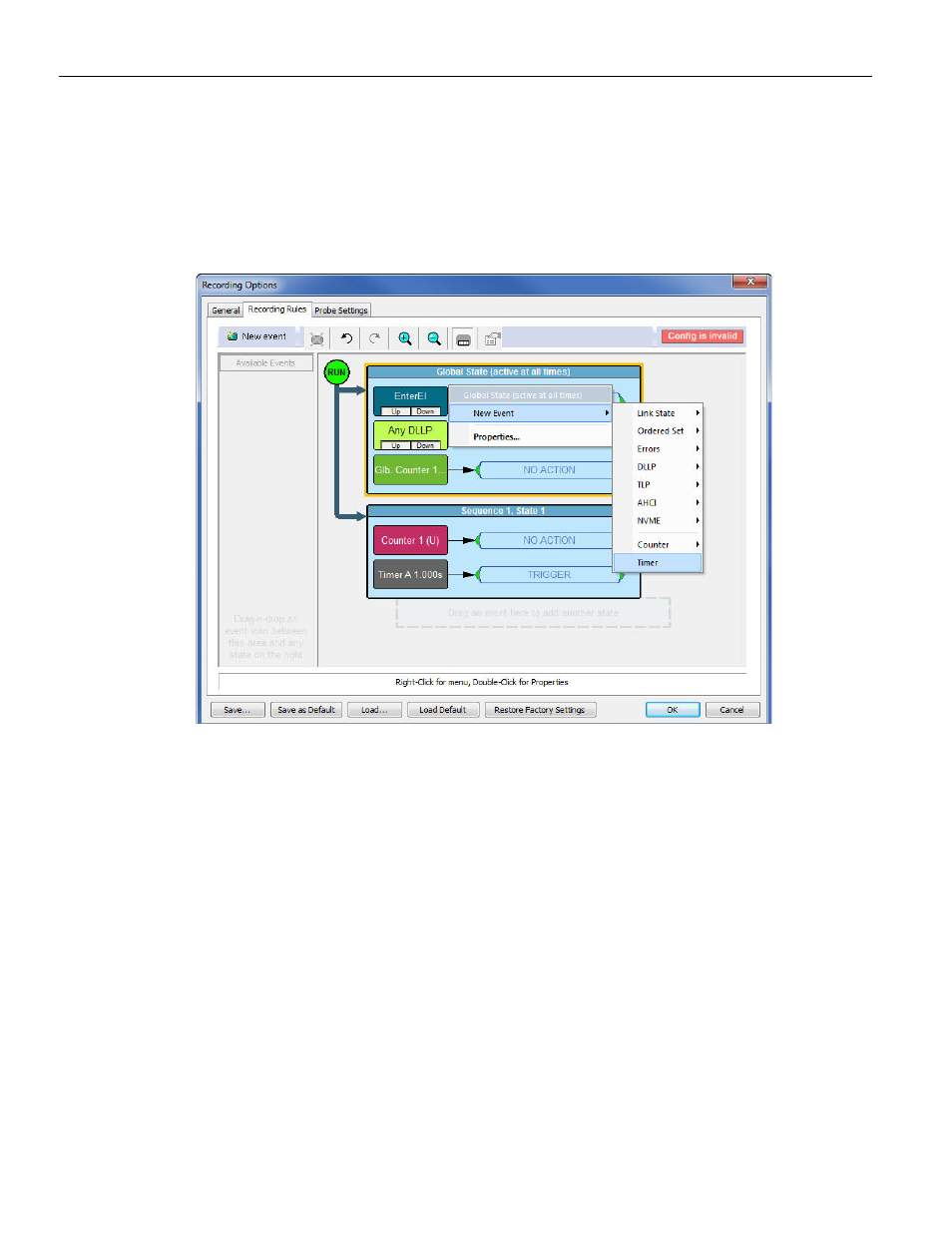

Figure 5.47: Setting Global and Sequence State Timer Events
5.23.2 How to Start or Reset a Timer
You can Start or Reset the Timer in the Global State and in the Sequence State by
performing the following steps:
1. Open the Recording Rules page, select an event, and drag it to the Global State or
Sequence cells (see Figure 5.48 on page 98 ). For details on these steps (see “Filter
Out” on page 100) .
2. Right‐click on an event and select Specify Actions > Start Global Timer > Global
Timer A or Timer B from the menu. See the figure below.
