Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
217
Real‐Time Statistics Window
Teledyne LeCroy Corporation

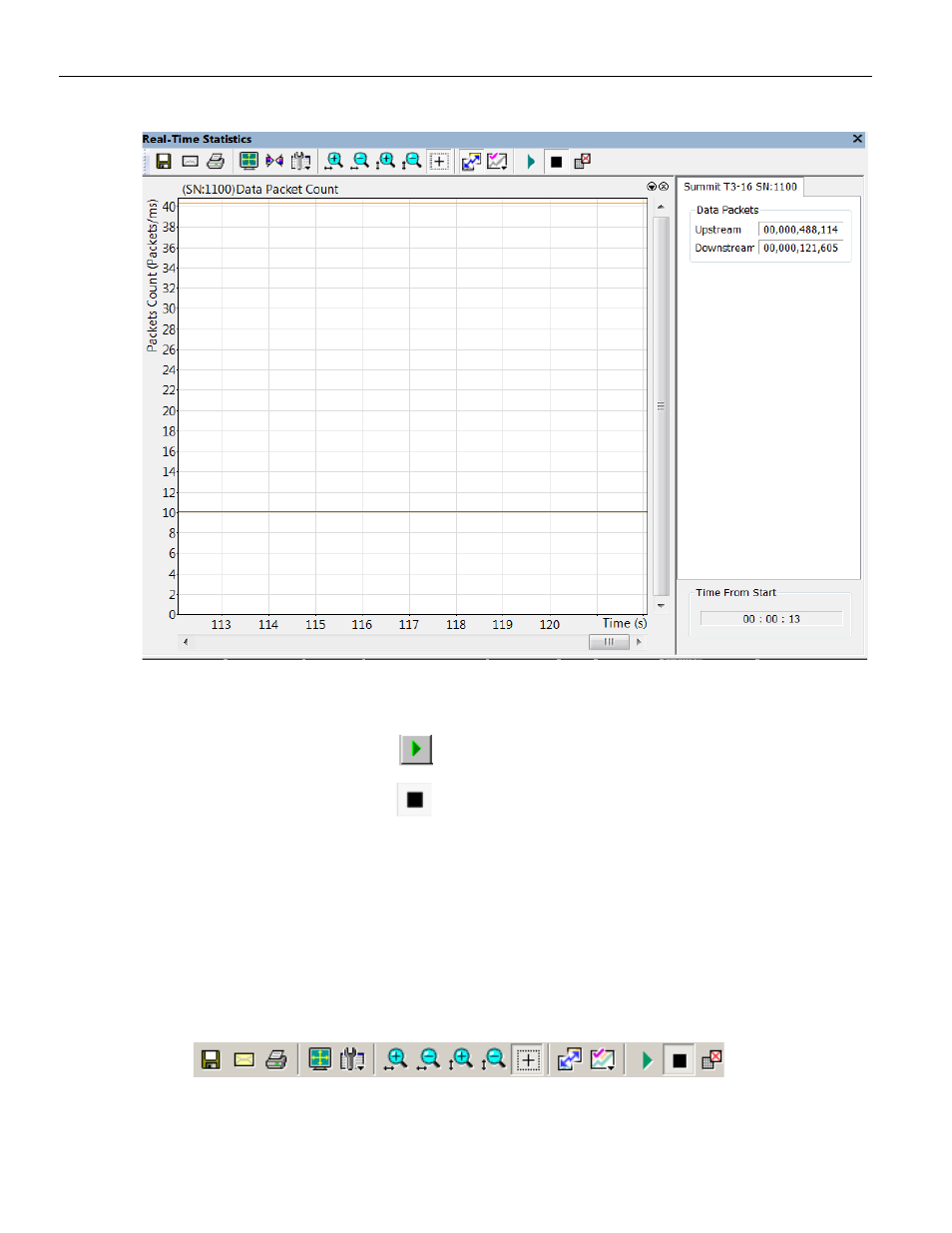

Figure 10.29: Real-Time Statistics Dialog
Start PCI Express™ link activity.
To start the monitor, press
.
To stop the monitor, press
.
The remaining Real‐Time Statistics buttons provide options for changing the format of the
display.
Additional formatting options are available through the Real‐Time Statistics pop‐up menu
and the Real‐Time Statistics toolbar.
10.19.1 Real-Time Statistics Buttons
Additional formatting options are available through the Real‐Time Statistics toolbar.
