Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 151
Find Teledyne LeCroy
 AHCI Port Multiplier Port
 AHCI Raw Address
 AHCI Direction
 AHCI Errors
The Event Groups for ATA transactions are:
 ATA Register Type
 ATA Port Number
 ATA Slot Number
 ATA Raw Address
 ATA port Multiplier Port
 ATA Interruption Reason
 ATA Error Type ATA Input/Output
 ATA Payload Portion
 ATA CFIS Fields
 ATA RFIS Device to Host Fields
 ATA DSFIS Fields
 ATA PSFIS Fields
 ATA SDBFIS Fields.
TS1 and TS2 Event Groups
Selecting TS1 Data or TS2 Data options allows further definition of the exact field
contents to match via the three dialogs show below. The search algorithm will find the
specified TS ordered set on any lane.

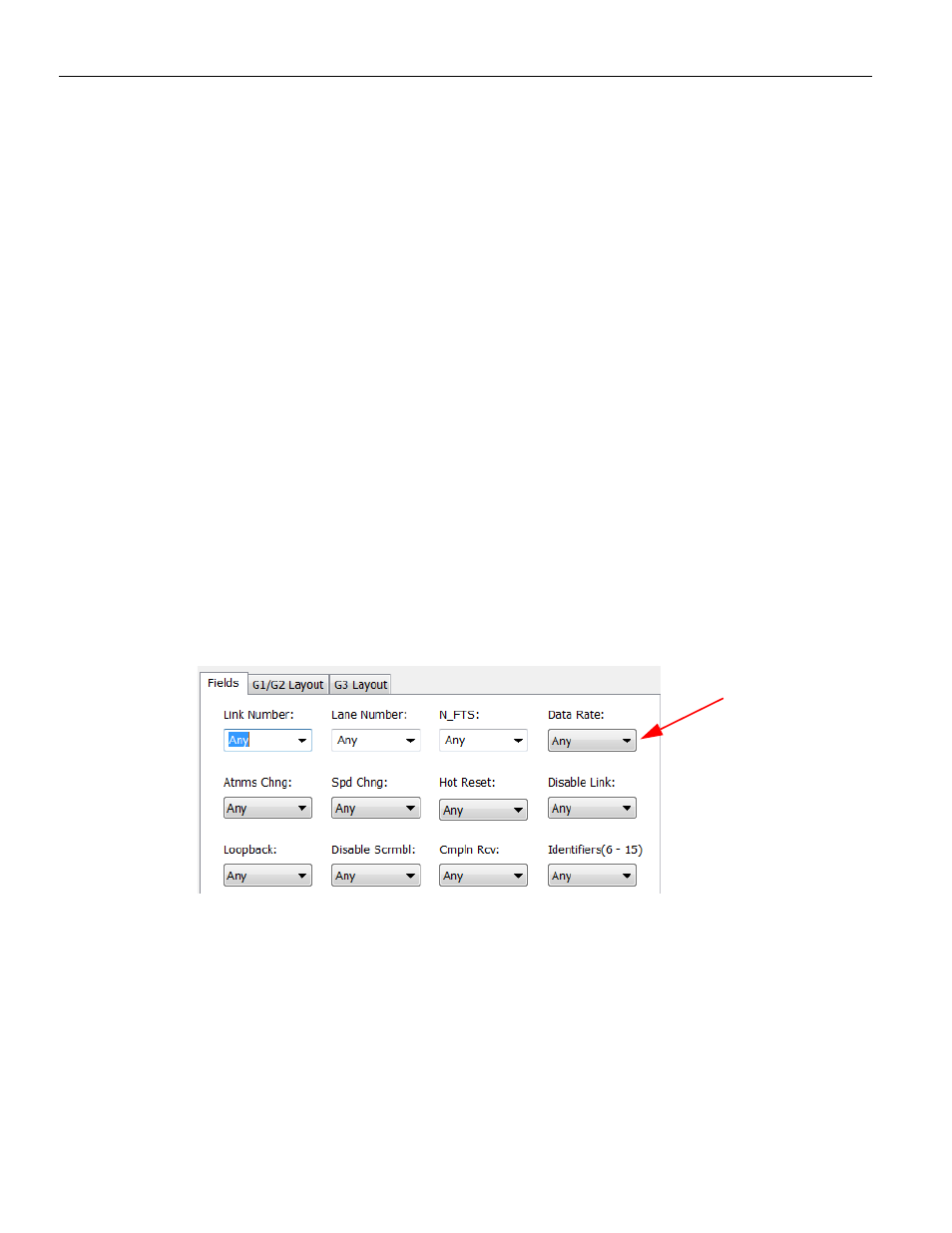

Figure 7.19: TS Data Fields Tab
Select parameters from the drop‐down lists to use.
