Teledyne LeCroy Link Settings
60 Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
5.13.1 Viewing Multisegmented Files
If Save As MultiSegment Trace is enabled in the General tab of the Recording Options, the
PETracer divides the CATC Trace into segments and stores them on the host machine's
hard drive. Segment size is set in the MB Segments box. Enter a value from 4 MB to 128
MB.
PETracer also creates an index file that provides a brief summary of each segment and
hyperlinks to each of the segments. Double‐clicking a segment summary in the index file
causes PETracer to open that segment.
You can also navigate through the segments by clicking the buttons on the Multisegment
toolbar.
5.14 Link Settings
The Link options panel allows you to manage links. You can define the basic link
parameters or leave it on Auto detect. The various link settings are described in this
section. (See
Figure 5.1 on page 52: 3. )

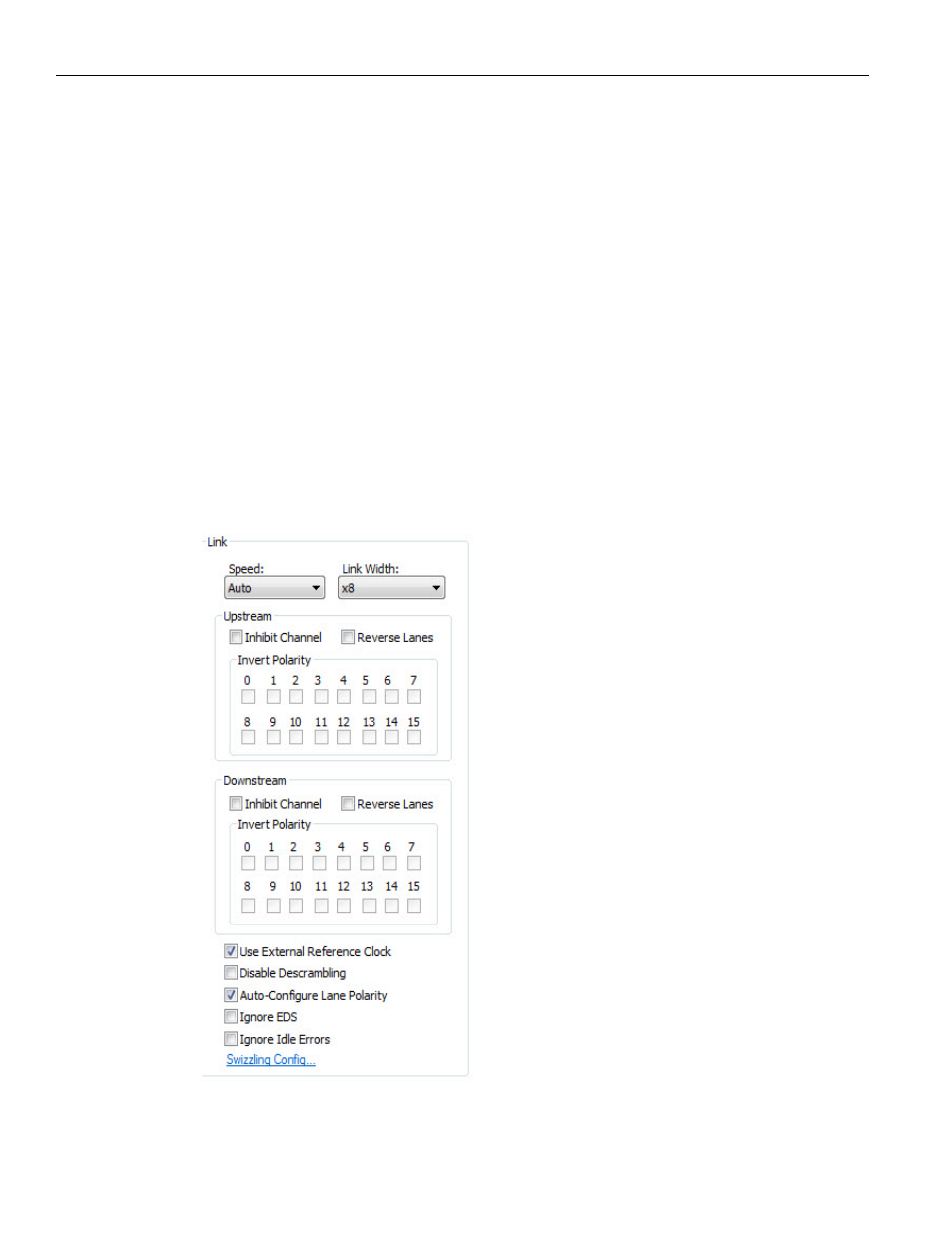

Figure 5.11: Link Options for Summit T3-8
