Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 49
Analyzer Chat Window Teledyne LeCroy
4.16.1 CrossSync Control Panel
The CrossSync Control Panel allows you to select analyzers for synchronization and
manage the recording process. It supports a wide combination of Teledyne LeCroy’s
flagship analyzers including PCI Express, USB, DDR, Serial ATA (SATA), Serial Attached SCSI
(SAS), Fibre Channel (FC) and Ethernet.
CrossSync is Teledyne LeCroy’s analyzer synchronization solution that enables time‐
aligned display of protocol traffic from multiple daisy‐chained analyzers showing packet
traffic from multiple high‐speed serial busses. A lightweight software control panel allows
users to select analyzers for synchronization and manage the recording process. Captured
traffic is displayed using the latest analyzer software (in separate windows) with all the
protocol specific search and reporting features.
Captured packets are displayed in separate windows that share a common time scale.
Navigating the traffic in either direction will scroll to the same timestamp in a
synchronized window. When using the CrossSync option, users can access the full
complement of analysis capabilities available within the individual Teledyne LeCroy
software. Search, reporting, and decoding all operate normally.
This feature is available with the Teledyne LeCroy PETracer PCI Express Protocol Analyzer
software application.
Launching the CrossSync Control Panel
To launch CrossSync from the PETracer PCI Express Protocol Analyzer software
application, select the ‘Launch CrossSync Control Panel‘ entry in the ‘Setup’ menu (see
the screen below). Or, you can launch CrossSync from the ‘Start’ menu.

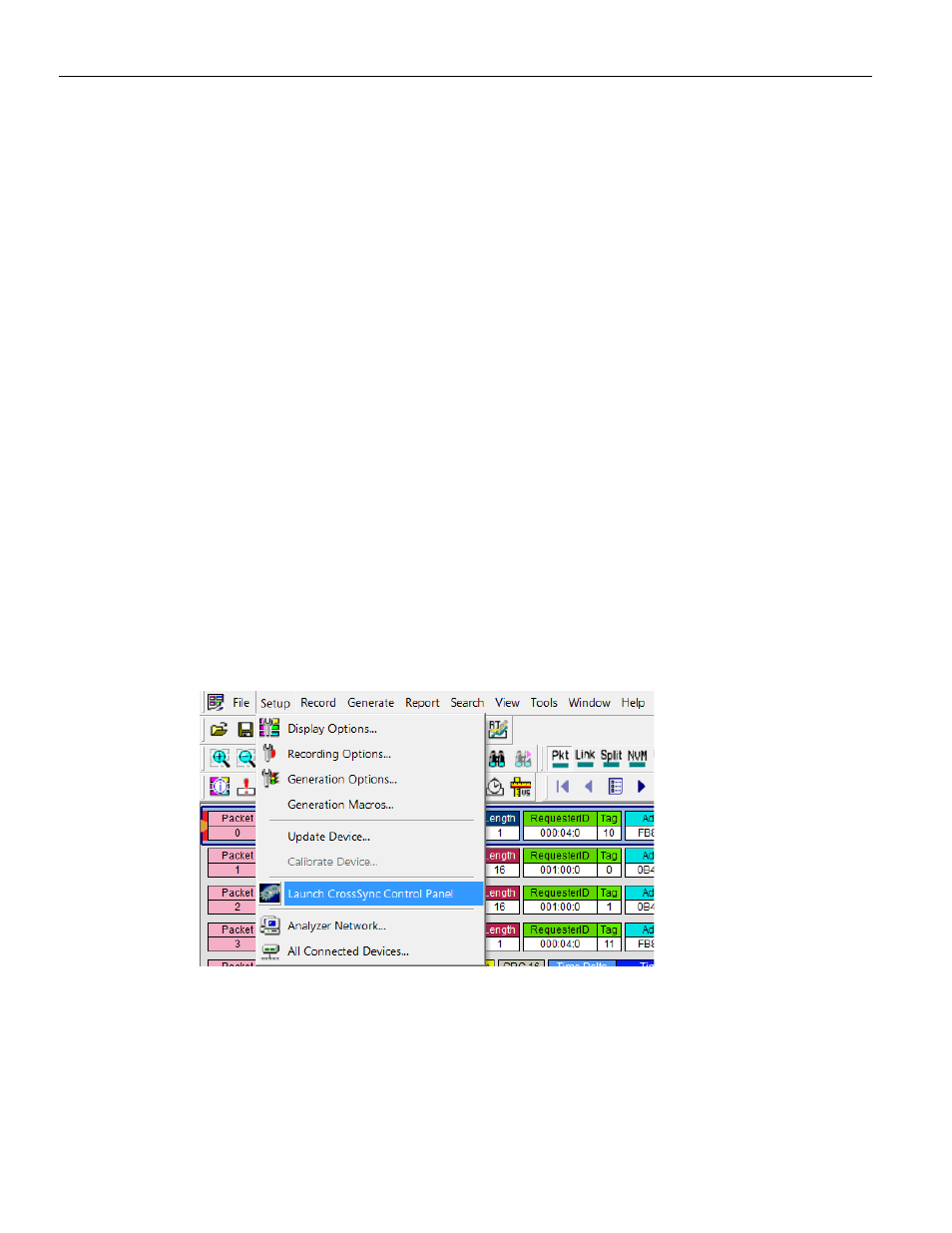

Figure 4.16: Launching CrossSync from the PETracer PCI Express Protocol Analyzer Application
Please refer to the CrossSync Control Panel User Manual for more information.
