146 Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
As a playlist is played back, the playback window is displayed in close proximity to the
marked area, just like a regular tooltip window.
As the playback progresses, the view jumps to the element corresponding to the current
attachment being played and the marked element is highlighted. During playback the
user is prevented from interacting with the trace. To reinforce this restriction, the trace
view is grayed‐out visually, and only the packet with the item corresponding to the
current attachment is colorized.

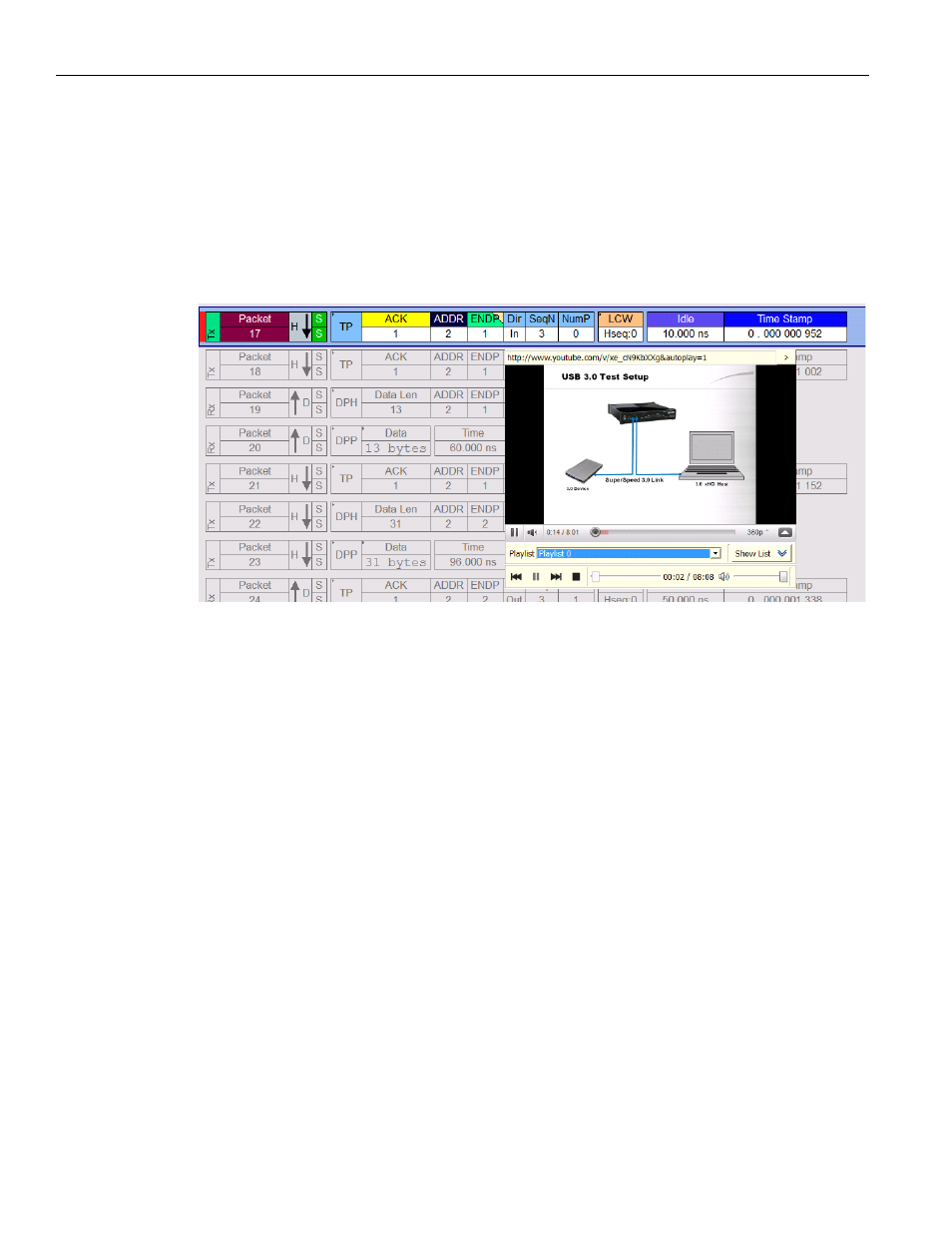

Figure 7.16: Playlist Playback View
7.8 Go To Menu
The Go To menu in the Search menu provides a quick way to search for a packet based on
a simple condition. You can search for the following types of events:
 TLP Type
 DLLP Type
 Ordered Set
 Link Event
 Traffic Class
 DLLP Virtual Channel
 TLP Virtual Channel
 Direction
 Speed
 Link Width
 Requester ID
 Completer ID
 Data Lengths
 Errors
7.9 Search Direction
Search direction can be toggled back and forth by using the command under the Search
menu. Search Direction controls the direction of the search. Each time Search Direction is
