Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual 143
CATC Walk Playlist Teledyne LeCroy

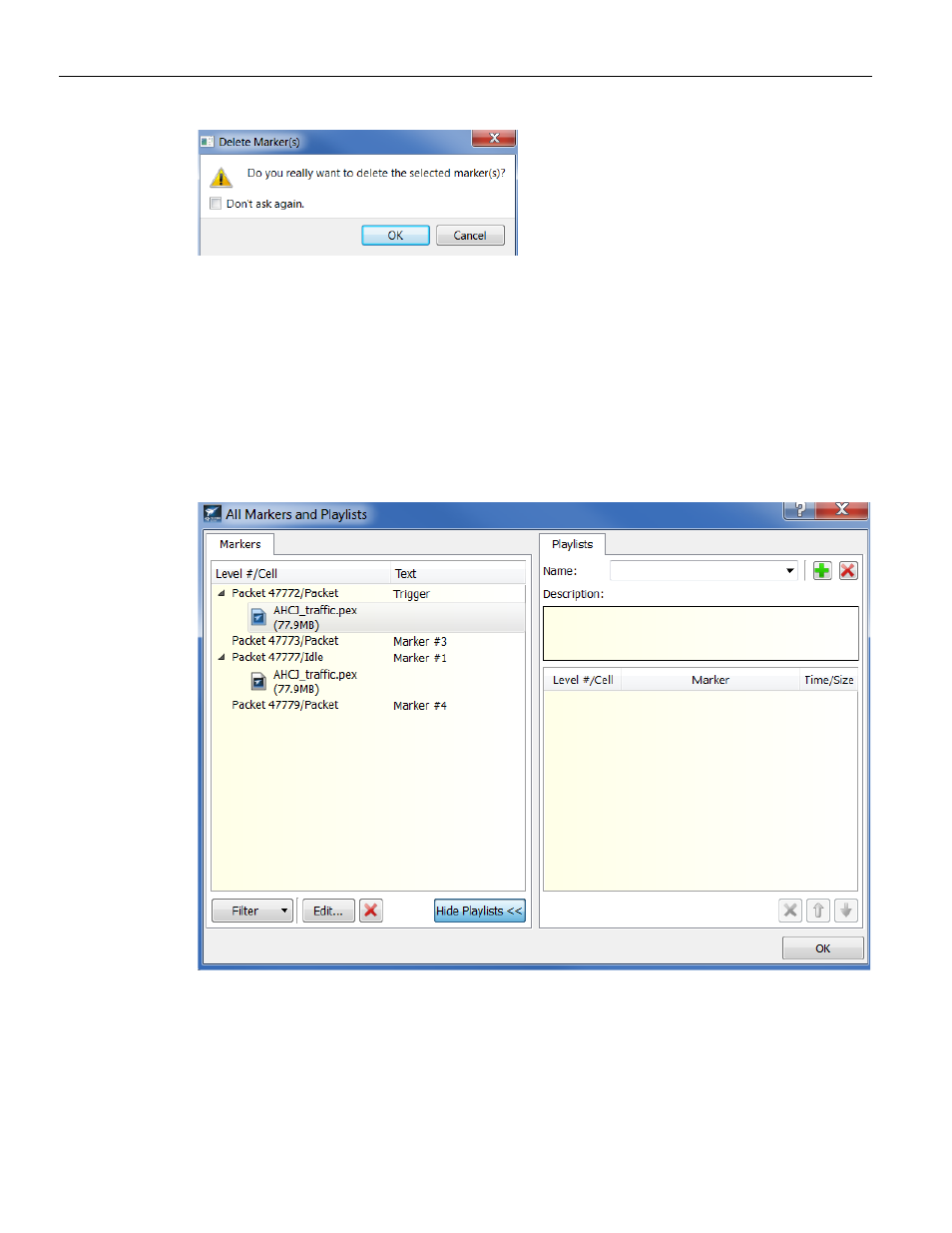

Figure 7.11: Confirmation Dialog
7.7 CATC Walk Playlist
This feature allows users to configure sequences of attachments into playlists. Any
arbitrary order of attachments are allowed, and there are no limits on the number of
playlists supported. This feature can be used for collaborating among developers as well
for training, support and marketing purposes.
To access a playlist click on the View menu in the top toolbar of application, select CATC
Walk and then select Manage Playlists.
Figure 7.12: Edit CATC Walk Playlists Dialog
7.7.1 Playlist Functionality
You can do the following to manage playlists:
 Remove or edit current playlists
 Edit the playlist name
