Link Tracker
194
Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
10.5.6 Calculating Time between DWORDs
You can calculate time between DWORDs by clicking an event and then positioning your
mouse pointer over a second event and reading the ensuing Tool tip.
Click the time value for the first event. Scroll down through the CATC Trace to the second
event and position the mouse pointer above its time value. A Tool tip appears showing
the time interval between the first and second events.

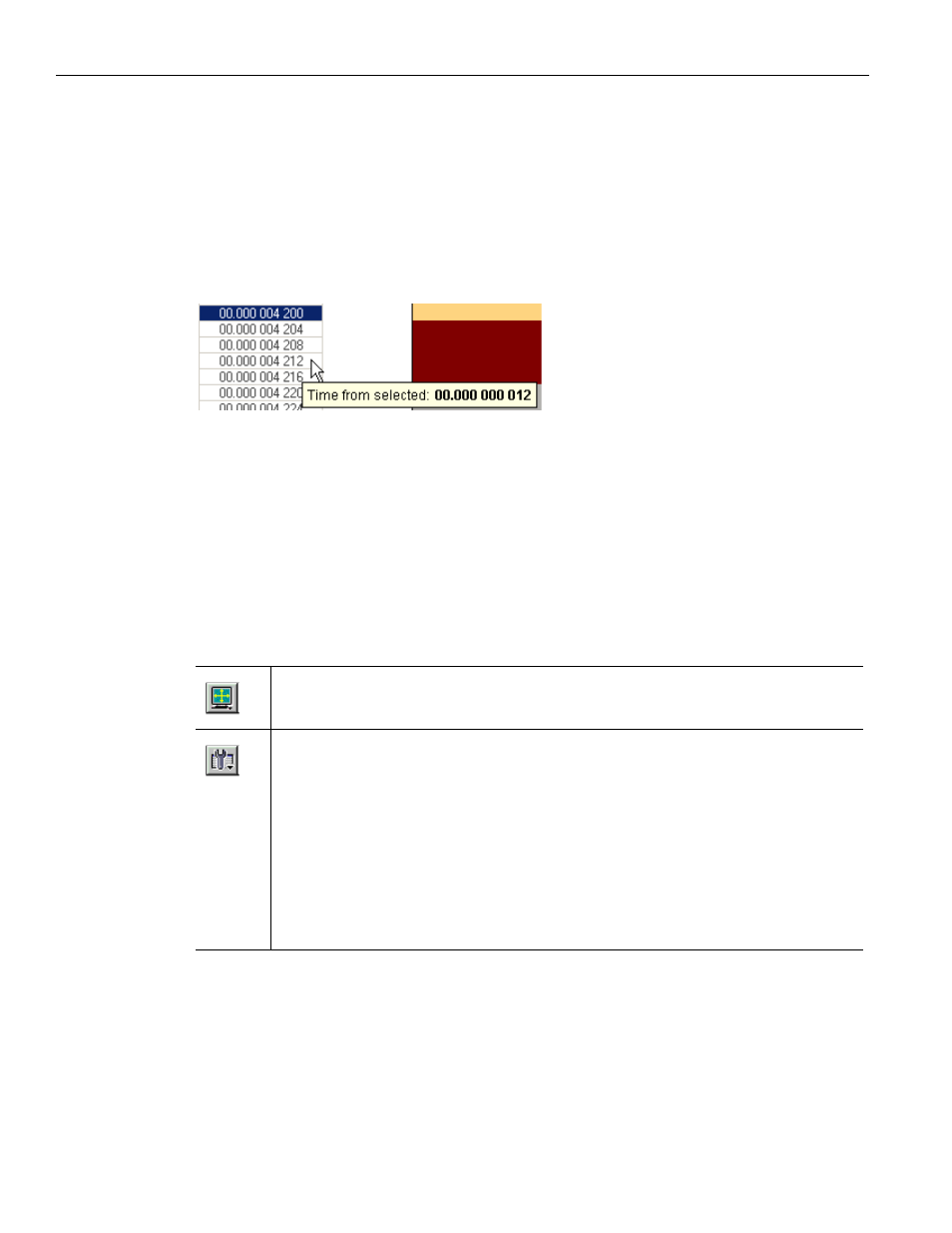

Figure 10.17: Viewing Time Values
10.5.7 Hiding Traffic
You can hide Idles and other data from the Link Tracker window by clicking the Hide
buttons on the toolbar.
10.5.8 Link Tracker Buttons
The Link Tracker window has a row of buttons for changing the format of the displayed
data and for exporting data: The buttons have the following functions:
Full Screen. Expands the Link Tracker window to fill the entire screen.
View Options. Opens a menu with three options:
•
Collapsible Idle Time (Collapse Idle Bigger Than n nanoseconds.
Note: Does not affect Collapse Idle Plus.)
•
Tooltip Display (Values, Scrambled Values, 10‐bit Codes, Symbols)
•
Time Format (Seconds, Clock)
•
Reset Columns Widths (return to default widths)
•
Reset Columns Order (return to default column sequence)
See
