Teledyne LeCroy Setting Up the Summit T3‐8 Analyzer using a USB Connection
8 Summit T3‐8 PCI Express Multi‐Lane Protocol Analyzer User Manual
The PETracer program displays.

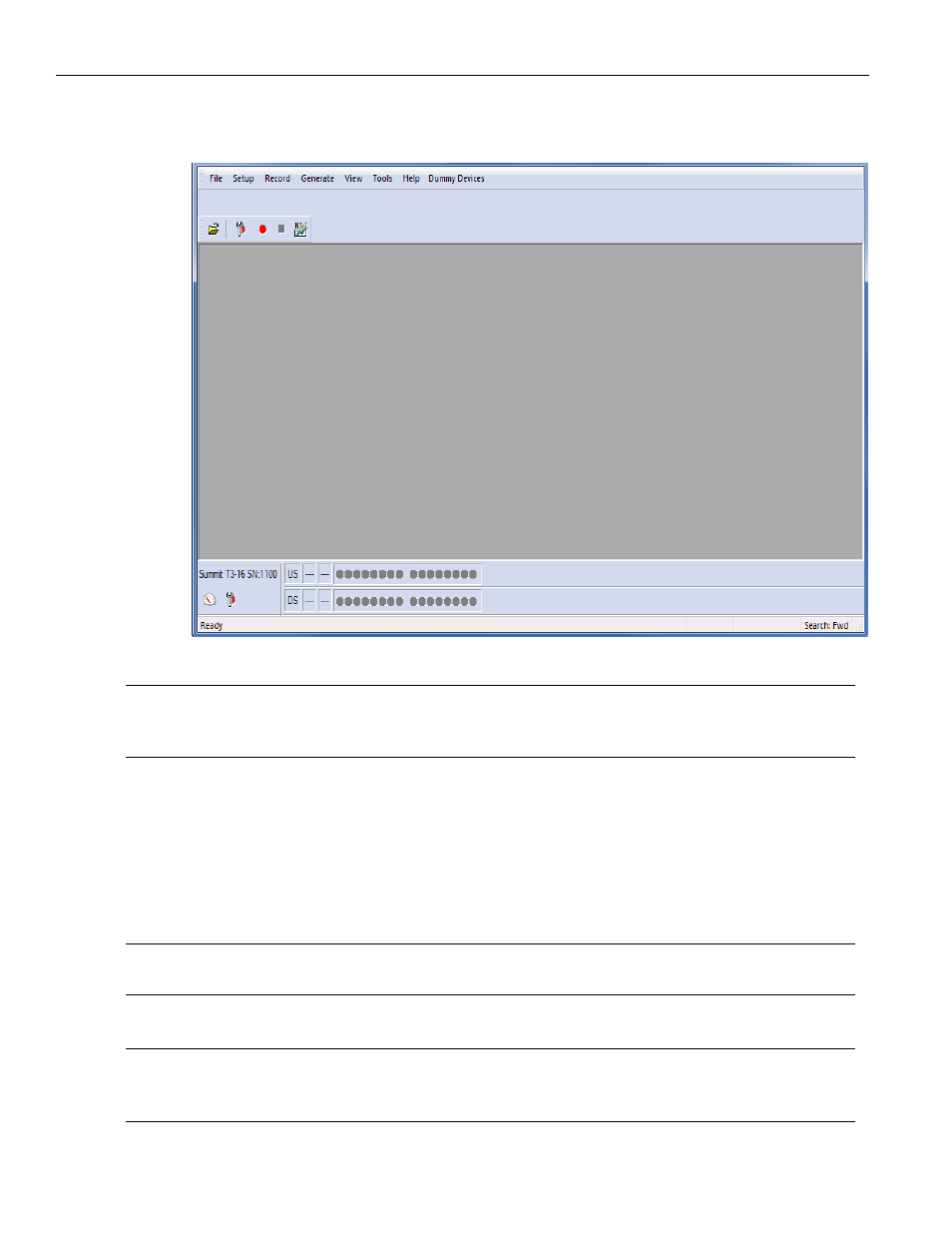

Figure 3.2: Teledyne LeCroy PETracer PCI Express Protocol Analyzer Application
Note:
The software may be used with or without the Analyzer. When used without an Analyzer
attached to the computer, the program functions as a CATC Trace Viewer to view, analyze and
print captured traffic.
3.2 Setting Up the Summit T3-8 Analyzer using a USB Connection
To set up the Analyzer using a USB connection:
1. Connect the Analyzer to a 100‐volt to 240‐volt, 50 Hz to 60 Hz, 120 W power outlet
using the provided power cord.
2. Connect the USB port to a USB port on the host machine using a USB cable.
Note: To connect using Ethernet, see “Setting Up the Summit T3‐8 Analyzer using a USB Connection”
on page 8 .
3. Turn on the front power switch.
Note: At power‐on, the Analyzer initializes and performs a self‐diagnosis. The results are reflected by
messages on the Summit T3‐8 LCD display. If the LCD display indicates failure, call Teledyne
LeCroy Customer Support for assistance.
