Timing Measurements Bar

Teledyne LeCroy

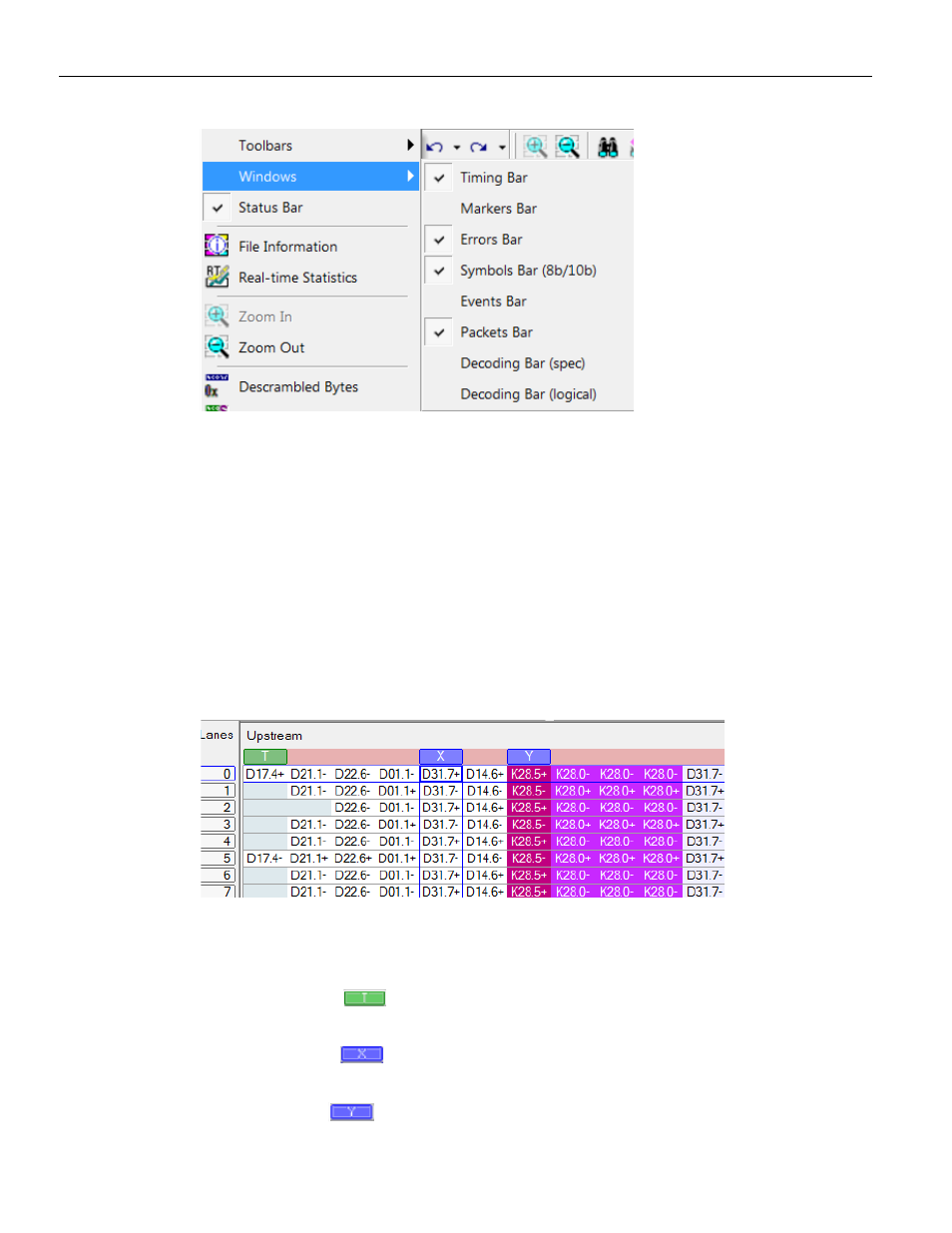

Figure 9.3: Activate/Deactivate Reports

You can rearrange the report windows.

All report windows are dockable.

9.8

Timing Measurements Bar

BitTracer mode provides timing measurements on captured data:

Measurements from the Trigger position relative to user‐selected X and Y mark‐
ers

X‐Y measurements

Measurements between user‐defined markers

Figure 9.4: Timing Measurements on Captured Data

9.8.1

Markers Bar

The Trigger marker

 is at the point where BitTracer recognized the user‐defined

trigger condition.

To set an X marker

, left‐click anywhere in the data display, except for the light gray

bar located above the data and below the directional label.

To set a Y marker

, right‐click anywhere in the data display, except for the light gray

bar located above the data and below the directional label.
