Connections overview for gen2 multi-lead probe, Connection procedure, 10 expansion mode using two summit t3-8 analyzers – Teledyne LeCroy Summit T3-8 PCIe Multi-lane Protocol Analyzer User Manual User Manual

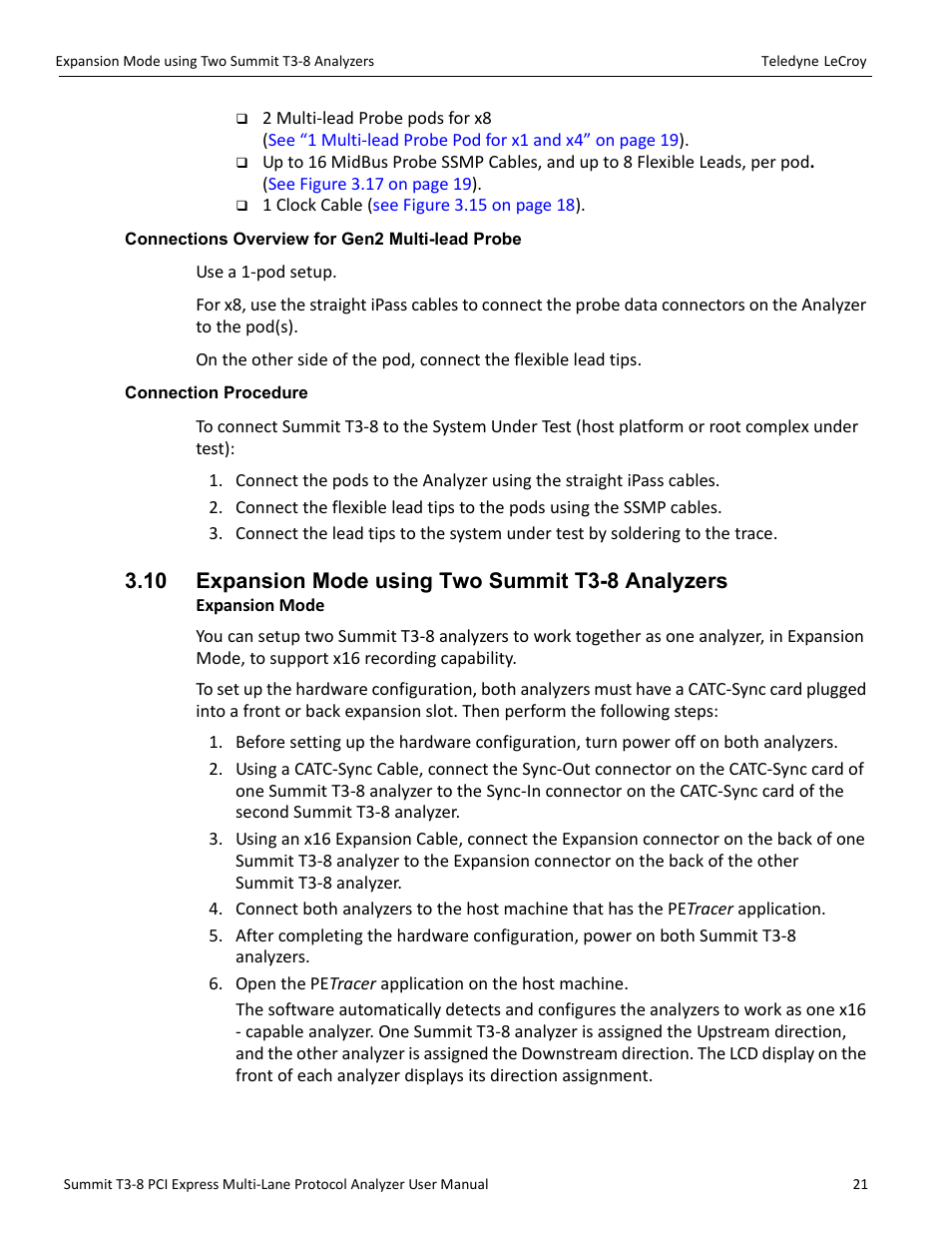

Page 33: 4 expansion mode using two summit t3-8 analyzers
