Handling of the pause (*STP) signal
This signal is a Contact B signal, meaning that it must remain ON while the actuator is moving.
If the pause signal turns OFF while the actuator is moving, the actuator will decelerate to a stop.
The actuator will start moving when the signal turns ON again.
Use this signal as an interlock that actuates when an operator entry prohibition sensor or contact prevention
sensor is activated.
If the pause signal is not to be used, set parameter No. 15 (Pause input disable selection) to “1,” and
the actuator will move even when this signal is OFF.
(Note) When the “edge mode” is selected as the movement command type, you may want to change the
target position while the actuator is stopped with this signal turned OFF. In this case, input a
movement command specifying the new target position, and then turn ON this signal.

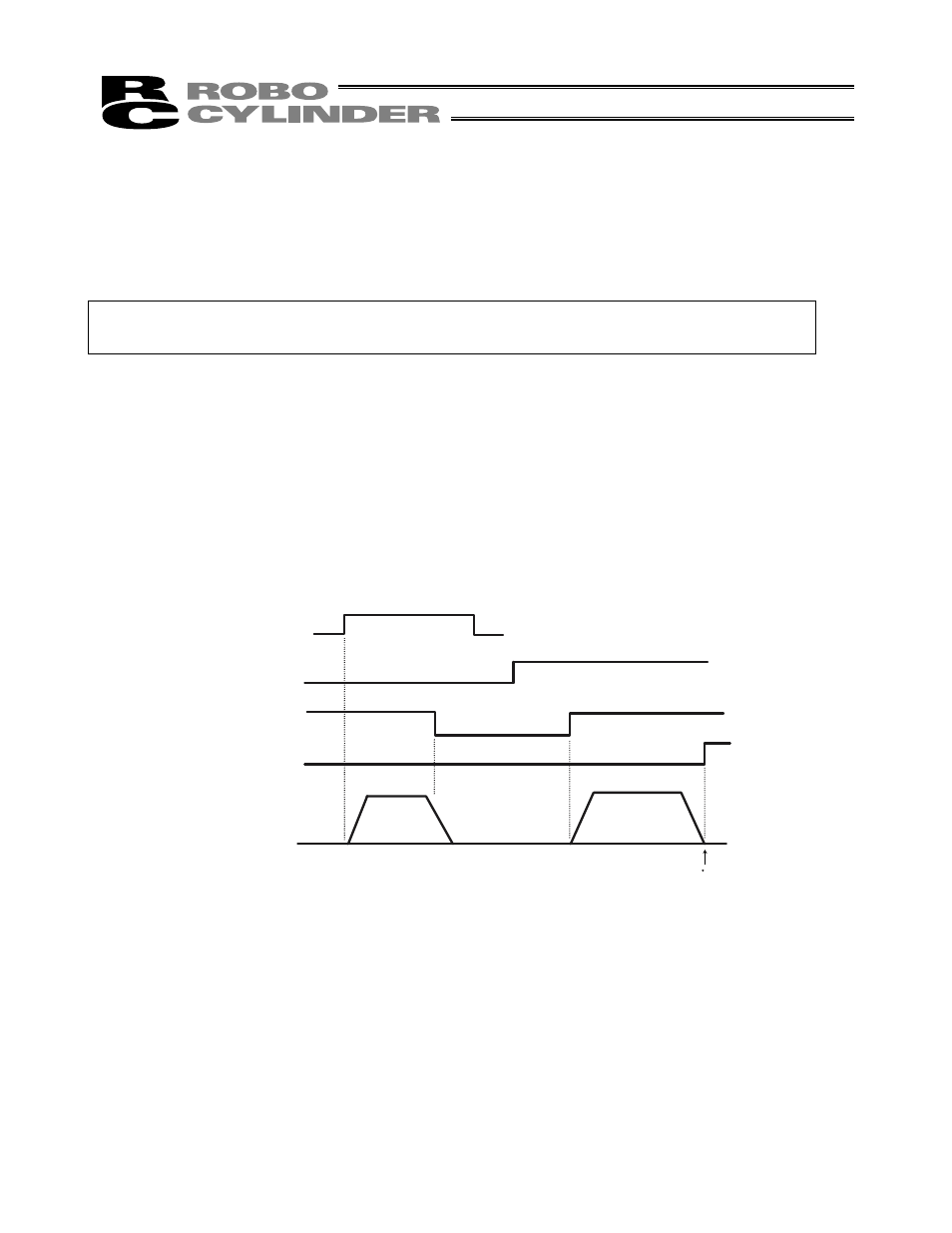

(Example) If the pause signal is turned OFF while the actuator is moving following the input of an
intermediate point move command, the accelerator will decelerate to a stop.
Turn OFF the intermediate point move signal, and then turn ON the front end move
signal.
When the pause signal is turned ON again, the controller will recognize the front end
as the new target position.
Intermediate point move
Front end move
Pause
Front end complete
Actuator movement
The front end becomes
the target position.
Stopped
