52

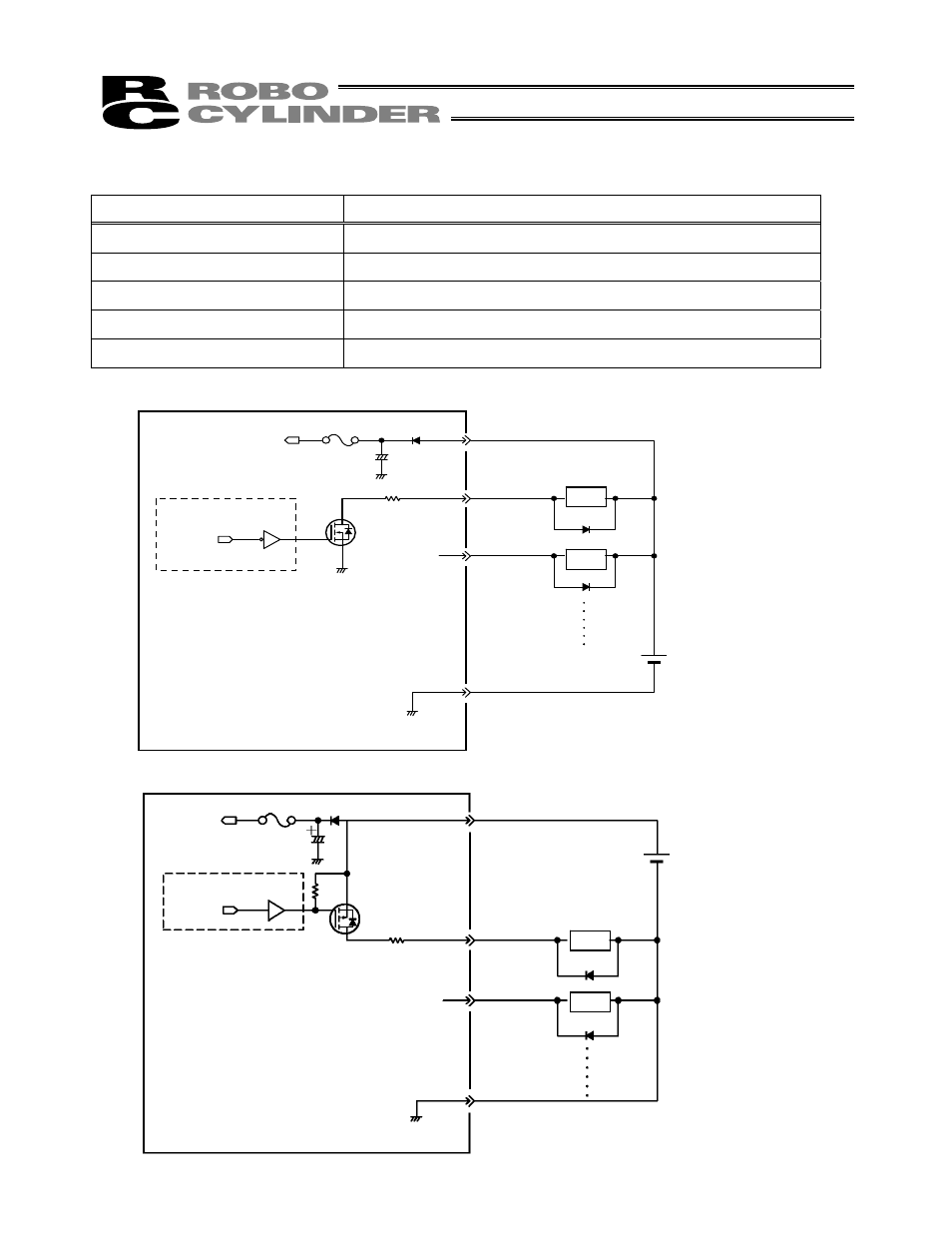

4.2.2 External Output Specifications
Item Specification
Number of output points 4 points
Rated load voltage 24 VDC
Maximum current 60 mA/point
Residual voltage 2 V or less
Shorting/reverse-voltage protection Fusing resistor (27 , 0.1 W)
[NPN specification]
[PNP specification]
ERC
Power supply (VP24)
FUSE
GND
27  0.1 W
Power MOS FET
GND
GND
4 output points
Internal
circuit
Each output
Each output
Load
External power supply
24 VDC
Fusing resistor
Load
ERC
Power supply
(VP24)
FUSE
GND
4 output points
Internal
circuit
Power MOS FET
27  0.1 W
Fusing resistor
CN1
3A
CN1
3A
Each output
Each output
4B, 5B
4B, 5B
External power supply
24 VDC
Load
Load
GND
