26

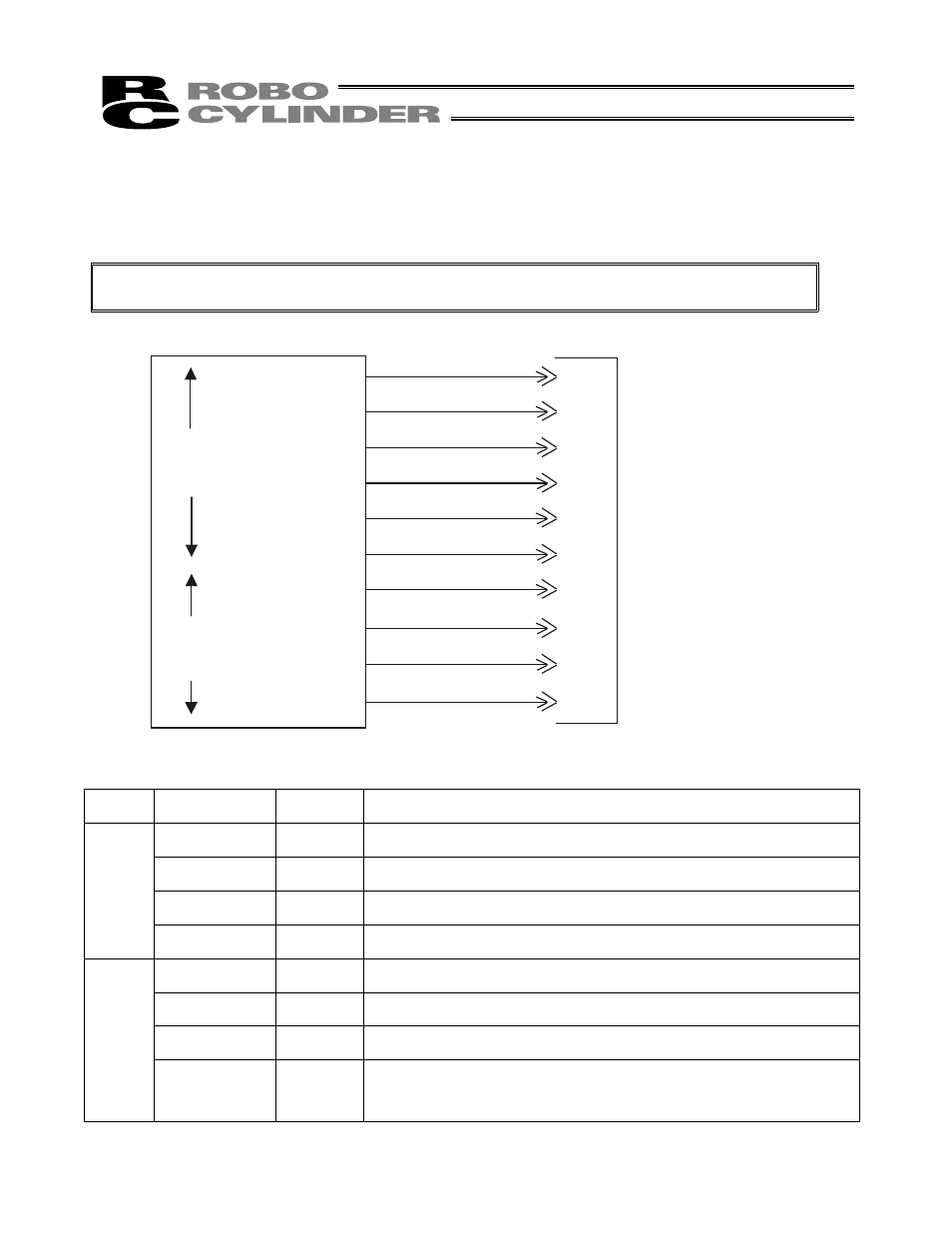

3.2 I/O Connections for PIO Pattern 1 [3 Points] (Air Cylinder)

The following description assumes that the ERC is used in the place of an air cylinder.

The number of positioning points is limited to three, but a direct command input and a position complete output

are provided separately for the target position in line with the conventional practice of air cylinder control.

Note:

The factory setting is “8 points,” so set parameter No. 25 to “1.” The pause signal can be
disabled in parameter No. 15.























(Note) *STP and *ALM are always ON.

3.2.1 Explanation of I/O Signals

Category Signal

name

Signal

abbreviation

Function overview

Rear end move

ST0

The actuator starts moving to the rear end at the rise edge of the signal.

Front end move

ST1

The actuator starts moving to the front end at the rise edge of the signal.

Intermediate point

move

ST2

The actuator starts moving to the intermediate point at the rise edge of the

signal.

Input

*Pause

*STP

ON: The actuator can be moved, OFF: The actuator decelerates to a stop

Rear end

complete

PE0

The signal turns ON when the actuator completes moving to the rear end.

Front end

complete

PE1

The signal turns ON when the actuator completes moving to the front end.

Intermediate point

complete

PE2

The signal turns ON when the actuator completes moving to the intermediate

point.

Output

*Alarm *ALM

This signal remains ON while the controller is operating properly, and turns

OFF when an alarm generates.

The *ALM signal is synchronized with the green/red indication of the LED.

(Note) The signal remains ON while the motor drive power is cut off.

Orange (Red 2)

Orange (Black 2)

*Light blue (Red 2)

*Light blue (Black 2)

White (Red 2)

White (Black 2)

Yellow (Red 2)

Yellow (Black 2)

Pink (Red 2)

Pink (Black 2)

6A ST0

6B ST1

7A ST2

7B

8A

8B *STP

9A PE0

9B PE1

10A PE2

10B *ALM

Host system

ERC actuator end

CN1 (Signal

abbreviation)

Output

side

Input

side

Rear end move

Front end move

Intermediate point
move

Pause

Rear end complete

Front end complete

Intermediate point
complete

Alarm

* Robot cable
Gray (Red 2)

Gray (Black 2)
