Datamax-O'Neil H-Class Operator’s Manual User Manual
Page 38
28
H-Class

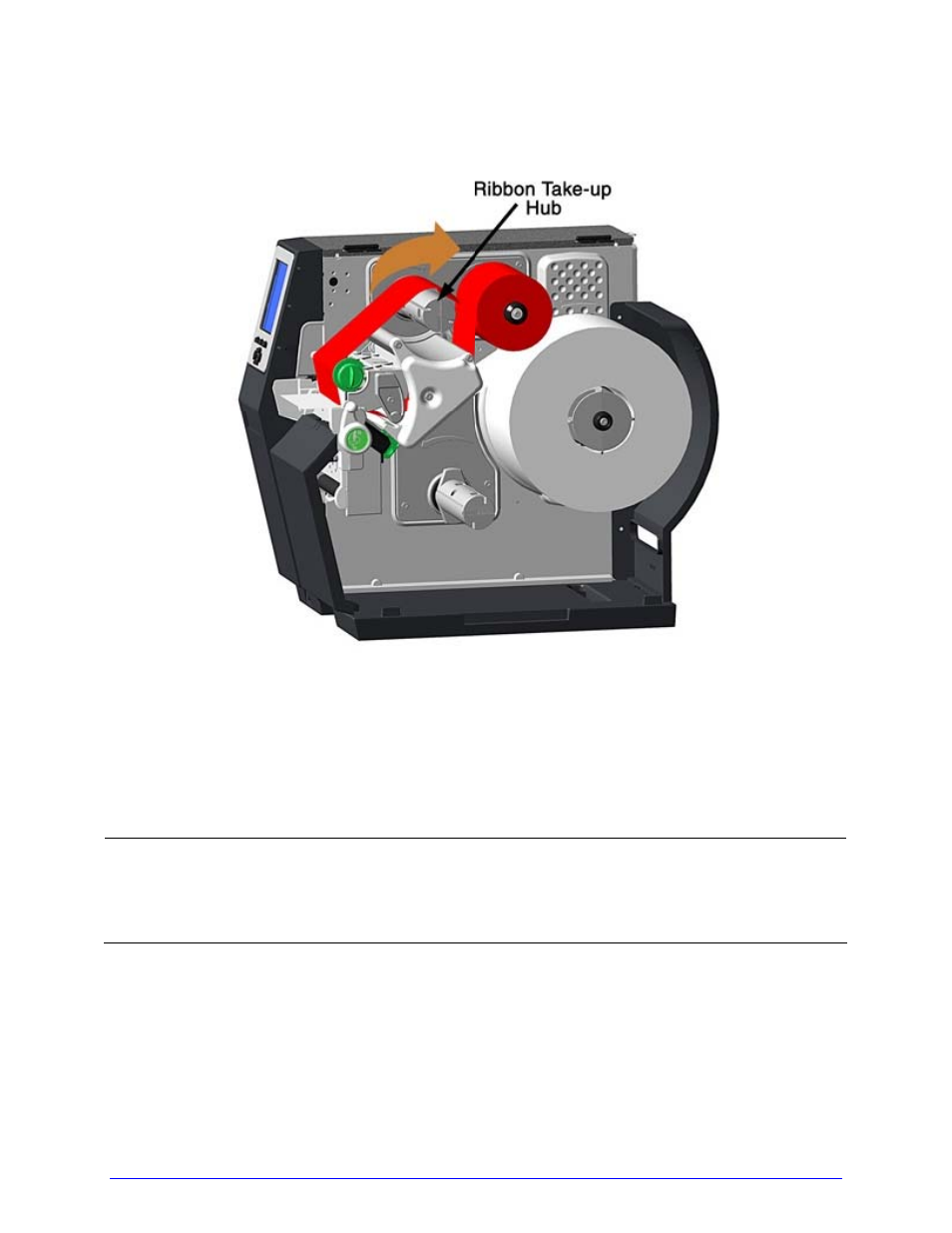

D. Route the ribbon up and around the Ribbon Take-Up Hub. Wrap the ribbon several
times clockwise (as indicated by the directional arrows) around the hub to secure it.
E. Lower the Printhead Assembly then rotate the Printhead Latch completely clockwise.
F. Close the cover. With READY displayed, press and hold the FEED Key until at least
one gap (or mark) advances; see Section 3.4.
Remove used ribbon when the Ribbon Roll is depleted: Pull the empty core from the
Ribbon Supply Hub. Grasp the used roll on Ribbon Take-Up Hub then pull and
squeeze to remove the spent ribbon. (To remove partially depleted rolls, cut the
ribbon then remove the roll as described above and discard any used ribbon.)
