H-Class

91

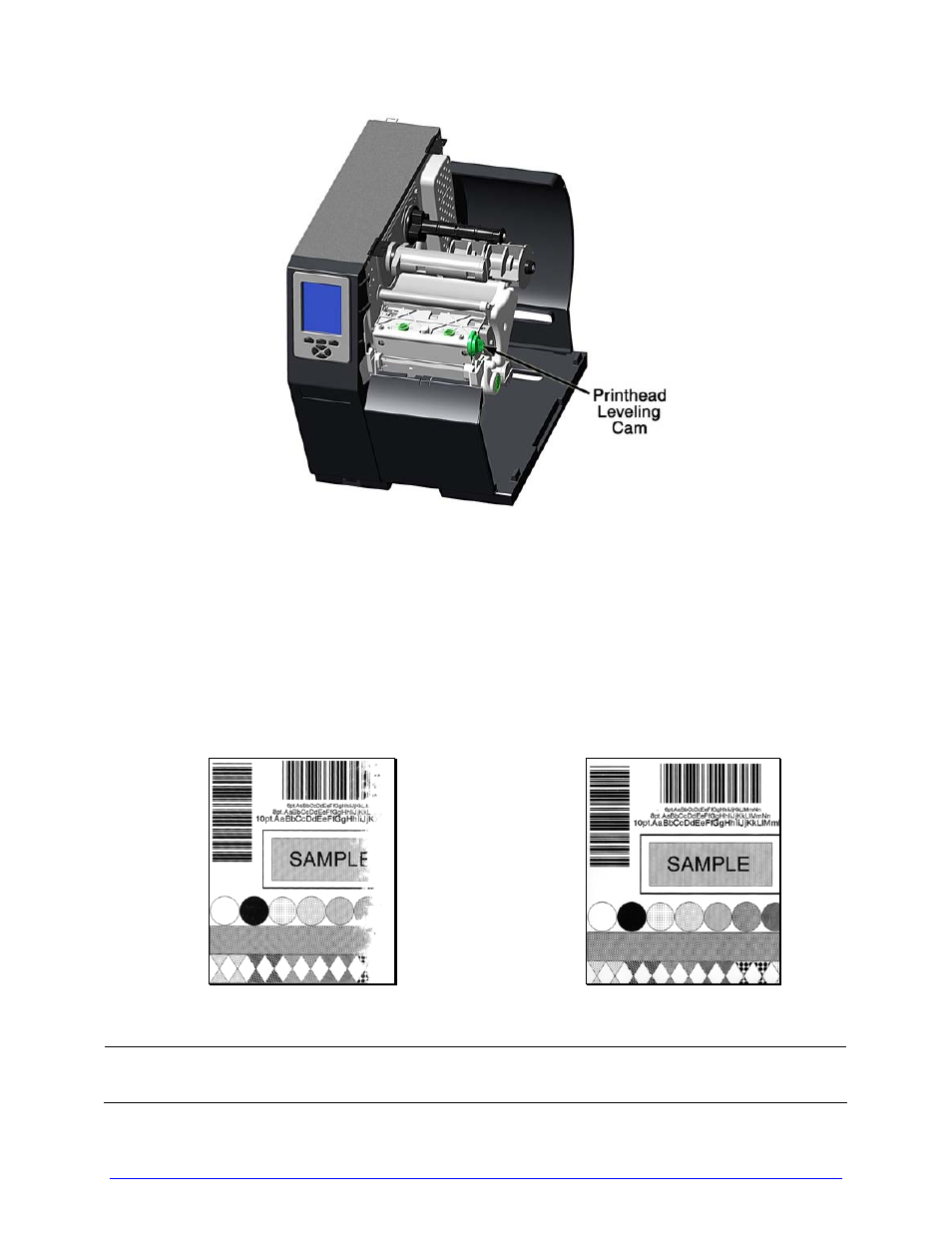

Adjust the Printhead Leveling Cam as follows:

A. With media loaded, download your label format (or use a Test Menu format) then

begin printing a small batch of labels.


B. While observing the printed output, rotate the Leveling Cam counter-clockwise until

the image fades across the label, as shown in Example 1 (below).


C. While observing the printed output, rotate the Leveling Cam clockwise until the

image is complete, with even contrast, as shown in Example 2 (below).

Example 1 – Too much adjustment

Example 2 –

Correct adjustment

Under-adjustment of the Leveling Cam can cause problems that include ribbon

wrinkling, label tracking, and excessive platen and printhead wear.
