Example 11: Viewing and adjusting an output volume level

In the following example, the audio output volume is viewed and adjusted. The

steps show the front panel indications that result from your action.

1

.

Press and release the Esc button (figure 3-59).

C O N T R O L

PRESET

ENTER

ESC

VIEW

Press the Esc button to clear all selections.

The button flashes once.

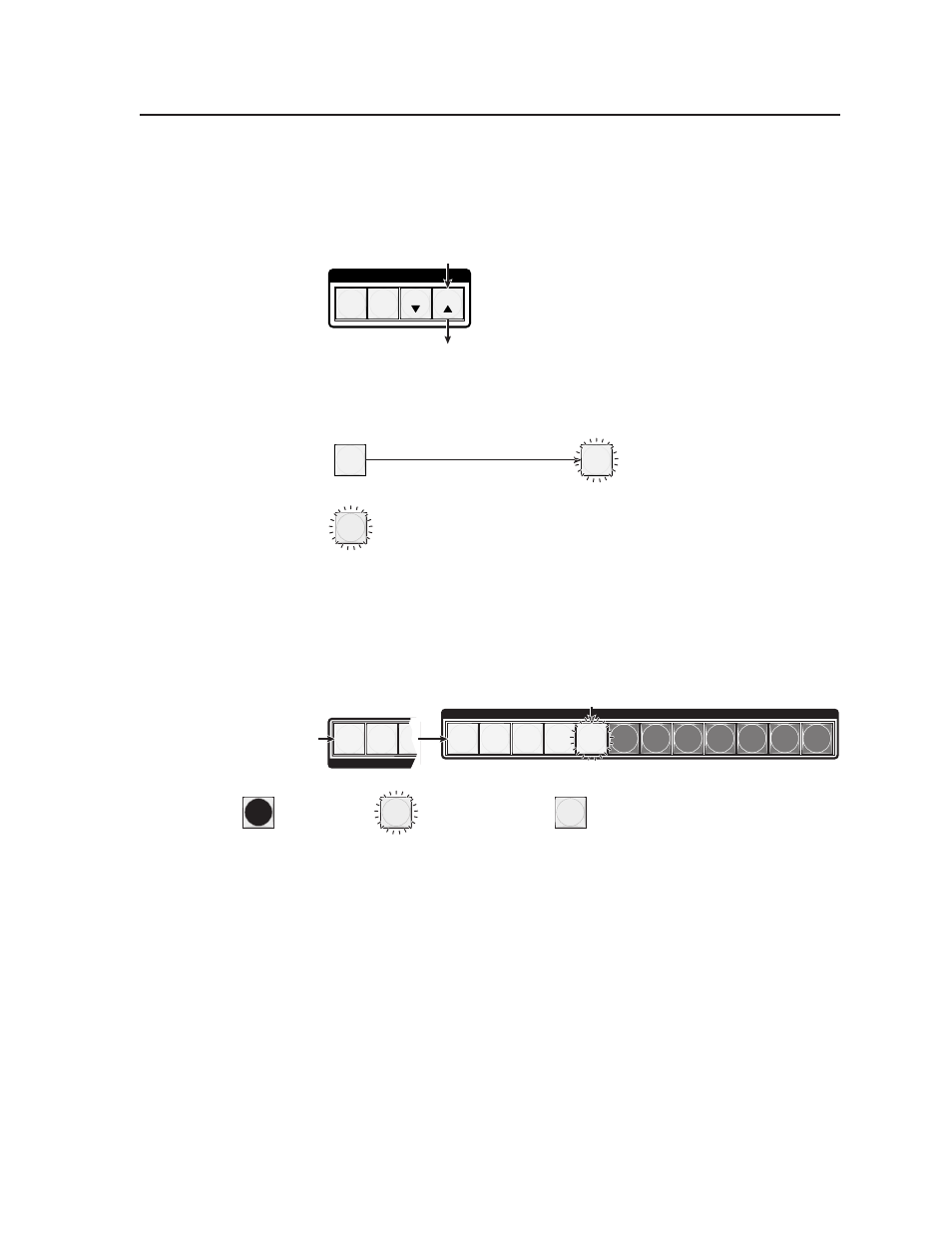

Figure 3-59 — Clear all selections

2

.

Press and hold the Audio button for approximately 2 seconds (figure 3-60).

AUDIO

AUDIO

Press and hold the Audio button until it blinks.

2 seconds

= Blinking button

Figure 3-60 — Select Audio mode

3

.

Press and release the output 1 button (figure 3-61).

3

1 2 3

11 12

6 7 8 9 10

INPUTS

1 2 3 4 5

Press and release
the Output 1 button.
The button lights
green.

The input buttons display the selected output's audio volume level.
In this example, the

green input buttons indicate 41.5 percent of the applied audio

input. The

unlit input buttons indicate an audio volume attenuation of 39 dB.

–39 dB attenuation,

41.5% volume

= Unlit button

= Slow blinking button

S

S

= Lit button

Figure 3-61 — Select output 1
