Operation, cont’d

MVX Plus 128 VGA A Matrix Switcher • Operation

3-22

PRELIMINAR

Y

4

.

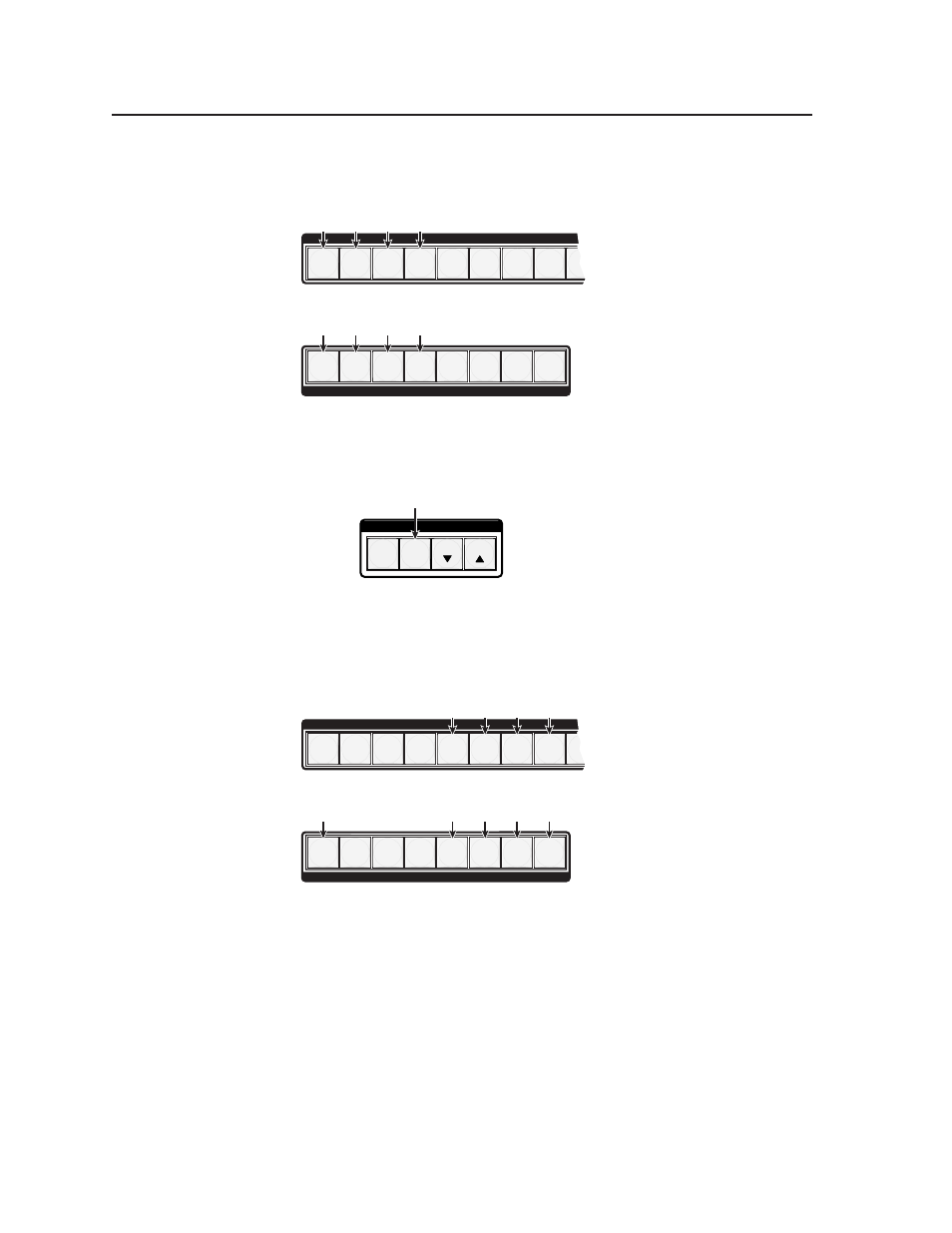

Press and release the input 1 through 4 and output 1 through 4 buttons

(figure 3-31).

INPUTS

1 2 3 4 5 6 7 8 9

OUTPUTS

1 2 3 4 5 6 7 8

Press and release the Input 1 through Input 4 buttons.
The selected buttons light.

Press and release the Output 1 through Output 4 buttons.
The selected buttons light.

Figure 3-31 — Assign inputs and outputs

5

.

Press and release the Preset button to select group 2 (figure 3-32).

C O N T R O L

PRESET

ENTER

ESC

VIEW

Press and release the Preset button to select group 2.
The button lights amber to indicate the selection.

1

3

2

4

Group #

Figure 3-32 — Select an I/O group

6

.

Press and release the input 5 through 8 and output 5 through 8 buttons

(figure 3-33).

INPUTS

1 2 3 4 5 6 7 8 9

OUTPUTS

1 2 3 4 5 6 7 8

Press and release the Input 5 through Input 8 buttons.

The selected buttons light.

Press and release the Output 5 through Output 8 buttons.

The selected buttons light.

Figure 3-33 — Assign inputs and outputs

7

.

Simultaneously press and release the RGBHV button and Audio button. The

switcher exits I/O Group mode.

N

Or, do nothing for approximately 30 seconds. The front panel times out and the

switcher exits

I/O Group mode.

• Group 1 consists of inputs 1 through 4 and outputs 1 through 4.
• Group 2 consists of inputs 5 through 8 and outputs 5 through 8.
