2-3

MVX Plus 128 VGA A Matrix Switcher • Installation

PRELIMINAR

Y

Rear Panel Cabling and Views

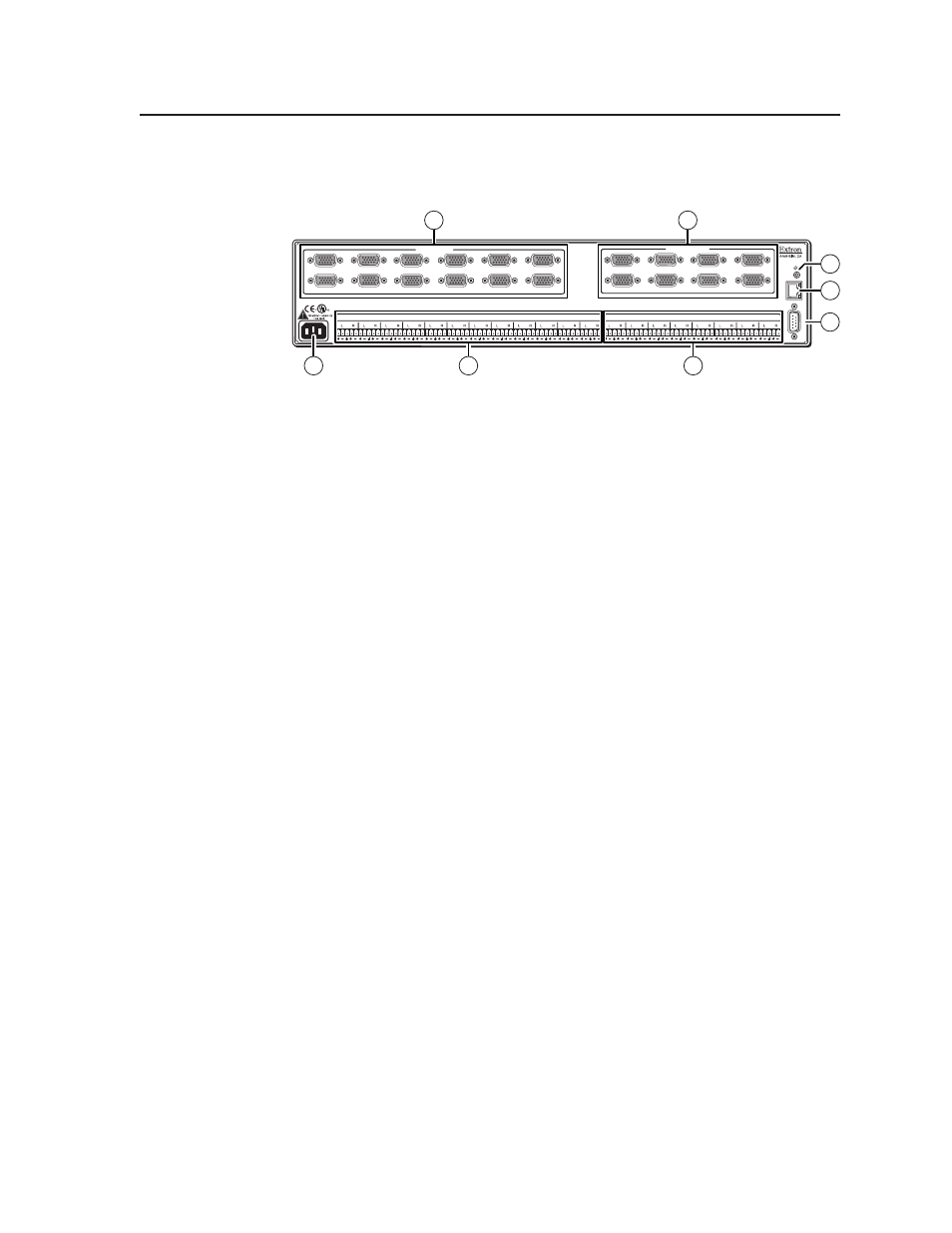

Figure 2-1 shows the MVX Plus 128 VGA A.

COMPUTER IN

COMPUTER OUT

RS232/RS422

REMO

TE

LISTED

1T23

I.T.E.

1

2

3

4

5

6

7

8

9

10

11

12

LA

N

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

9

10

11

12

1

2

3

4

5

6

7

8

INPUTS

OUTPUTS

RESET

8

6

7

5

1

2

4

3

REMO

TE

Figure 2-1 — MVX Plus 128 VGA A video and audio matrix switcher

C

Use Electrostatic discharge precautions (be electrically grounded)
when making connections. Electrostatic discharge (ESD) can damage
equipment, even if you cannot feel, see, or hear it.

C

Remove system power before making all connections.

Video connections

N

The switcher does not alter the video signal in any way. The signal output by

the switcher is in the same format as the input.

N

The MVX Plus 128 switcher can also switch RGBS, RGsB, RsGsBs, component

video, S-video, or composite video by using the appropriate adapters.

a

RGB video inputs — Connect the analog computer-video sources to these

15-pin HD female connectors.

N

Most laptop or notebook computers have an external video port, but they

require special commands to output the video to that connector. Also, a laptop’s
screen shuts off once the external video port is activated. See the computer’s
user’s guide for details, or contact Extron for a list of common laptop keyboard
commands.

b

RGB video outputs — Connect RGBHV video displays to these 15-pin HD

female connectors for each output.
