2-7 MVX Plus 128 VGA A Matrix Switcher • Installation
PRELIMINAR
Y
Clip Down Side
1
1&2
3&6 4&5
7&8
2345678
1 Pins 2345678 RJ-45
connector
Patch (straight) cable
Twisted
Pairs
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

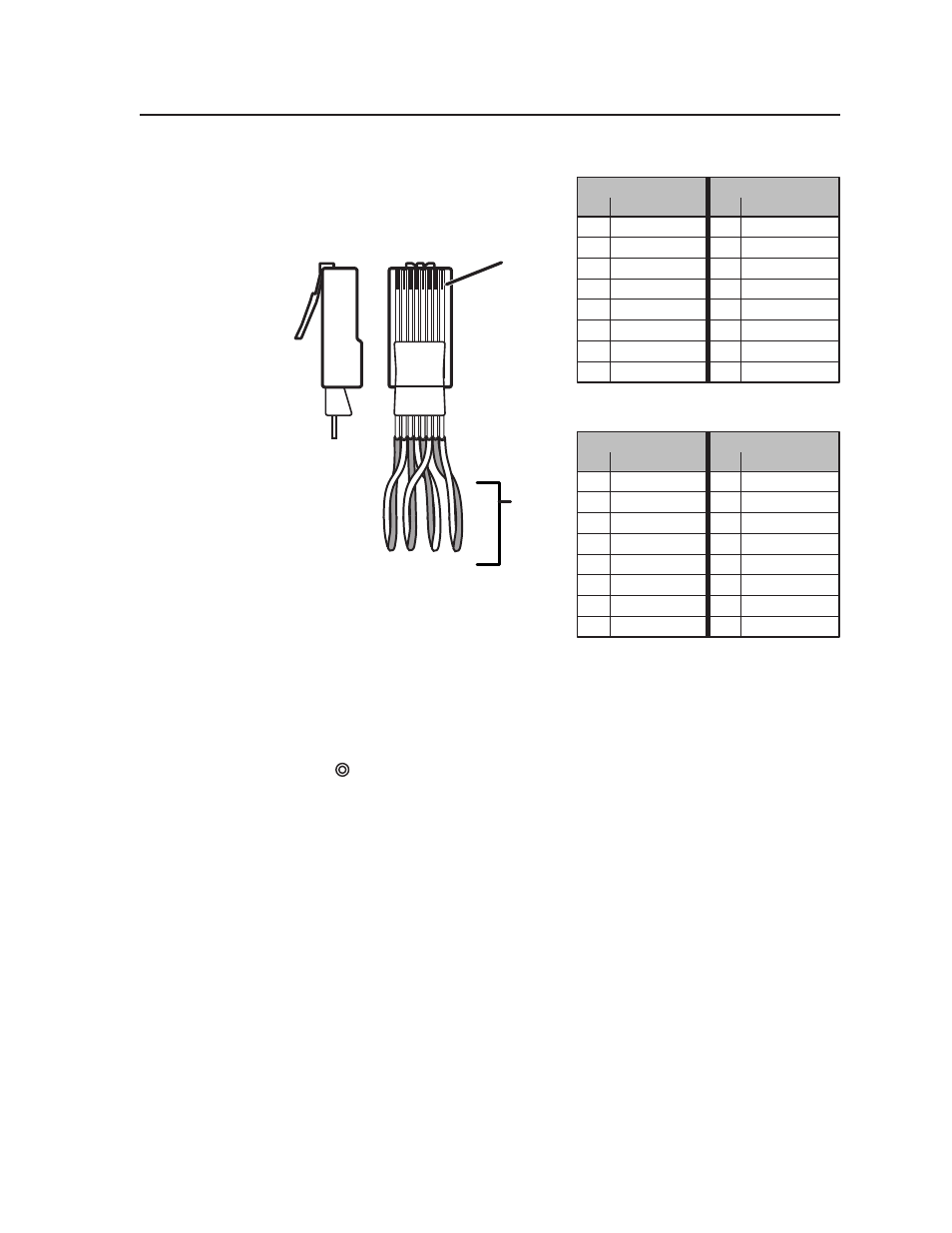

Figure 2-6 — RJ-45 connector and pinout tables
Reset button
g
Reset button — The Reset button initiates four levels of reset to the matrix
switcher. For two different reset levels, press and hold the button while
the switcher is running or while you power up the switcher.
See “Rear Panel Controls” in chapter 3, “Operation”, for details.
• Events (mode 3) reset — Hold Reset for 3 seconds, then release it and push
it again to toggle events monitoring on and off.
• IP settings (mode 4) reset — Hold Reset for 6 seconds, then release it and
push it again to reset the switcher’s IP functions.
N The IP settings reset does not replace any user-installed firmware.
• Absolute (mode 5) reset — Hold Reset for 9, seconds then release it and
push it again to restore the switcher to the default factory conditions.
• Hard reset — Hold Reset while powering up the switcher to restore the
switcher to the default factory conditions.
N Hard reset does not clear the current configuration.
Power connection
h
AC power connector — Plug a standard IEC power cord into this connector to
connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.
