6-19

MVX Plus 128 VGA A Matrix Switcher • HTML Operation

PRELIMINAR

Y

Global Presets page

You can save and recall global presets from the Global presets page (figure 6-20).

Access the Global presets page by clicking the Global Presets link on the left of the

Control page.

Select RGB & Audio Settings.

Refresh.

Select Set & View Ties.

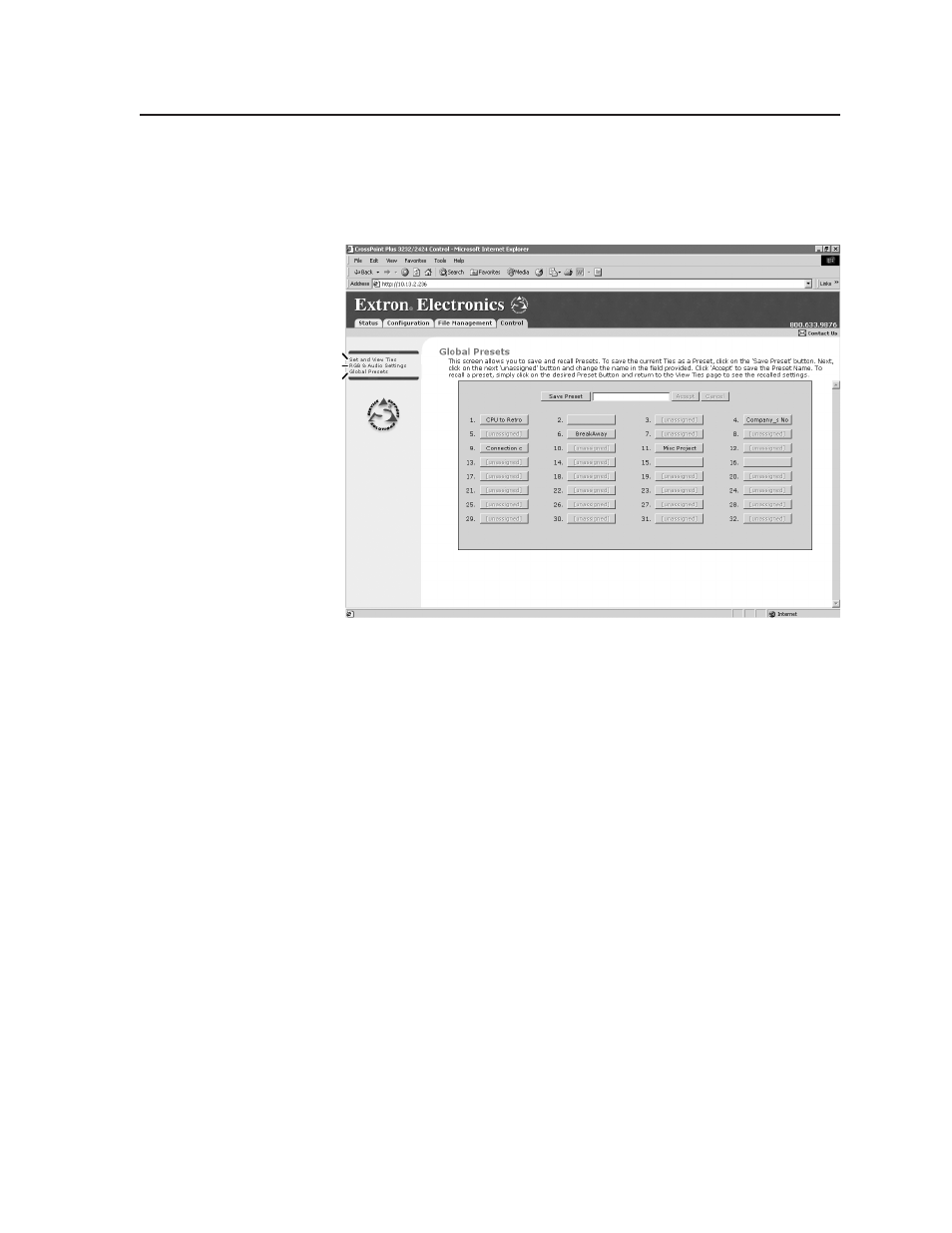

Figure 6-20 Global Presets page

Saving a preset

Save the current configuration (configuration 0) as a preset as follows:

1

.

Click the Save Preset button.

2

.

Select the desired preset by clicking on one of the presets listed. To create a

new preset, click one of the [unassigned] buttons. Overwrite an existing

preset by clicking an already existing preset.

3

.

If desired, type over the current name in the box adjacent to the Save Preset

button.

N

Preset names are limited to 12 upper and lower case alphanumeric characters

and the {space} _ and / characters.

N

The following characters are invalid in preset names:

+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

If you do not rename an unassigned button, the MVX Plus 128 VGA A

switcher names the preset as Preset {next available number}.

If you do not rename an existing preset when it is overwritten, the

MVX Plus 128 VGA A switcher retains the same name.

4

.

Click the Accept button.

Recalling a preset

To recall a global preset to be the current configuration, click the button associated

with the desired preset.
