6-9

MVX Plus 128 VGA A Matrix Switcher • HTML Operation

PRELIMINAR

Y

Email Settings page

Reach the Email Settings page (figure 6-7) by clicking the Email Settings link on the

System Configuration page. The Email Settings page has fields for setting up the

switcher’s e-mail notification capabilities. For the e-mail settings and for each row

of the e-mail notification settings, click the Edit button to make the fields available

for editing. The button changes to Save. After editing the settings associated with

the Edit/Save button, click the Save button.

Refresh.

Select Firmware Upgrade.

Select System Configuration.

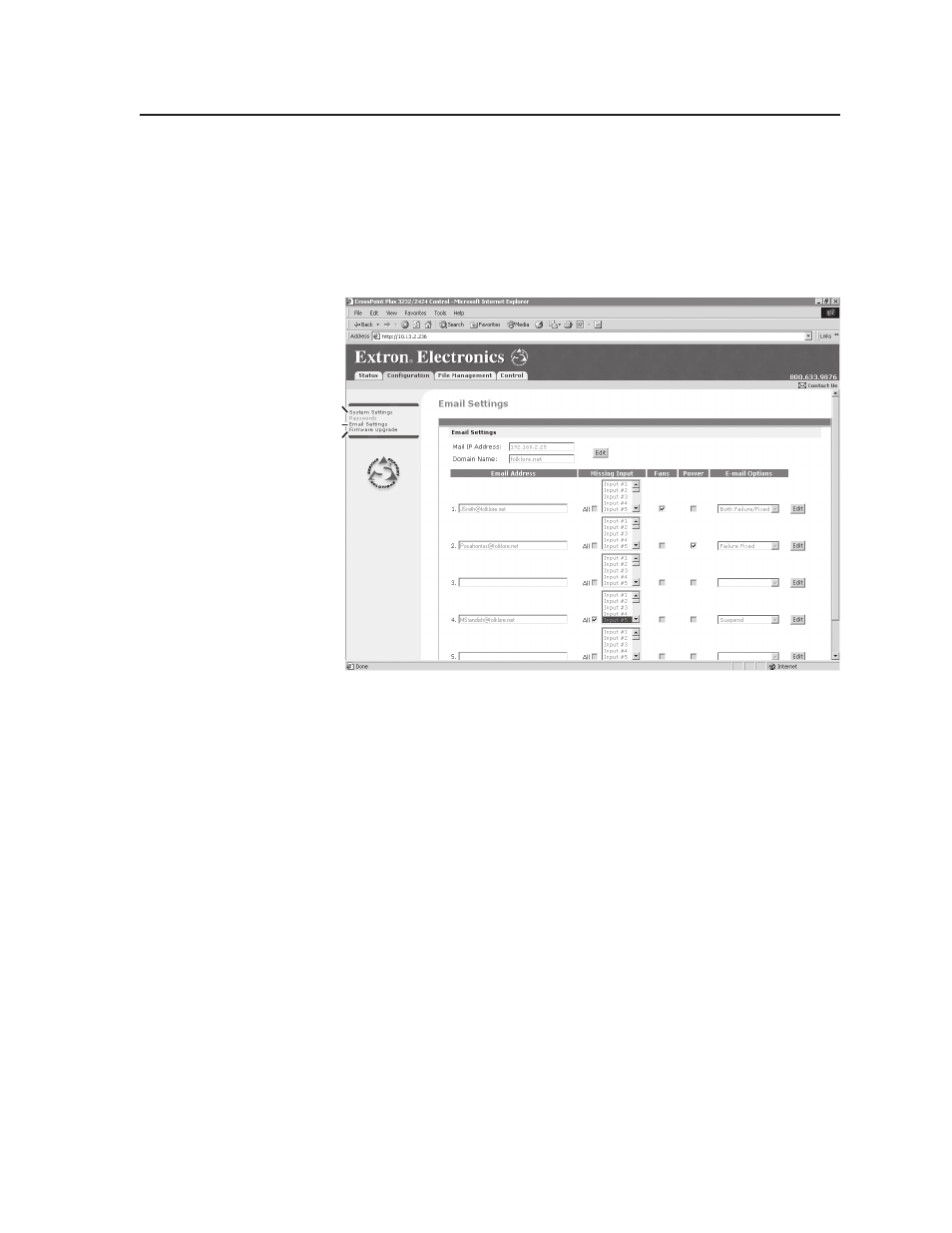

Figure 6-7 Email Settings page

Mail IP Address field

The Mail IP Address field displays the IP address and the domain name of the mail

server that handles the e-mail for the facility in which the MVX Plus 128 VGA A

switcher is installed.
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric octets separated by dots

(periods). Each field can be numbered from 000 through 255. Leading zeroes, up to

three digits total per field, are optional. Values of 256 and above are invalid.

Domain Name field

The Domain Name field displays the domain name that the MVX Plus 128 VGA A

switcher uses to log on to the e-mail server. Standard domain name conventions

(for example: nnnnn@xxx.com) apply.

N

The following characters are invalid in a domain name:

{space} + ~ , = ‘ [ ] { } < > ’ “ ; : | \ and ?. The @ character is
acceptable only as the lead-in to the domain name (such as @folklore.net).
