Matrix Software, cont’d
MVX Plus 128 VGA A Matrix Switcher • Matrix Software 5-14
PRELIMINAR
Y
Ethernet-connected firmware upload

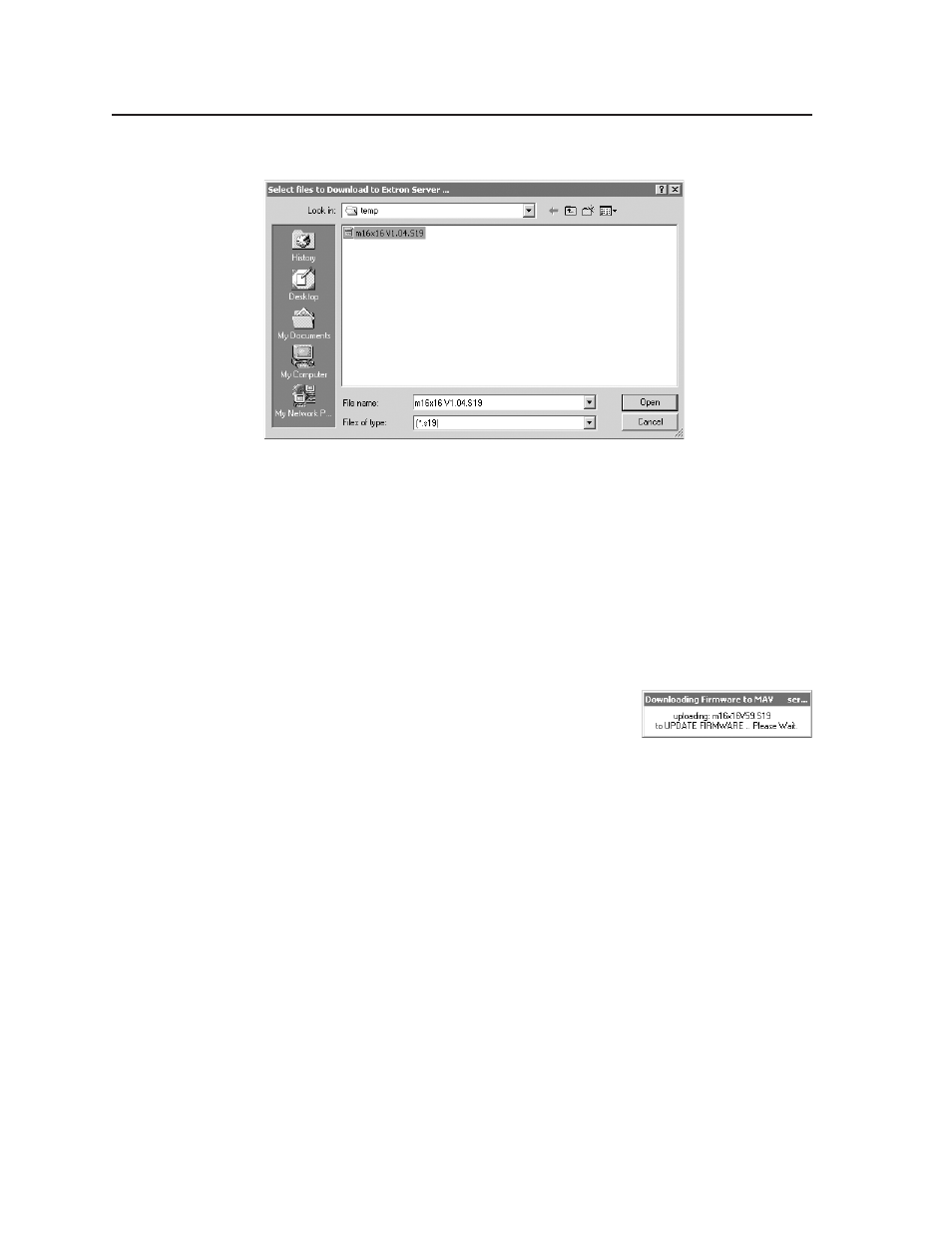

Figure 5-10 — Select file window
6 . Navigate to the folder where you saved the firmware upgrade file. Select the
file.
N Valid firmware files must have the file extension .S19. Any other file extension
is not a firmware upgrade.
N The original factory-installed firmware is permanently available on the
MVX Plus 128 VGA A switcher. If the attempted firmware upload fails for any
reason, the switcher reverts to the factory-installed firmware.
7. Click the Open button. The software advises you that you are about to
reprogram the switcher’s firmware. Click OK to continue.
A status window, which shows the progress of
the upload, appears. The firmware upload to the
MVX Plus 128 VGA A switcher may take a few
minutes.
