Operation, cont’d

MVX Plus 128 VGA A Matrix Switcher • Operation

3-28

PRELIMINAR

Y

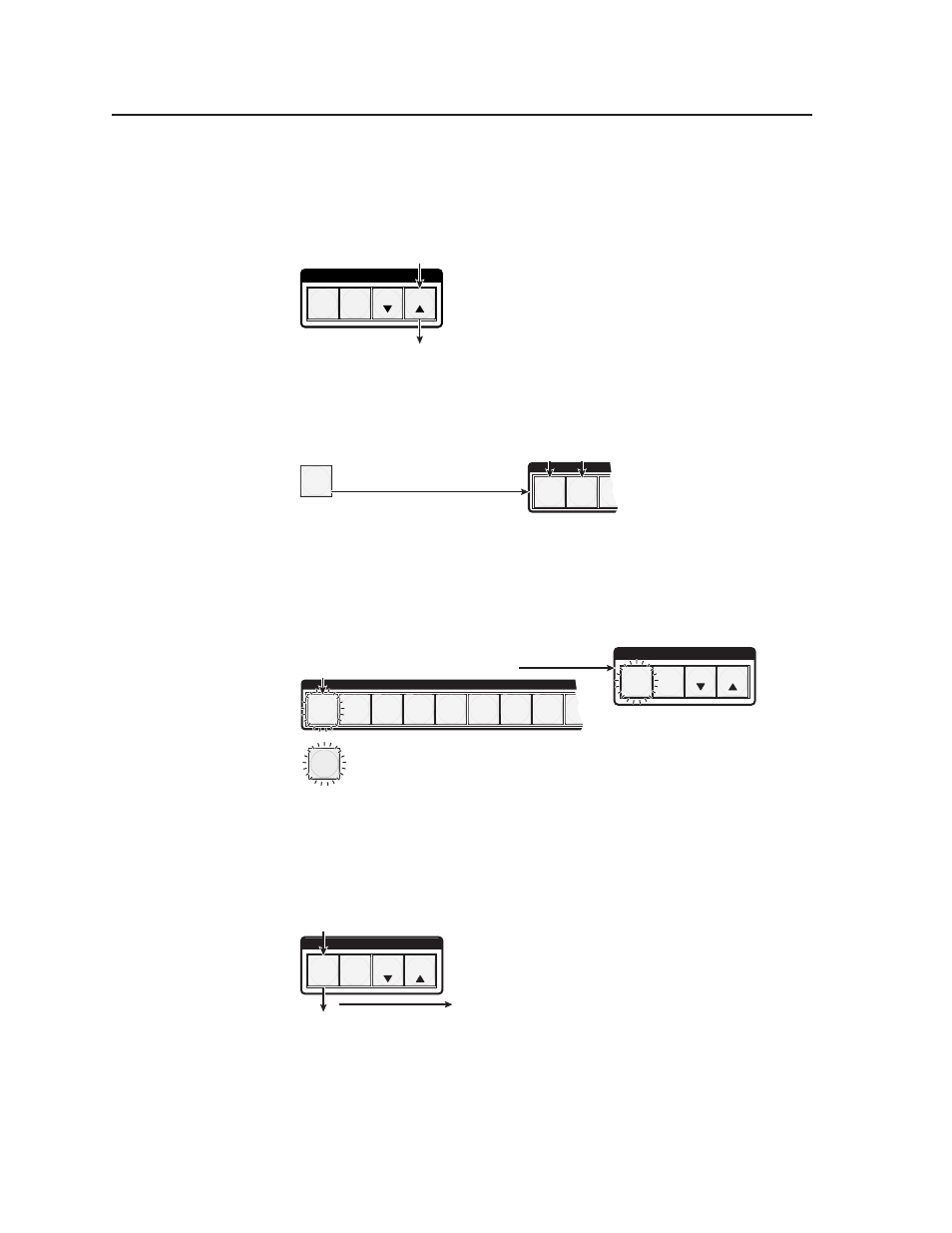

Example 8: Recalling a preset

In the following example, a preset is recalled to become the current configuration.

The steps show the front panel indications that result from your action.

1

.

Press and release the Esc button (figure 3-44).

C O N T R O L

PRESET

ENTER

ESC

VIEW

Press the Esc button to clear all selections.

The button flashes once.

Figure 3-44 — Clear all selections

2

.

Press and release the Preset button (figure 3-45).

PRESET

1 2 3

Press and release the Preset button.
The Preset button lights.

All input buttons with

assigned presets light red.

Red

(Preset Assigned)

Figure 3-45 — Enter Recall Preset mode

3

.

Press and release the input or output button for the desired preset

(figure 3-46).

C O N T R O L

PRESET

ENTER

ESC

VIEW

INPUTS

1 2 3 4 5 6 7 8 9

Press and release the Input 1 button.
The button blinks

red to indicate that this

preset number is selected but not recalled.

The Enter button blinks
to indicate the need to
recall the preset.

= Blinking button

Figure 3-46 — Select the preset

4

.

Press and release the Enter button (figure 3-47). The configuration stored in

the selected memory location is now the current configuration and can be

viewed in the View-only mode (see example 4).

C O N T R O L

PRESET

ENTER

ESC

VIEW

The Enter and Preset
buttons return to unlit or
background illumination.

Press the Enter button to
recall the preset.

All

input buttons and output

buttons return to unlit or
background illumination.

Figure 3-47 — Press the Enter button
