MVX Plus 128 VGA A Matrix Switcher • Ethernet Connection A-2
Ethernet Connection
PRELIMINAR
Y
Ethernet Link
The rear panel Ethernet connector on the
MVX Plus 128 VGA A switcher can be connected to an
Ethernet LAN or WAN. This connection makes SIS control
of the switcher possible using a computer connected to the
same LAN.
Ethernet connection
The Ethernet cable can be terminated as a straight-through cable or a crossover
cable and must be properly terminated for your application (figure A-1).
• Crossover cable — Direct connection between the computer and the
MVX Plus VGA A switcher.
• Patch (straight-through) cable — Connection of the MVX Plus 128 VGA A
switcher to an Ethernet LAN.
Clip Down Side
1
1&2
3&6 4&5
7&8
2345678
1 Pins 2345678 RJ-45
connector
Patch (straight) cable
Twisted
Pairs
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

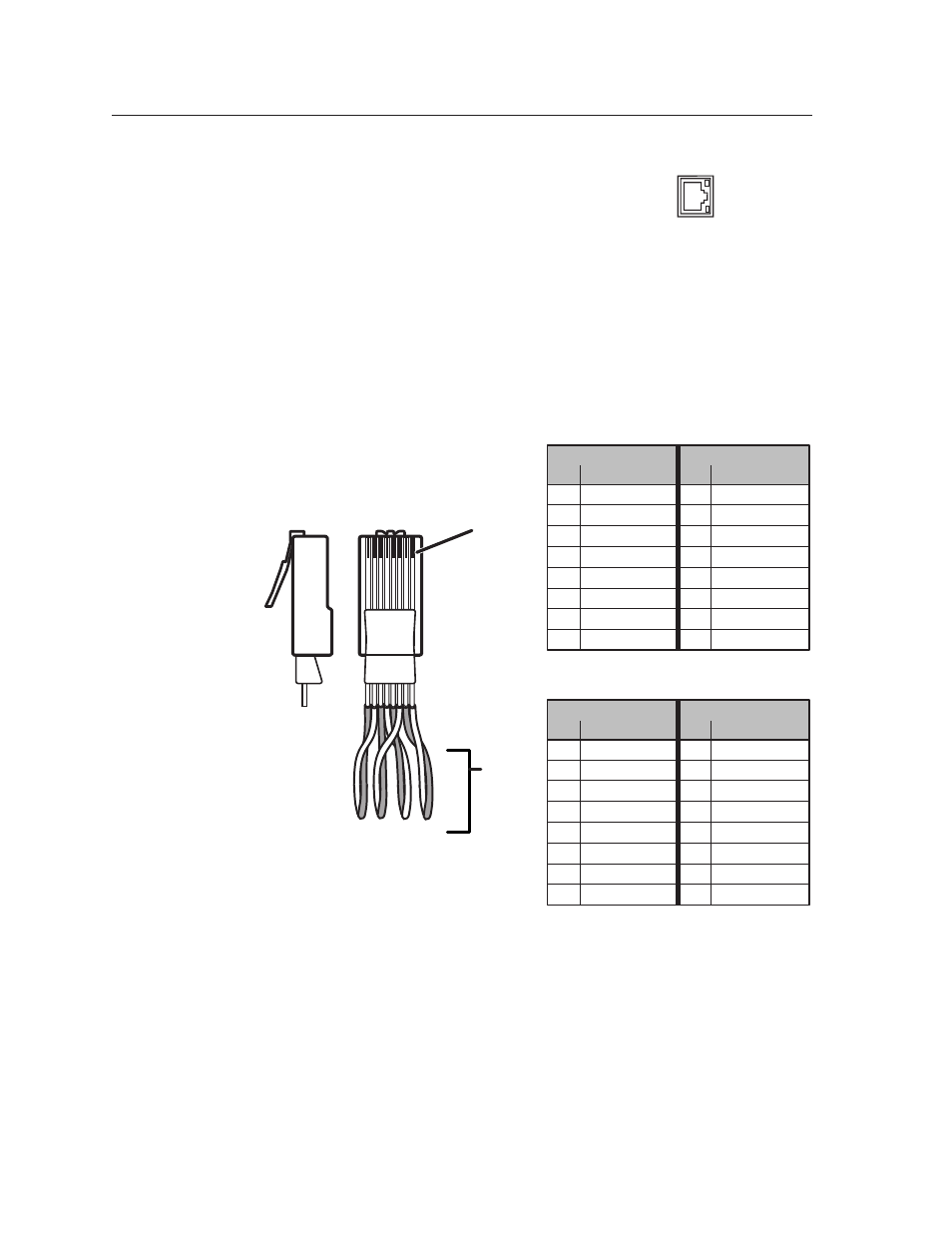

Figure A-1 — RJ-45 connector pinout tables
Default address
To access the MVX Plus 128 VGA A switcher via the LAN port, you need the
switcher’s IP address. If the address has been changed to an address comprised of
words and characters, you can determine the actual numeric IP address using the
Ping utility. If the address has not been changed, the factory-specified default is
192.168.254.254.
Ping can also be used to test the Ethernet link to the MVX Plus 128 VGA A switcher.
