Operation, cont’d

MVX Plus 128 VGA A Matrix Switcher • Operation

3-18

PRELIMINAR

Y

N

You can also view a set of ties by selecting a tied output. To demonstrate this,

note the number of a lit output button, and then press and release the output
button for an untied (unlit or background illumination) output. Observe that
all of the untied outputs light. Then press the output button that you noted
previously and observe that the selected output button, the tied input button
(input 5), and the output buttons light for all of the outputs that are tied to the
input.

5

.

Press and release the RGBHV button to deselect RGBHV (figure 3-24).

I / O

VIDEO AUDIO

OUTPUTS

1 2 3 4 5 6 7 8

Press the RGBHV

button to deselect it.

The button is unlit or

background illuminated

when deselected.

The Audio button
remains lit

red to

indicate that only

audio

is selected.

Red

Red

The output buttons for outputs that

are not tied to input 5

are either unlit or background illuminated.

The output buttons for outputs that

are tied to input 5

light

red to indicate audio ties (audio breakaway).

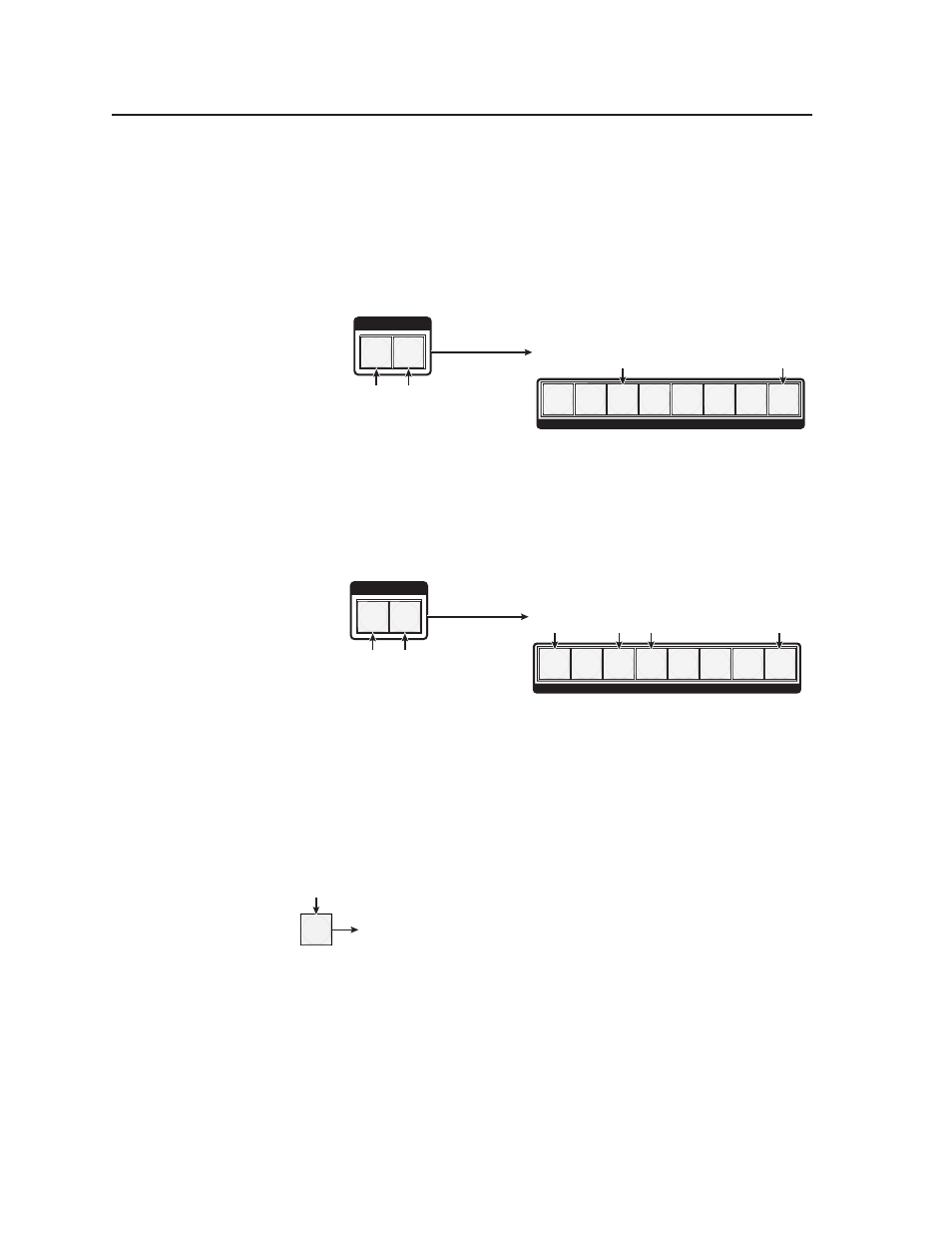

Figure 3-24 — Deselect RGBHV to view audio ties only

6

.

Press and release the RGBHV button and the Audio button to toggle the

RGBHV button on green and the Audio button either unlit or providing

background illumination (figure 3-25).

I / O

VIDEO AUDIO

OUTPUTS

1 2 3 4 5 6 7 8

Green Green

Green

Green

The output buttons for outputs that

are not tied to input 5

are either unlit or background illuminated.

The output buttons for outputs that

are tied to input 5 light

green to indicate RGBHV/Video ties (audio breakaway).

Press the RGBHV

button to select it.

The button lights

green when selected.

Press the Audio button to
deselect it.
The button is

unlit or

background illuminated
when deselected.

Figure 3-25 — Deselect audio and select RGBHV to view RGBHV only

If video ties are established for input 5, the output buttons light green for all

video outputs tied to input 5. If no ties are established for input 5, all output

buttons return to either unlit or to background illumination.

7

.

Press and release the View button to exit View-only mode (figure 3-26).

VIEW

All

input buttons and output buttons

return to unlit or background illumination.

Press the View button
to exit View-Only mode.

The View button returns to
unlit or background
illumination.

Figure 3-26 — Press the View button to exit View-only mode
