GS-4012F/4024 User’s Guide
88 Chapter 8 VLAN

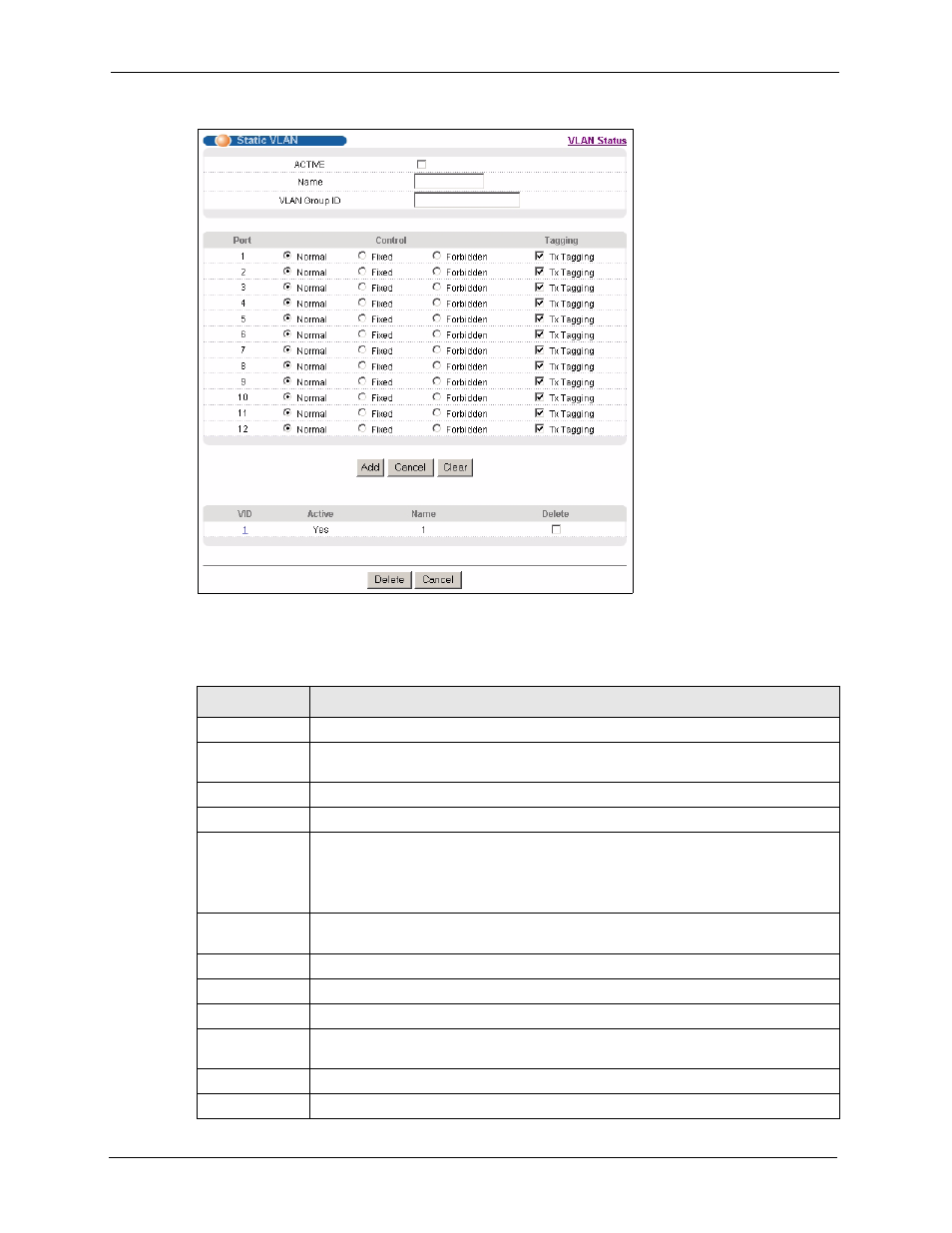

Figure 35 VLAN: Static VLAN
The following table describes the related labels in this screen.
Table 15 VLAN: Static VLAN
LABEL DESCRIPTION
ACTIVE Select this check box to activate the VLAN settings.
Name Enter a descriptive name (up to 12 printable ASCII characters) for the VLAN group
for identification purposes.
VLAN Group ID Enter the VLAN ID for this VLAN group; the valid range is between 1 and 4094.
Port The port number identifies the port you are configuring.
Control Select Normal for the port to dynamically join this VLAN group using GVRP. This is
the default selection.
Select Fixed for the port to be a permanent member of this VLAN group.
Select Forbidden if you want to prohibit the port from joining this VLAN group.
Tagging Select TX Tagging if you want the port to tag all outgoing frames (that were
previously untagged) transmitted with this VLAN Group ID.
Add Click Add to add the settings as a new entry in the summary table below.
Cancel Click Cancel to reset the fields.
Clear Click Clear to start configuring the screen again.
VID This field displays the ID number of the VLAN group. Click the number to edit the
VLAN settings.
Active This field indicates whether the VLAN settings are enabled (Yes) or disabled (No).
Name This field displays the descriptive name for this VLAN group.
