GS-4012F/4024 User’s Guide
Chapter 3 Hardware Overview 45
• Type: SFP connection interface
• Connection speed: 1 Gigabit per second (Gbps)
Note: To avoid possible eye injury, do NOT look into an operating fiber-optic module’s
connectors.
3.1.3.1 Transceiver Installation
Use the following steps to install a mini-GBIC transceiver (SFP module).
1 Insert the transceiver into the slot with the exposed section of PCB board facing down.

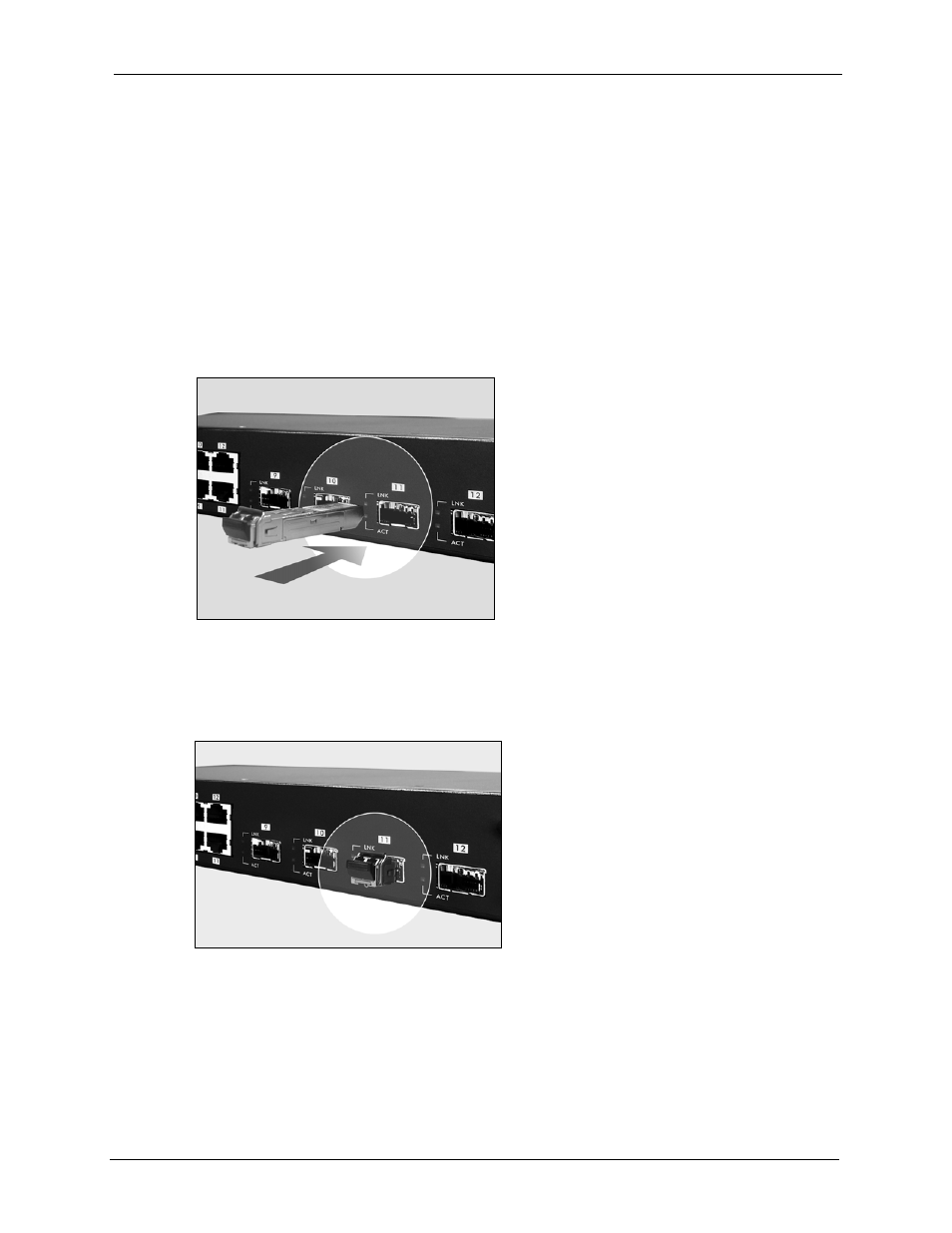

Figure 11 Transceiver Installation Example
2 Press the transceiver firmly until it clicks into place.
3 The switch automatically detects the installed transceiver. Check the LEDs to verify that
it is functioning properly.
Figure 12 Installed Transceiver
3.1.3.2 Transceiver Removal
Use the following steps to remove a mini-GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
