GS-4012F/4024 User’s Guide

Chapter 5 Initial Setup Example

61

5.1.3 Creating a VLAN

VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members.

In this example, you want to configure port 10 as a member of VLAN 2.

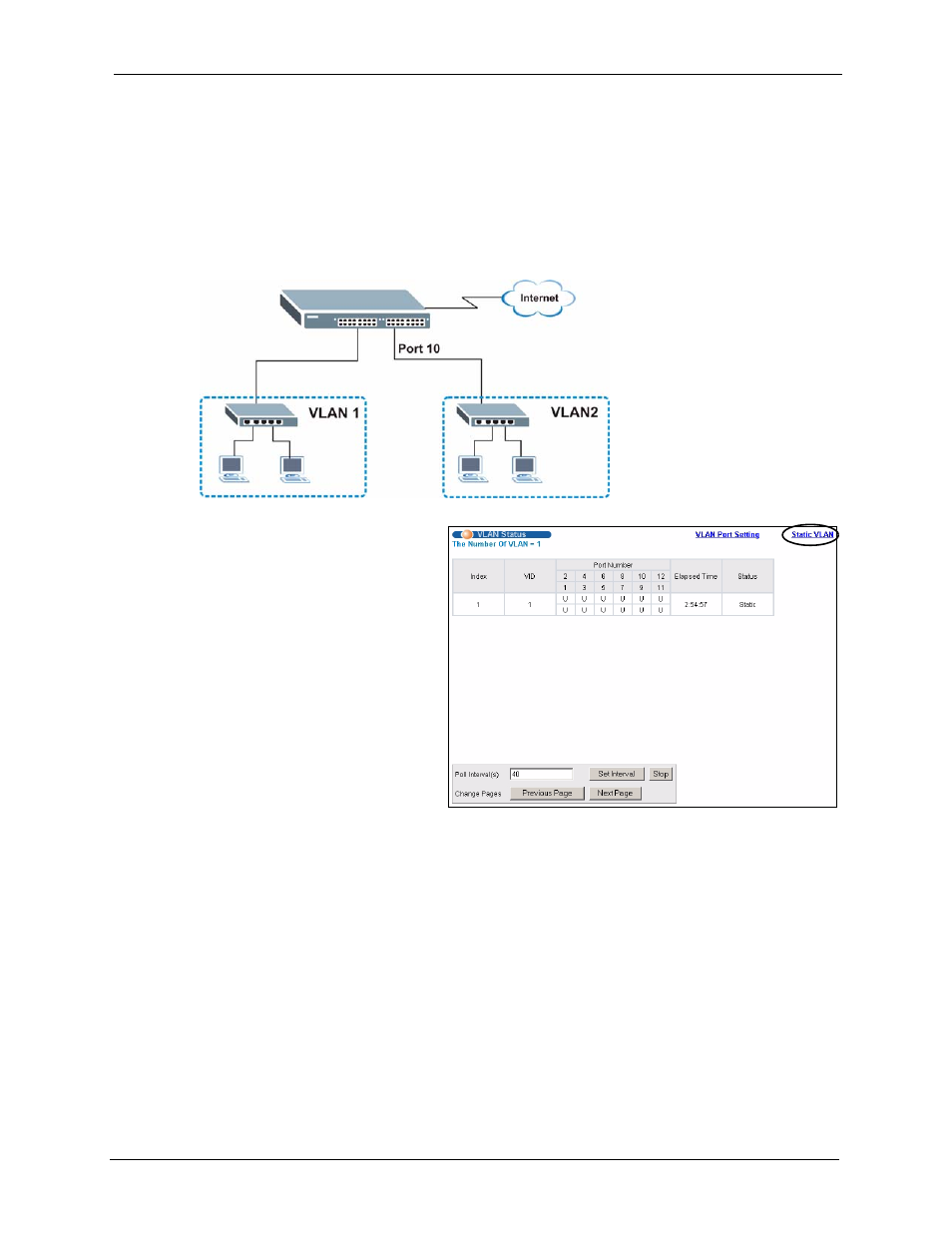

Figure 23 Initial Setup Network Example: VLAN

1 Click Advanced

Application and VLAN in
the navigation panel and
click the Static VLAN link.
