GS-4012F/4024 User’s Guide
104 Chapter 12 Bandwidth Control

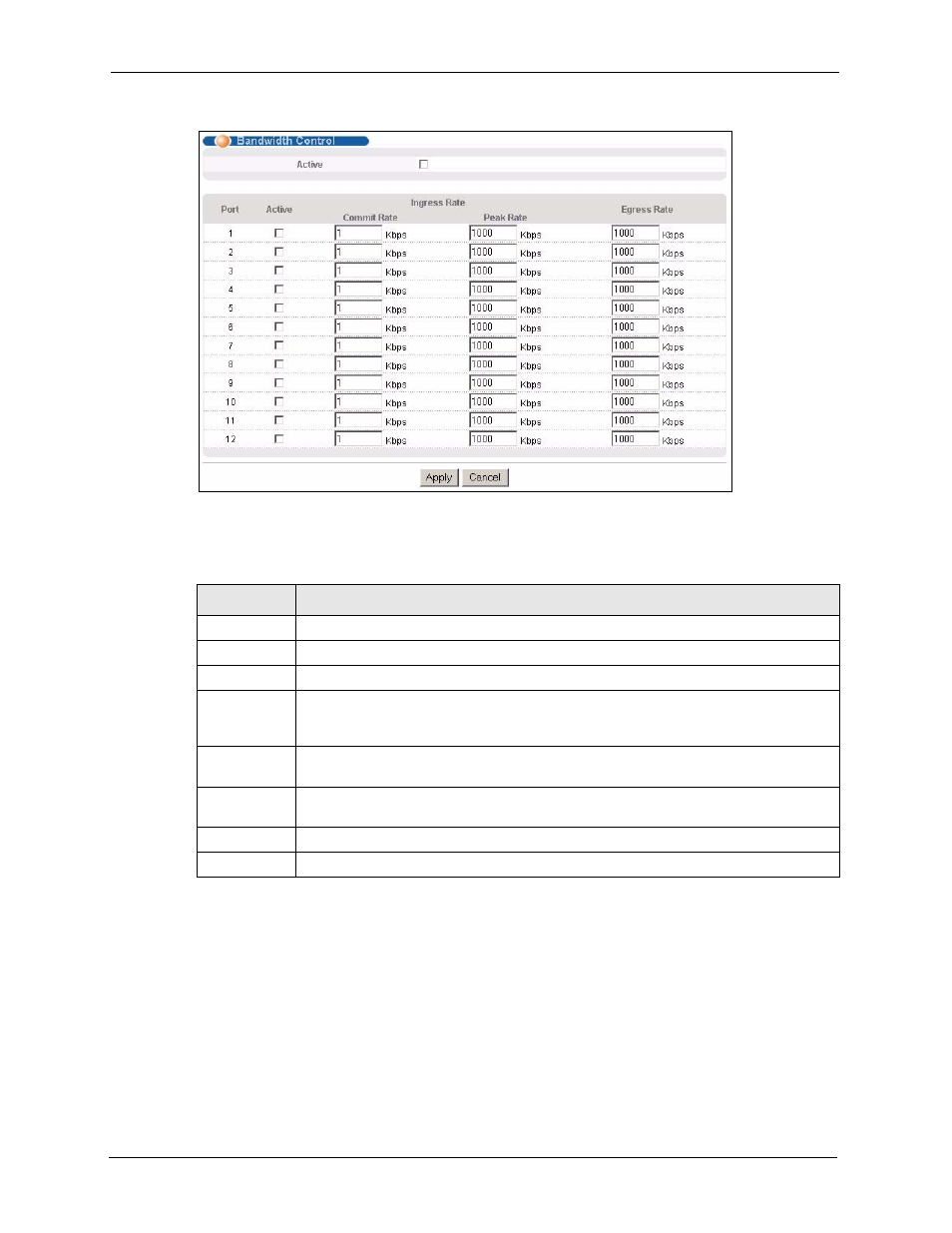

Figure 43 Bandwidth Control
The following table describes the related labels in this screen.
Table 24 Bandwidth Control
LABEL DESCRIPTION
Active Select this check box to enable bandwidth control on the switch.
Port This field displays the port number.
Active Make sure to select this check box to activate bandwidth control on a port.
Commited
Rate
Specify the guaranteed bandwidth allowed in kilobits per second (Kbps) for the
incoming traffic flow on a port. The commit rate should be less than the peak rate. The
sum of commit rates cannot be greater than or equal to the uplink bandwidth.
Peak Rate Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the incoming
traffic flow on a port.
Egress Rate Specify the maximum bandwidth allowed in megabits per second (Mbps) for the out-
going traffic flow on a port. Enter a number between 1 and 1000.
Apply Click Apply to save the settings.
Cancel Click Cancel to reset the fields to your previous configuration.
