GS-4012F/4024 User’s Guide
Chapter 5 Initial Setup Example 63

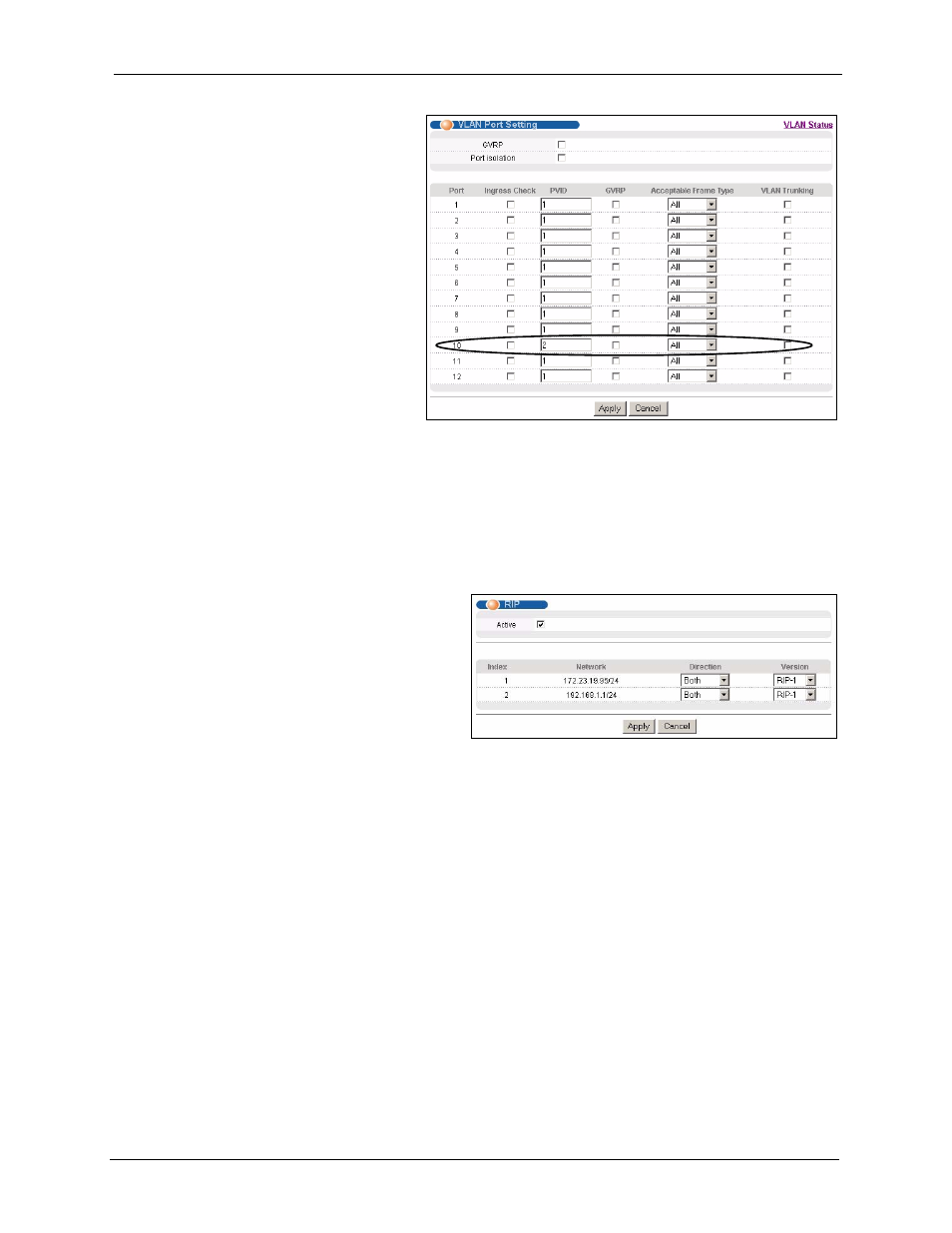

1 Click Advanced
Applications and VLAN
in the navigation panel.
Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID field
for port 10 and click
Apply to save the
settings.
5.1.5 Enabling RIP
To exchange routing information with other routing devices across different routing domains,
enable RIP (Routing Information Protocol) in the RIP screen.
1 Click IP Application and RIP in the navigation panel.
2 Select Both in the Direction field
to set the switch to broadcast and
receive routing information.
3 In the Version field, select RIP-1
for the RIP packet format that is
universally supported.
4 Click Apply to save the settings.
