Note: A port can belong to more than one multicast VLAN. However, IP multicast
group addresses in different multicast VLANs cannot overlap.

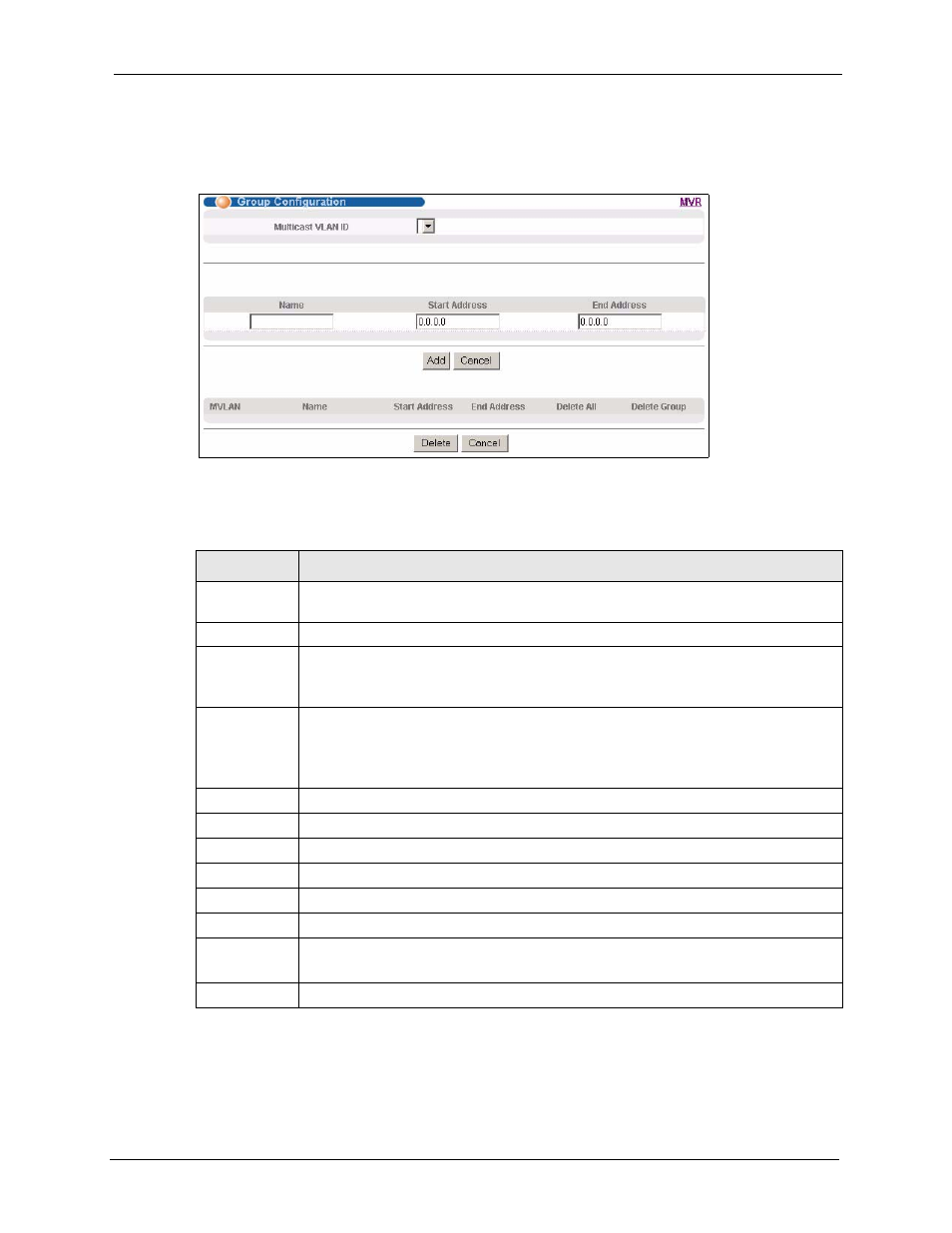

Figure 68 MVR: Group Configuration
The following table describes the labels in this screen.
Table 50 Multicast: Setting: MVR: Group Configuration
LABEL
DESCRIPTION
Multicast
VLAN ID
Select a multicast VLAN ID (that you configured in the MVR screen) from the drop-
down list box.
Name
Enter a descriptive name for identification purposes.
Start Address
Enter the starting IP multicast address of the multicast group in dotted decimal
notation.
Refer to
for more information on IP multicast addresses.
End Address
Enter the ending IP multicast address of the multicast group in dotted decimal notation.
Enter the same IP address as the Start Address field if you want to configure only one
IP address for a multicast group.
Refer to
for more information on IP multicast addresses.
Add
Click Add to save the settings.
Cancel Click
Cancel to discard all changes.
MVLAN
This field displays the multicast VLAN ID.
Name
This field displays the descriptive name for this setting.
Start Address
This field displays the starting IP address of the multicast group.
End Address
This field displays the ending IP address of the multicast group.
Delete Select
Delete All and click Delete to remove all entries from the table.
Select Delete Group and click Delete to remove the selected entry(ies) from the table.
Cancel Select
Cancel to clear the checkbox(es) in the table.
