GS-4012F/4024 User’s Guide
Chapter 14 Mirroring 107
C
H A P T E R
14
Mirroring
This chapter shows you how to configure mirroring on the switch.
14.1 Overview
Port mirroring allows you to copy traffic going from one or all ports to another or all ports in
order that you can examine the traffic from the mirror port (the port you copy the traffic to)
without interference.
14.2 Port Mirroring Configuration
Click Advanced Application, Mirroring in the navigation panel to display the configuration
screen.
You must first select a monitor port. A monitor port is a port that copies the traffic of another
port. After you select a monitor port, configure a mirroring rule in the related fields

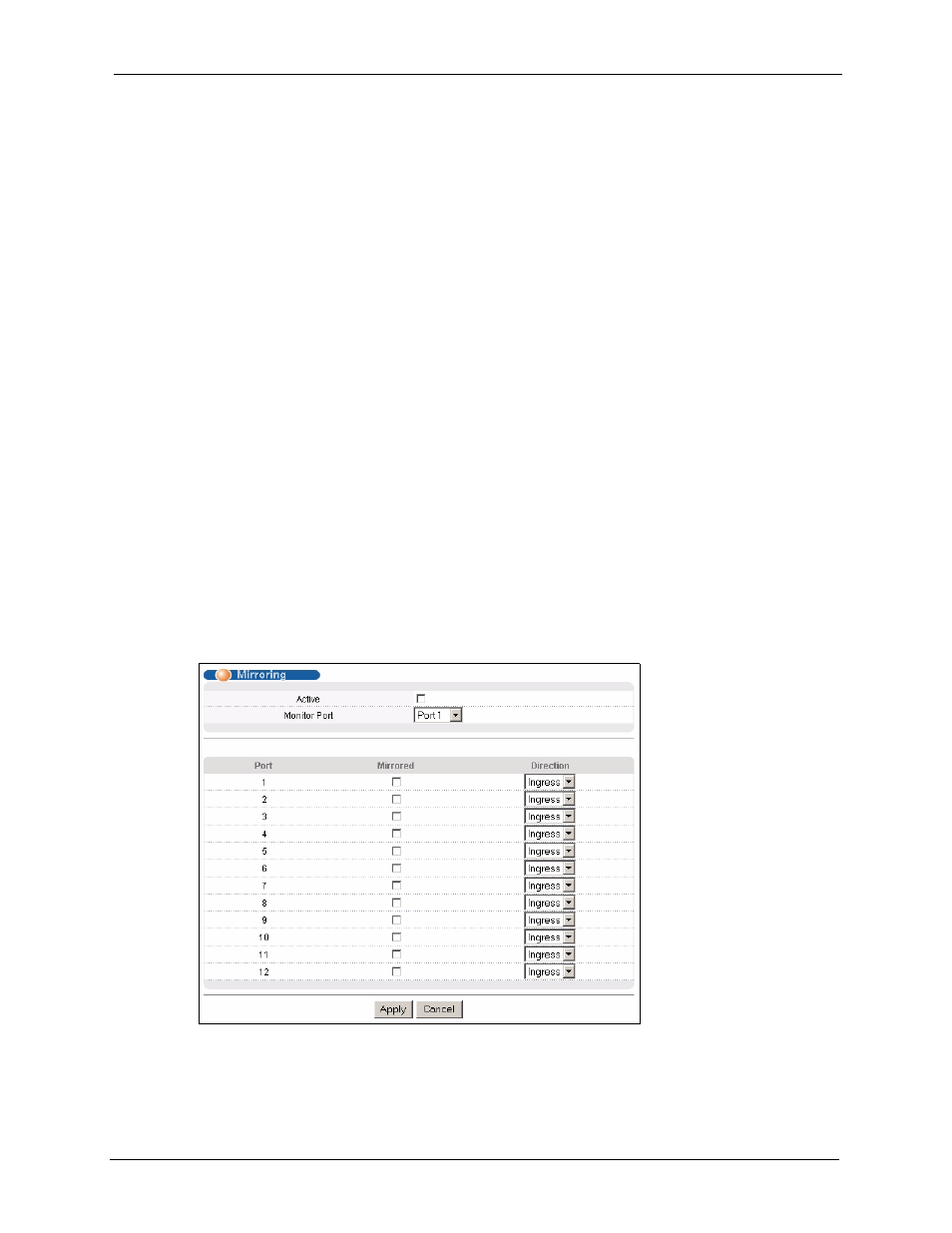

Figure 45 Mirroring
The following table describes the related labels in this screen.
